| Engine | Kubota v3800-t 67.6kw from Japan |
| Steering | The steering is carried out by operating the oil cylinder through the steering gear |
| Air compressor | German rotorcomp 5m³/MIN 15MPa |
| Walking drive braking System | The static hydraulic simultaneous service brake and the hydraulic-driven multi-disc brake are used as the parking brake |
| Marking speed | 3-8 km/h |
| Marking line thickness | Between 1.5 and 3.0mm, it can be applied on roads with high roughness (such as slurry seal roads). |
| Computer | The full touch screen panel enables precise computer control during construction, allowing for continuous line type changes without stopping |
| Cruise mode | The fixed-speed cruise construction mode ensures uniform and stable marking quality |
| Glass bead jar | Pressure-bearing glass bead jar, which can achieve double bead scattering of different specifications |
| Stroke line type | Hot spray, various drainage structure marking lines |

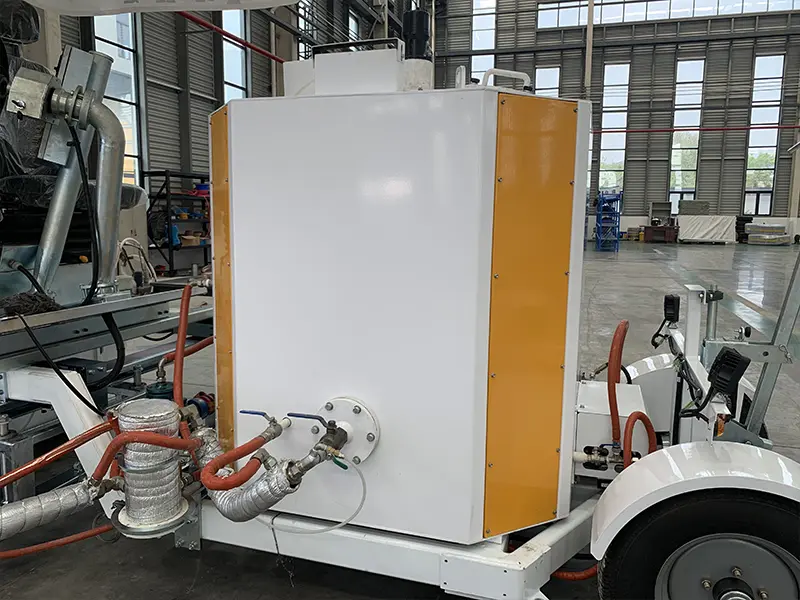

| Built-in hot melt pot | It is equipped with a 1.5-ton hot melt kettle, with heat transfer oil circulating for heating, providing precise heat preservation and temperature control |

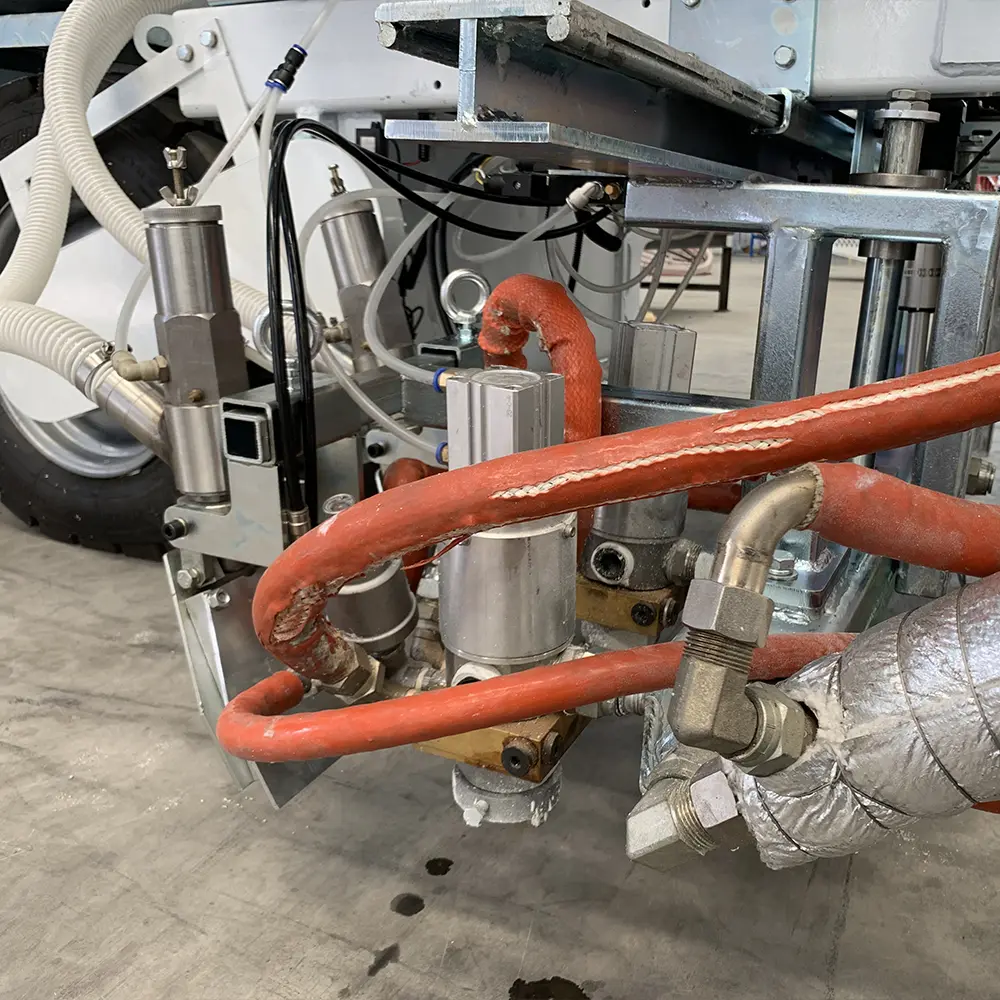

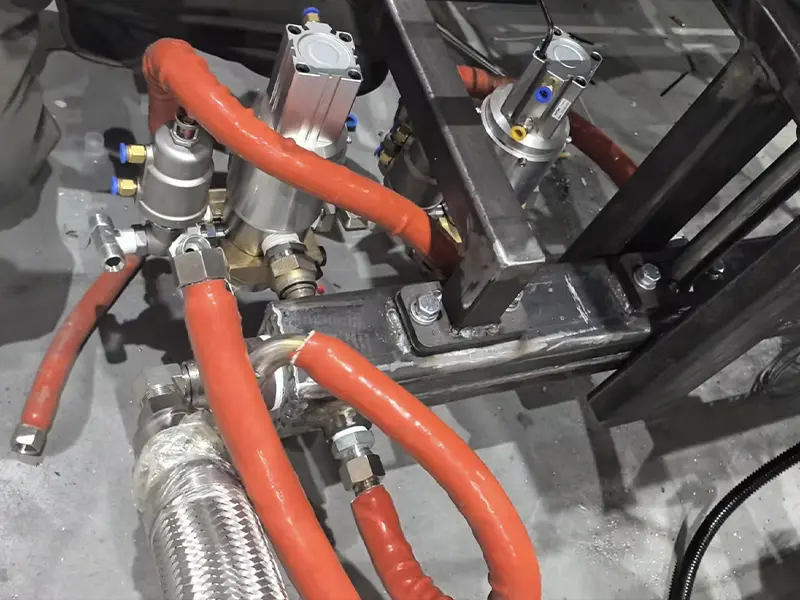

| Construction technology | The pneumatic spraying construction technology features high construction efficiency. It saves paint, has strong adaptability, uniform and fine coating. |
| Capacity of the paint tank | 1.5T |
| Dimensions (L*W*H) | 6.7 * 2.4 * 2.5 m |
| Total weight | 4.25T |
| Tyre | Front wheels: 195R14C; Rear wheels: 225/75R15 |
| Gear pump | 45cc |
| Burner | 3450rpm |
| Heat transfer oil pump | Model 25-25-160 |
