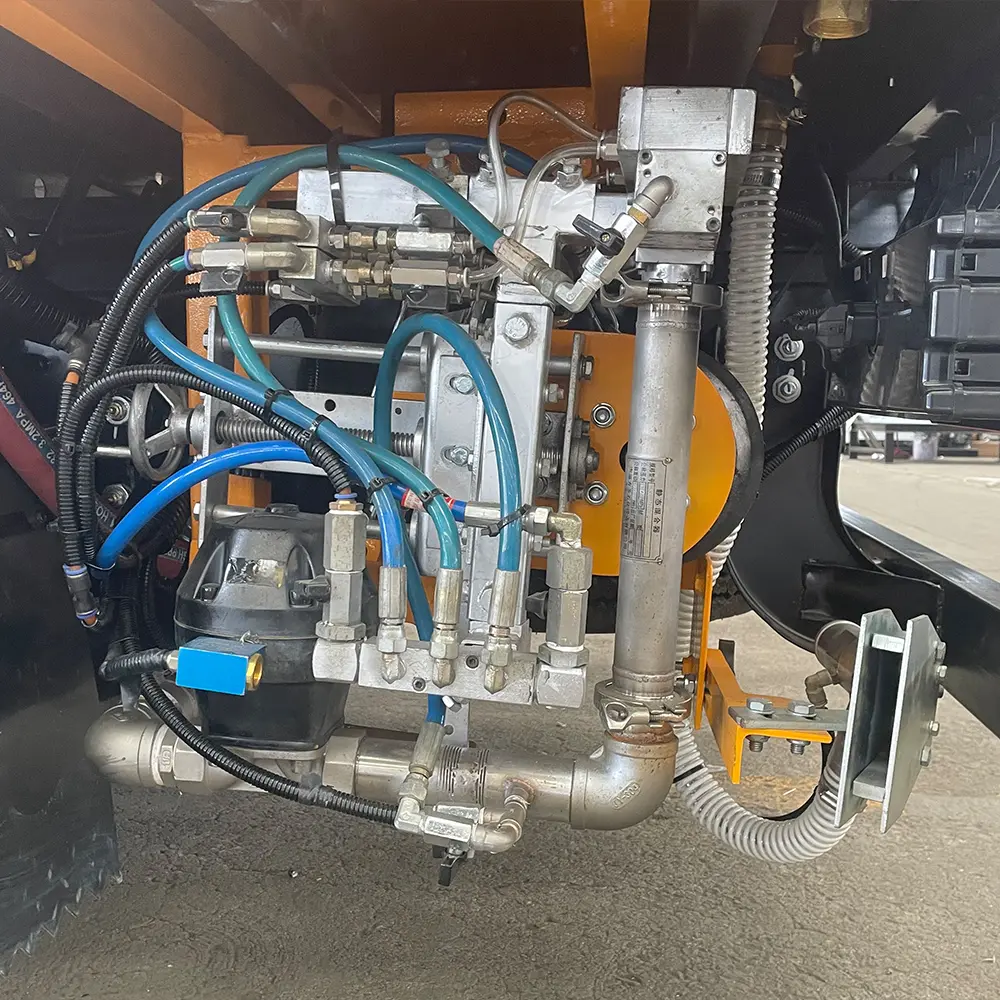

At the very core of this remarkable machine lies an innovative paint mixing system. In tandem with the spray gun system, control system, and traveling mechanism, it guarantees flawless and accurate road marking applications.

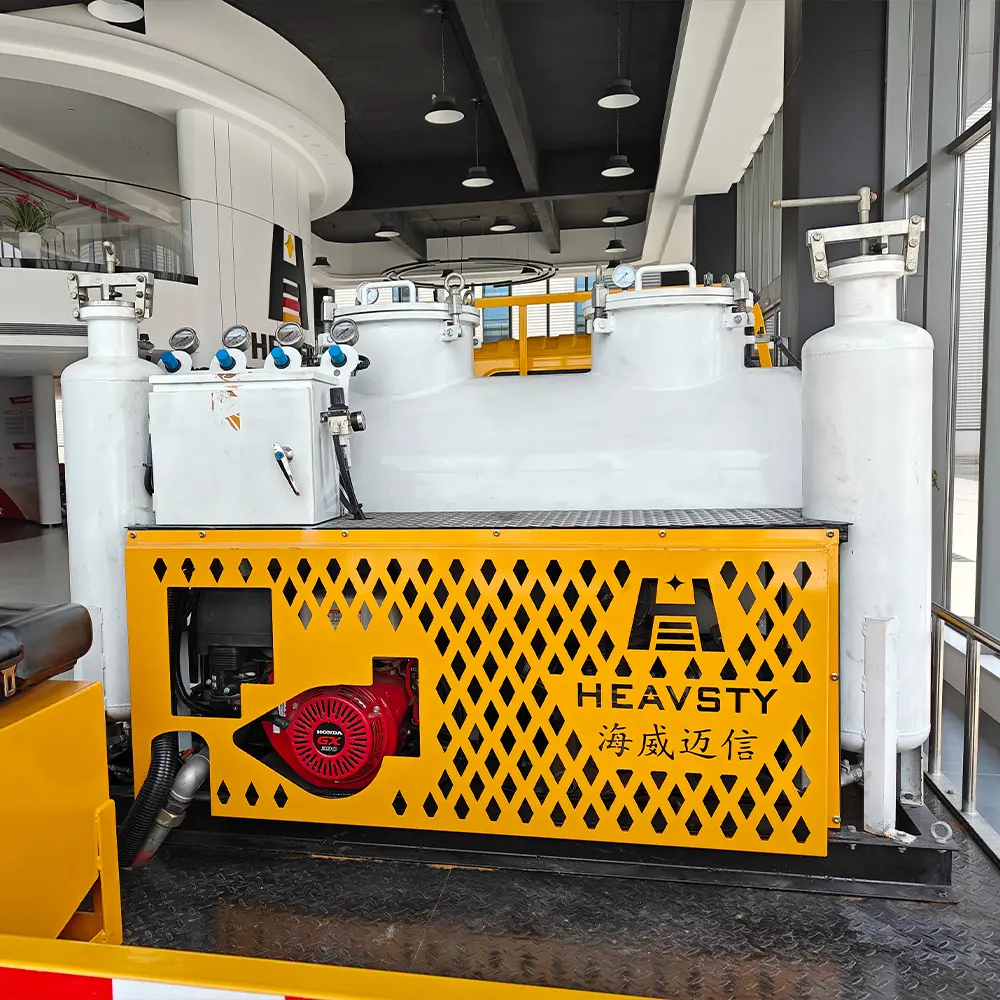

The power source, a Honda - GX270 gasoline engine, is a testament to reliability and efficiency. Boasting a robust 5.5HP output, this engine supplies the necessary power to drive the entire road marking apparatus, ensuring continuous and high-tempo operations.

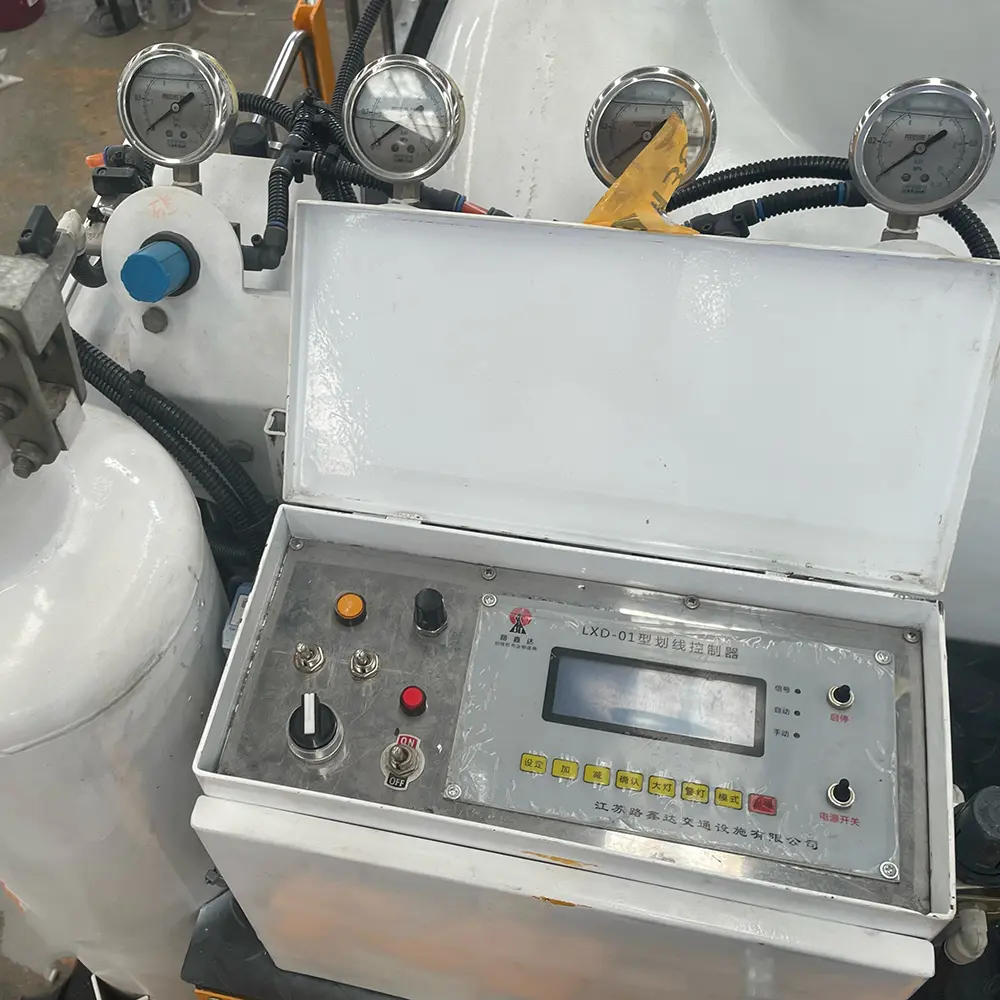

One of the machine's most critical features is its German-imported curing monitoring system, equipped with the state-of-the-art EGE flow electronic controller. It precisely regulates curing parameters to ensure optimal level of hardness and durability for road markings.
The hydraulic travel drive system is engineered for maximum versatility and pinpoint precision, offering an adjustable slow-speed driving function from a crawl to a maximum of 90km/h.
| Component | Specification |
|---|---|
| Engine | Honda - GX270 gasoline engine, 5.5HP |
| Fuel | Gasoline, capacity 2.9L |
| Voltage | 12V, battery 5AH 20AR |
| Compressor | Exhaust volume 0.21nm³/h |
| Working pressure | 0.8PA |
| Curing monitoring system | German - imported, EGE flow electronic controller |
| Motor flow | 80ml |
| Material bucket capacity | Approximately 80kg |
| Curing agent capacity | 40 liters / 4 kg |
| Curing agent pump flow | 1.6L/min |
| Cleaner capacity | 40 liters / 4 kg |
| Maximum material pressure | 5kg |
| Max filler size in materials | 800μ |
| Mixing system | 98:2, fluid with curing agent pump |
| Additional equipment | Electronic jumper control |
| Glass bead equipment | Pneumatic spraying (standard single gun) |
| Marking width | Customizable |
| Travel drive | Hydraulic travel drive system, adjustable slow-speed |
| Travel speed | 0 - 90km/h |
| Truck size | 5.995 * 2.2 * 2.44m |
| Total truck load capacity | 4495kg |
The ability to customize the marking width is a game-changing feature for road marking contractors. Whether they need to create wide, prominent lines for highways or narrow, detailed markings for parking lots, this flexibility empowers them to meet any project's unique requirements.
The glass bead equipment, featuring pneumatic spraying with a standard single-gun setup, plays a crucial role in enhancing the visibility of road markings. By evenly dispersing glass beads onto the freshly painted lines, it significantly improves the reflectivity of the markings, ensuring enhanced safety, particularly in low-light conditions.

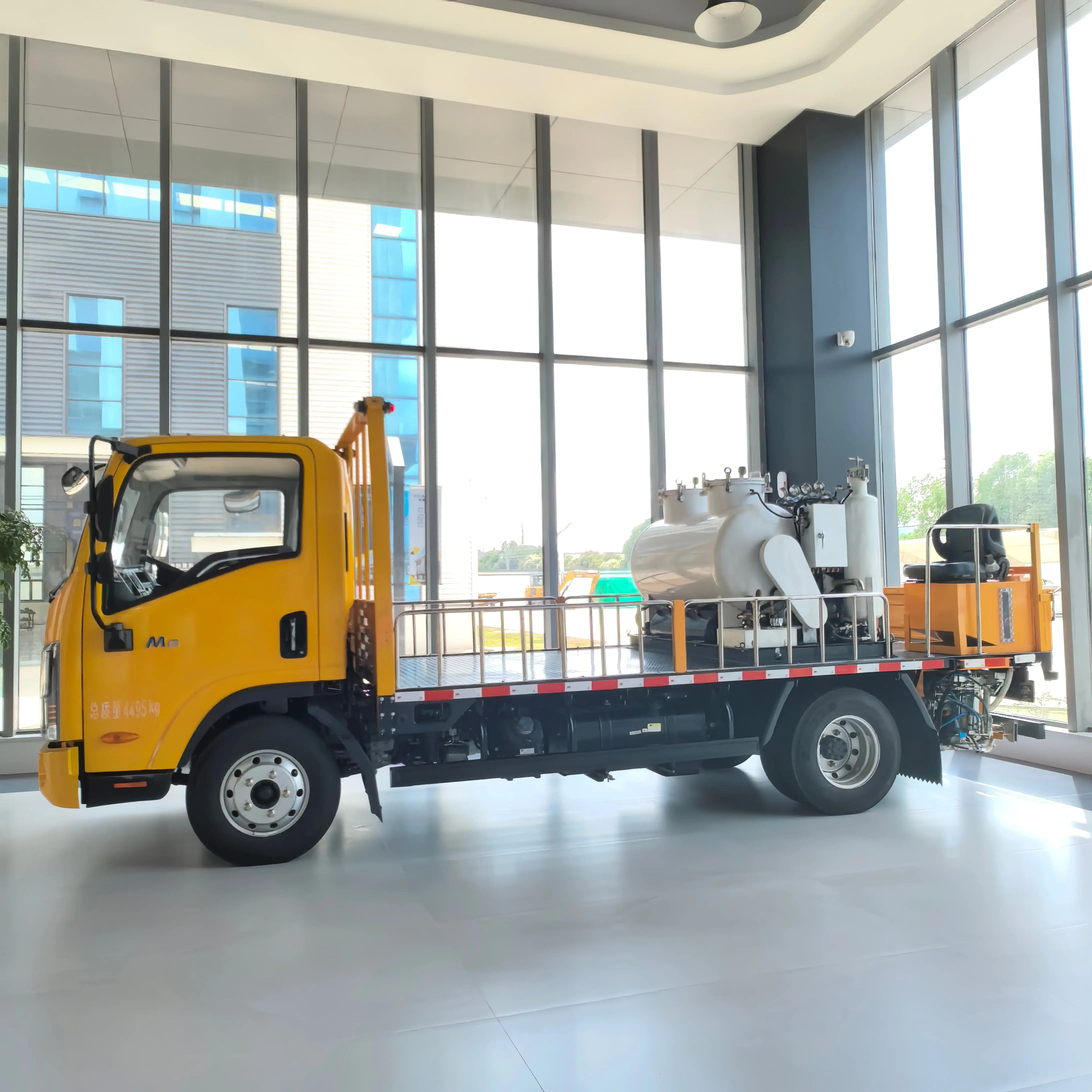

The Vehicle-Mounted Two-Component Dot-Painting Road Marking Machine is a comprehensive and highly efficient solution for all road marking needs. Its advanced features, reliable components, and customizable options position it as a top-tier choice for contractors, municipalities, and road maintenance teams around the globe, setting a new benchmark in the field of road marking equipment.
