1 / 4

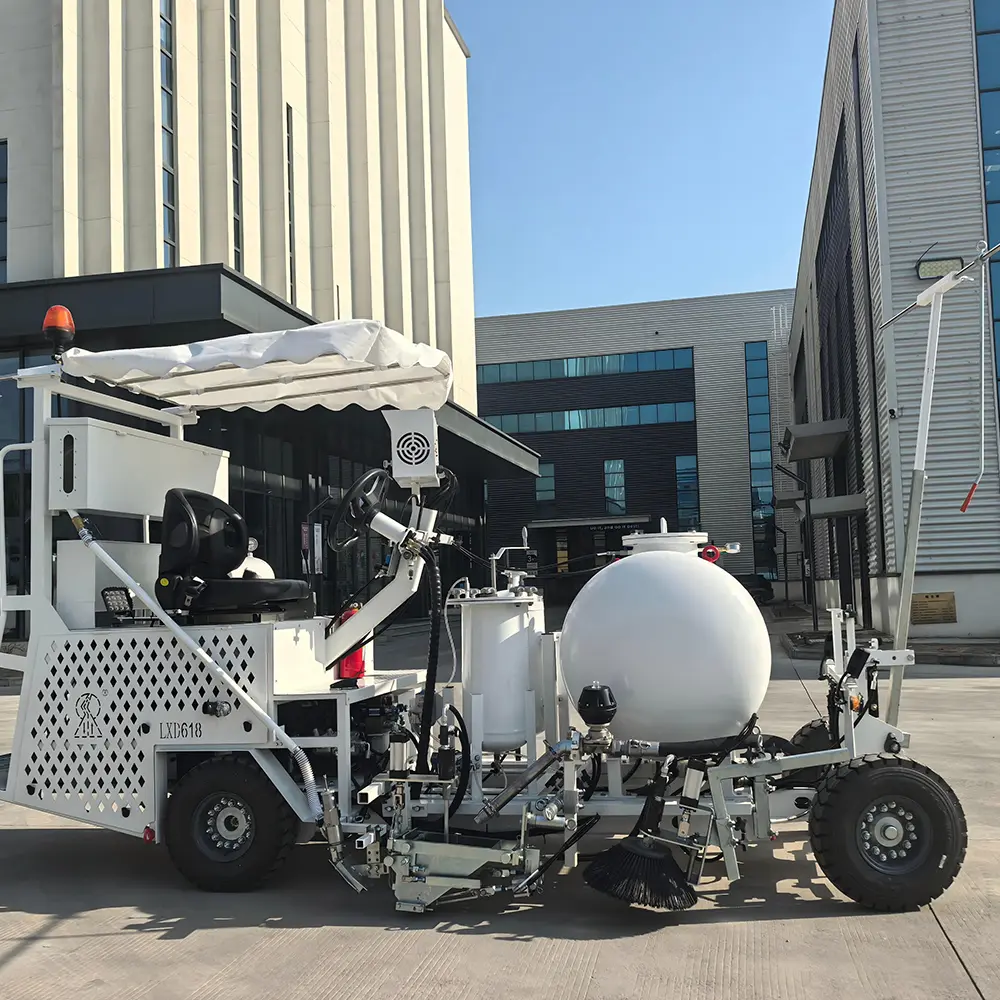

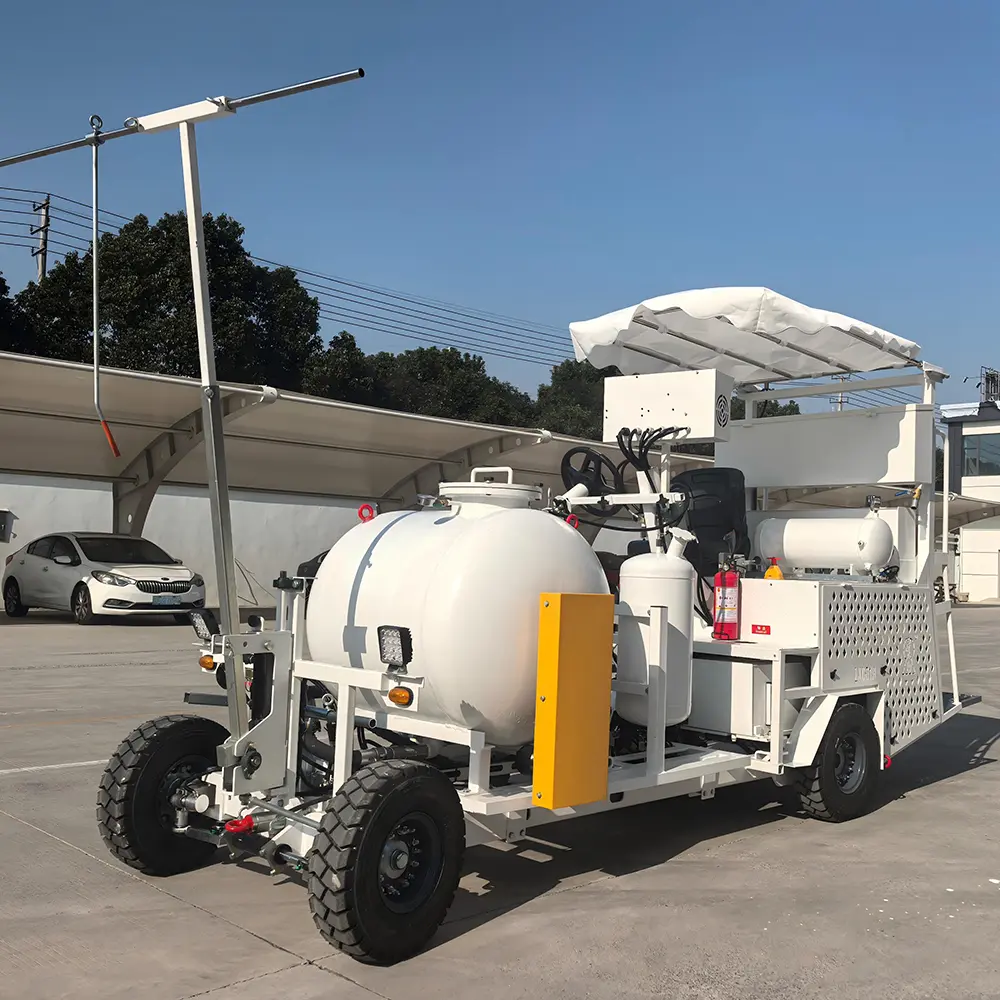

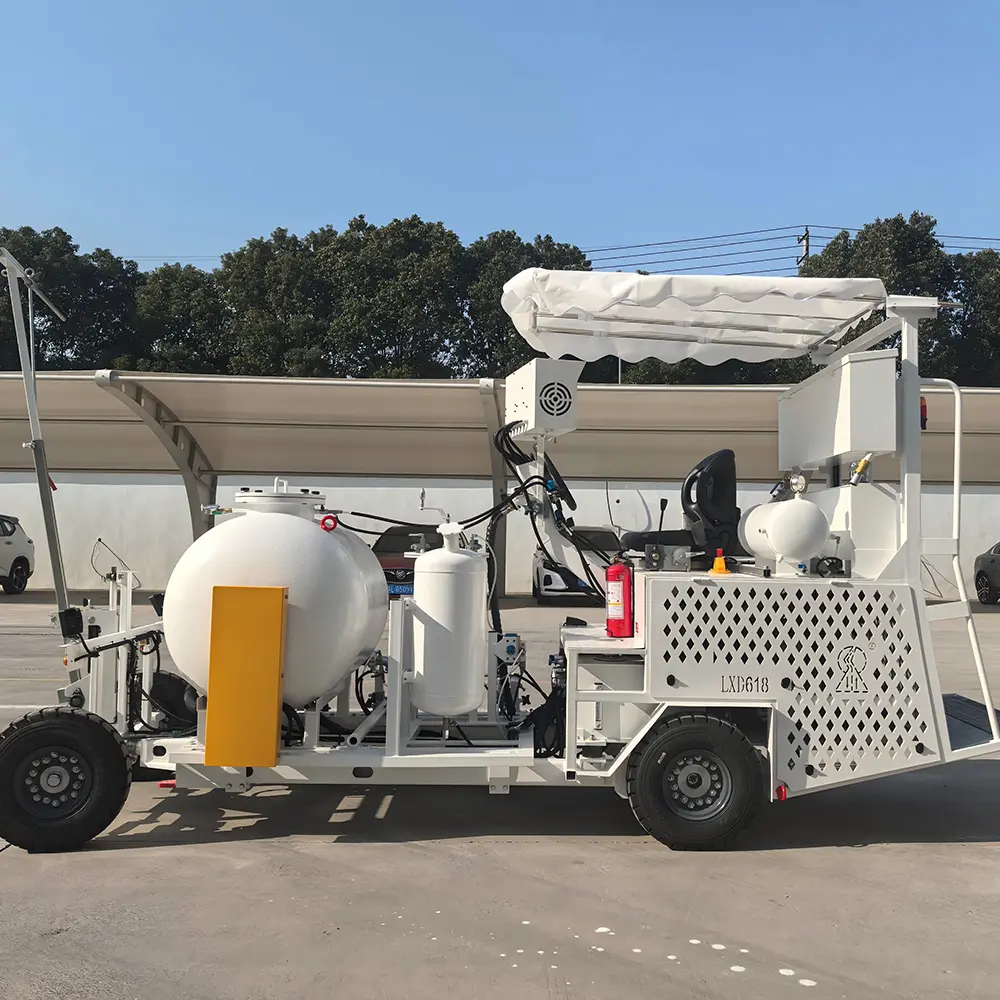

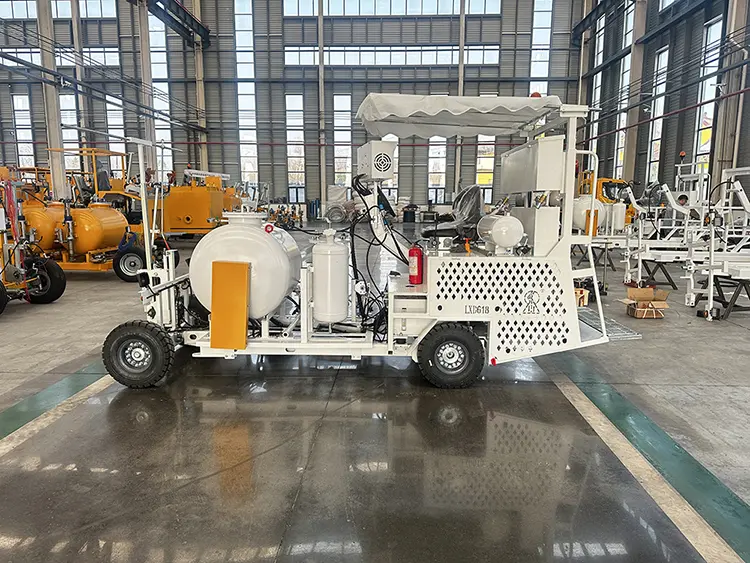

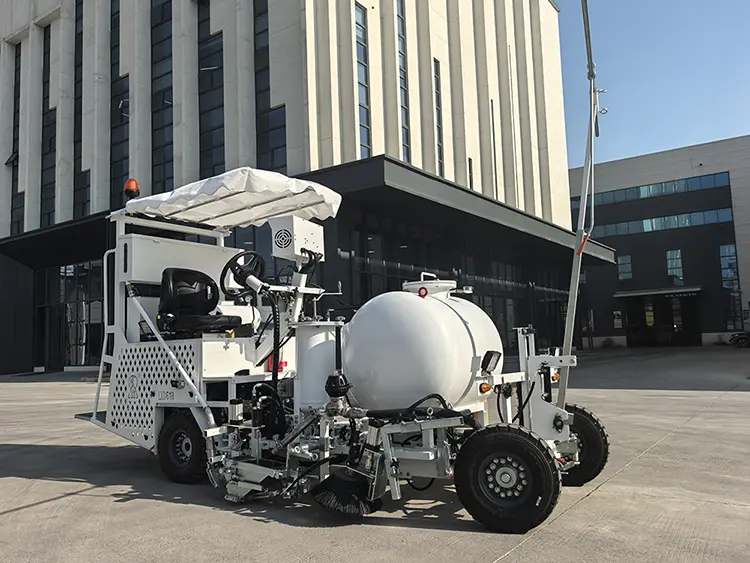

The HW-618 two-component road marking machine (with a 98:2 mixing ratio) is a professional equipment suitable for the application of two-component road marking paints. It features multiple application functions, including scraping, dot marking, and vibratory marking.
The main agent and curing agent are automatically mixed in a 98:2 ratio, ensuring complete reaction, fast curing, and strong adhesion.

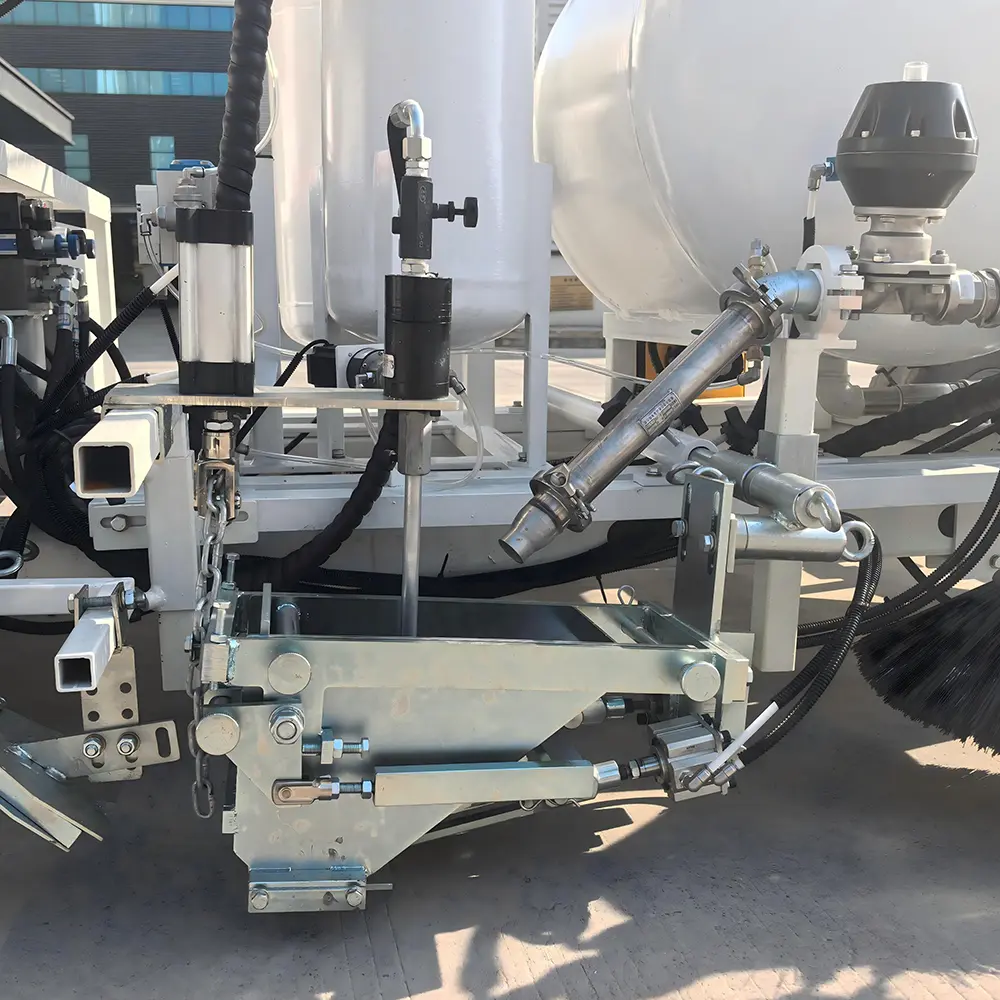

Achieve scraping, dot marking, and vibratory marking by changing different nozzles or scrapers for various road marking needs.
Perfect for municipal roads and highways. Markings are wear-resistant, highly reflective, and offer a long service life.
| Engine | Kubota turbocharged diesel engine V3800-DI-T-E2B-EU-Z4-NL / Power: 99.5 hp (74 kW) @ 2600 rpm |
| Fuel Type | Diesel fuel, approximately 75 liters |
| Steering System | Hydraulic steering, using automotive steering (standard) |
| Drive / Braking | Hydraulic brakes and service brake; Hydraulic multi-disc parking brake (Poclain motor) |
| Wheels | Front: 185 R14–5-hole rims / Rear: 225 R15–6-hole rims |
| Compressor | Borg compressor, mechanically driven. Flow rate: 1,465 liters/minute |
| Operating Pressure | 7 bar (Equipped with a silent safety valve) |
| Electrical System | 12V |
| Flow Rate | 15.1L/min*2 (Imported from Germany) |
| Non-Pressurized Reservoir | Approximately 200 liters (other sizes available) |
| Marking Unit | Diskless design, equipped with an airless spray gun (standard) |
| Curing Agent Pump | 98:2 mixing ratio or variable "Varimix"; delivery rate approx. 20 liters/minute |

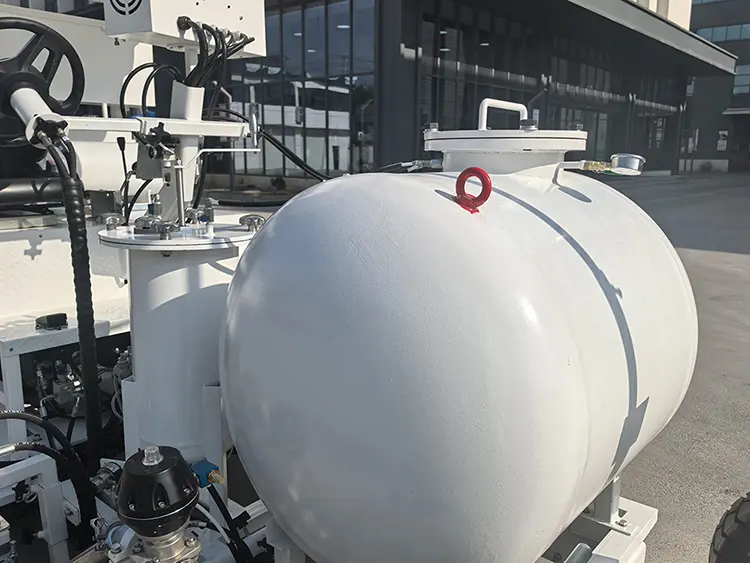

| Paint Tank Capacity | Mixer 1: ~650 liters + Mixer 2: ~400 liters |
| Dimensions | ~4.22m (L) x 1.6m (W) x 2.45m (H) |
| Weight | Empty: ~3,200 kg / Gross: ~4,800 kg |
A: The machine is designed with a precise 98:2 mixing ratio for the main agent and curing agent, ensuring optimal paint reaction and durability.
A: It is a multi-functional machine capable of scraping (smooth lines), dot marking (discrete patterns), and vibratory marking (raised anti-slip warnings).
A: It is equipped with a high-performance Kubota turbocharged diesel engine (V3800), providing 99.5 horsepower for consistent operation.
A: Yes, the two-component markings are highly wear-resistant and reflective, making them ideal for highways, municipal roads, and parking lots.
A: While the standard configuration includes 650L and 400L mixers, other container sizes can be provided upon specific request.
A: The machine utilizes a hydraulic braking system which includes the service brake, along with a hydraulic multi-disc parking brake for maximum safety.
