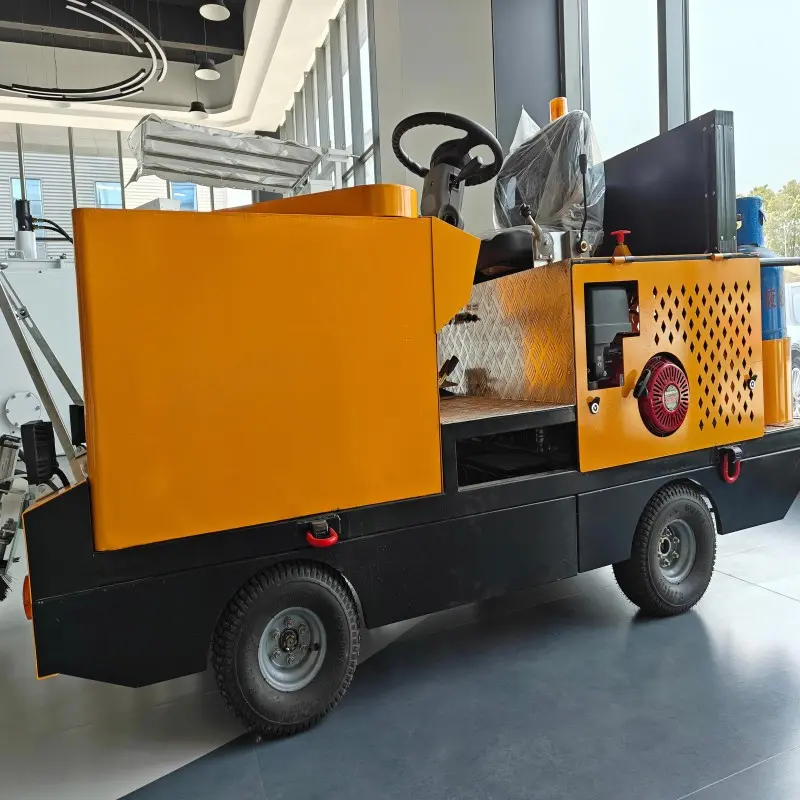

Powered by a robust Honda GX390 liquefied gas engine delivering 13HP, the HW-168 guarantees dependable and efficient operation. The heating system offers two options: liquefied gas heating and diesel heating. This flexibility allows users to use a 15-kg liquefied gas tank, adapting to project-specific requirements and resource availability.

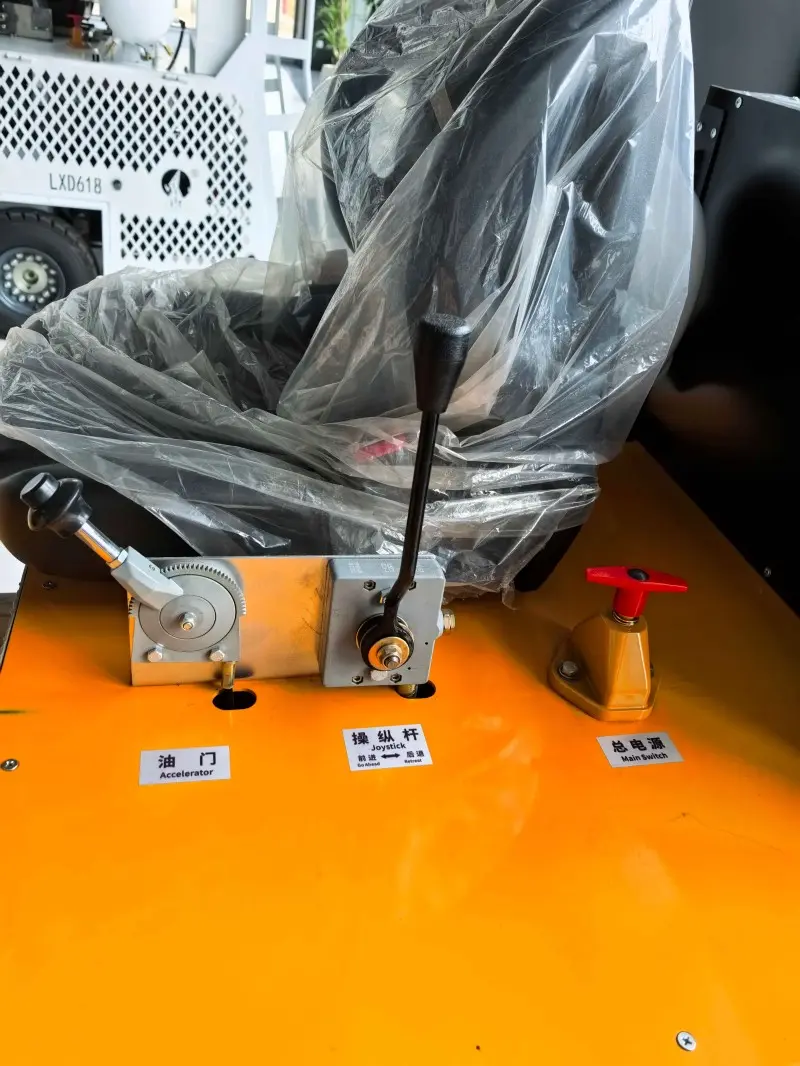

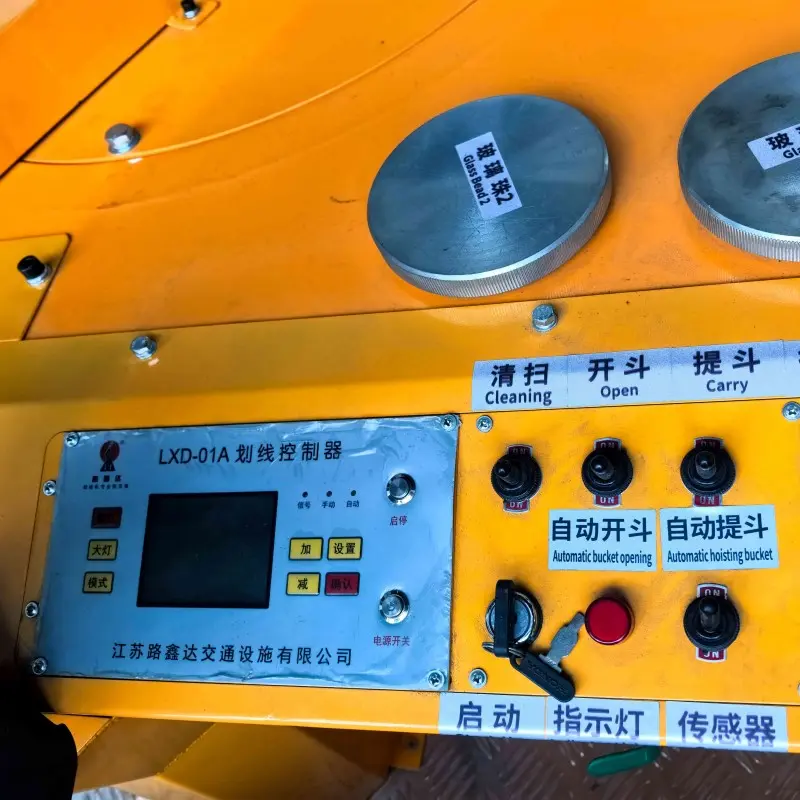

The vehicle control system of the HW-168 Riding-type Thermoplastic Marking Machine incorporates a CPU computer board with a German-imported Siemens control system. This state-of-the-art Siemens Control System enables highly precise control, ensuring stable and accurate operation during the marking process.
Featuring dual working modes, the HW-168 can create both ordinary dotted and solid markings, as well as raised oscillating lines. This Dual Modes functionality makes it suitable for a broad spectrum of traffic marking applications, enhancing safety and visibility.
The travel drive system is powered by liquefied gas and employs a hydraulic drive with stepless speed change. These mechanisms empower operators to adjust the speed according to the unique demands of each marking job, boosting efficiency and marking quality.

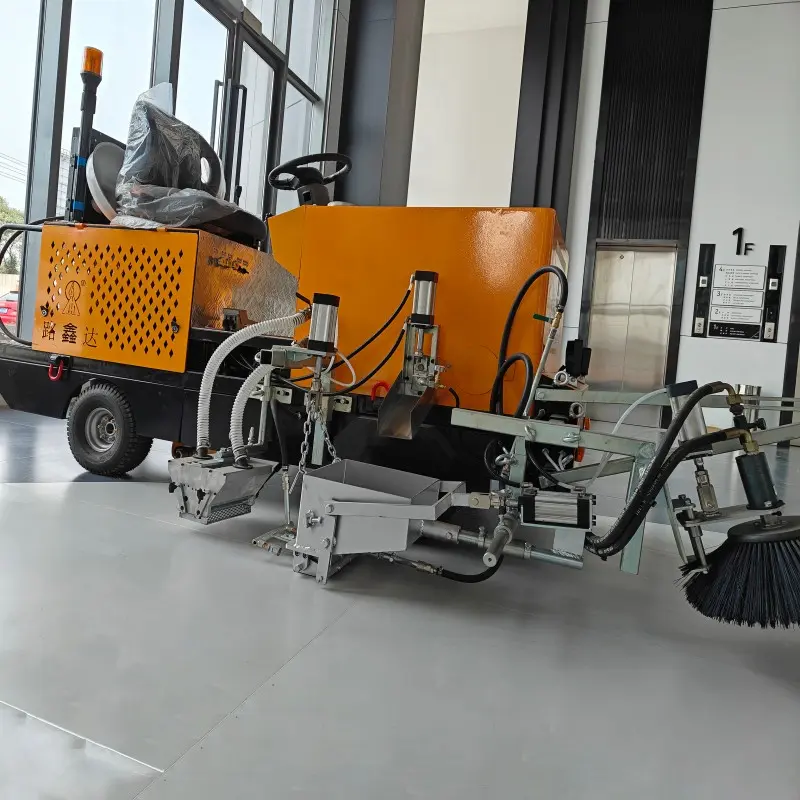

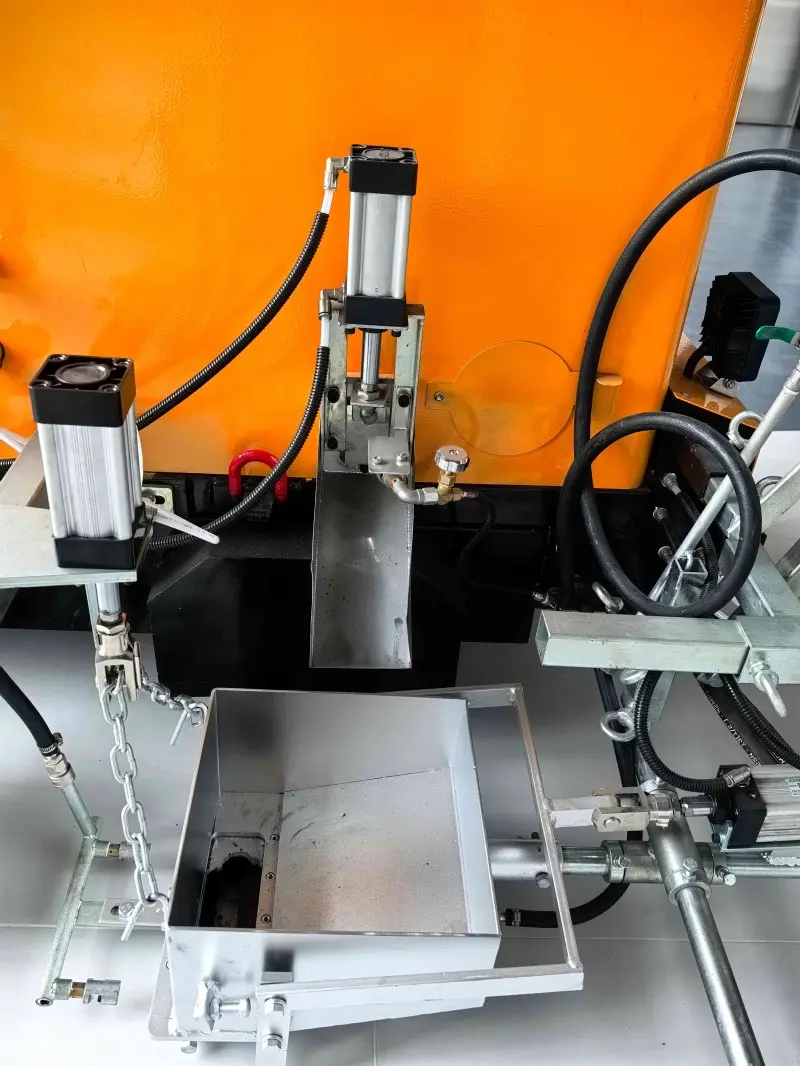

Integrated with an imported air compressor, which also functions as an air pump, the HW-168 ensures stable air pressure within the range of 0.4 - 0.6KG. This is crucial for components involved in applying glass beads or paint spraying.
Operating at an optimized pressure of 0.4kg, the machine ensures consistent results. The paint bucket features a 0.14 Cubic Meters capacity, while the 25KG glass bead box ensures an ample supply for high-visibility markings.
The machine operates at speeds from 0 - 20km/h, providing flexibility for various project scales. Its ability to handle a Maximum Gradient of 30° enables effective operation on inclined surfaces and varied road terrains.
Marking width can be adjusted to 5, 10, 15, 20, 30, 40, or 45cm. The raised marking height is also adjustable from 0 - 10mm, expanding the application scope for specialized road requirements.

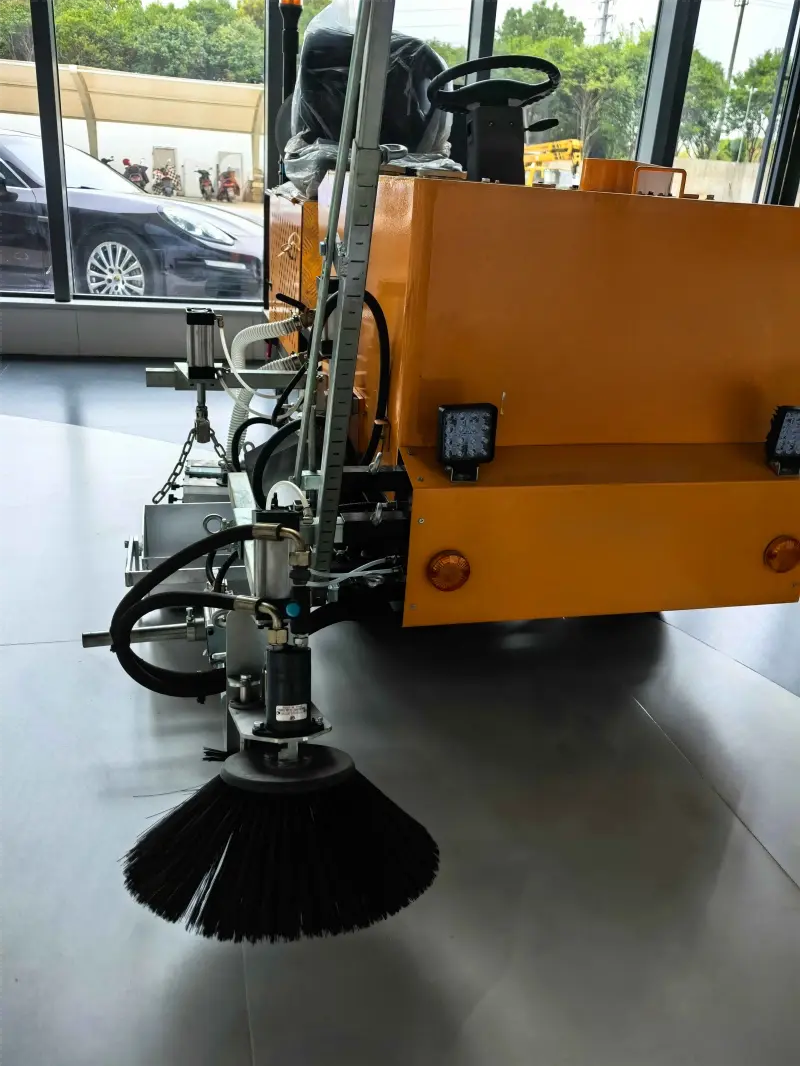

Equipped with 4 inflatable rubber wheels for smooth movement and a comprehensive LED lighting system (headlights, warning lights, turn signals) for safe low-light operation. It includes a 2m retractable pointer for alignment. Dimensions: 3 × 1.5 × 1.65m; Weight: 980KG.
In summary, the HW-168 Riding-type Thermoplastic Marking Machine combines high-tech components, advanced features, and outstanding performance. It is the go-to choice for professionals in the traffic marking industry, offering high safety factors and automation for both large-scale infrastructure and local road marking tasks.
