At the heart of the HW-618 lies the highly reliable Kubota V1505 engine. With a power output spanning from 19 - 37KW and a rotational speed of 3600 r/min, this engine guarantees unwavering stability and peak-efficiency operation. Running on gasoline stored in a 0.054m³ fuel tank, the HW-618 has the endurance to power through extended working hours. The Kubota V1505 engine is the lifeblood of the HW-618 Riding-type Thermoplastic Scratch Marking Machine, endowing it with the capability to tackle even the most complex marking tasks with consummate ease.
Outfitted with a cutting-edge electronic system, the HW-618 offers operators an unprecedented level of precise control over all its functions. The robust standard mechanical steering system, operating on a worm-gear and roller mechanism, can be tailored to specific project needs. This adaptable steering feature is a defining characteristic of the HW-618 Riding-type Marking Machine, empowering operators to navigate the machine with pinpoint accuracy, regardless of the intricacy of the marking scenarios.
The driving and braking system of the HW-618 is a testament to advanced engineering. Employing hydrostatic transmission, it not only propels the machine forward with smooth and consistent power but also functions as an extremely effective service brake. The parking brake, a hydraulically-controlled multi-disc brake, provides rock-solid stopping power, significantly enhancing safety during operation. This advanced system is the cornerstone of the Thermoplastic Scratch Marking Machine's seamless performance.
| Component | Specification |
|---|---|
| Wheels | 6.00 - 9 NHS × 4 |
| Compressor | 0.21m³/min |
| Working Air Pressure | 7bar, featuring a silent safety valve |
| Power System | 12V |
| Heating Method | Gas Heating |
| Insulated Paint Cylinder | Equipped with a stirrer, volume 534L, approximately 0.53 cubic meters (about 1T) |

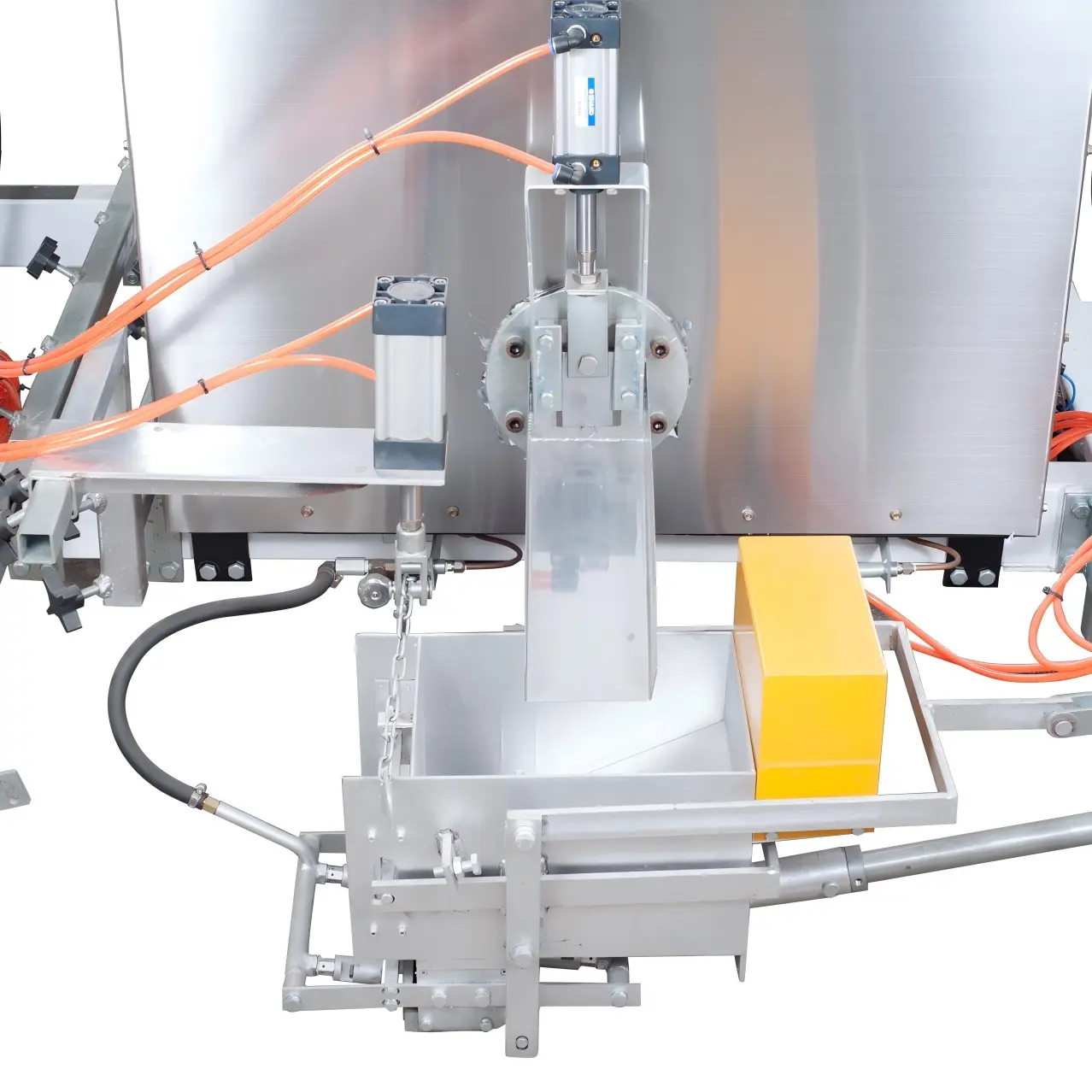

| Additional Equipment | 15, 20, 30, 40cm scraping buckets and oscillating buckets (customizable) |
| Discharging | Pneumatic opening and closing, pedal-actuated |

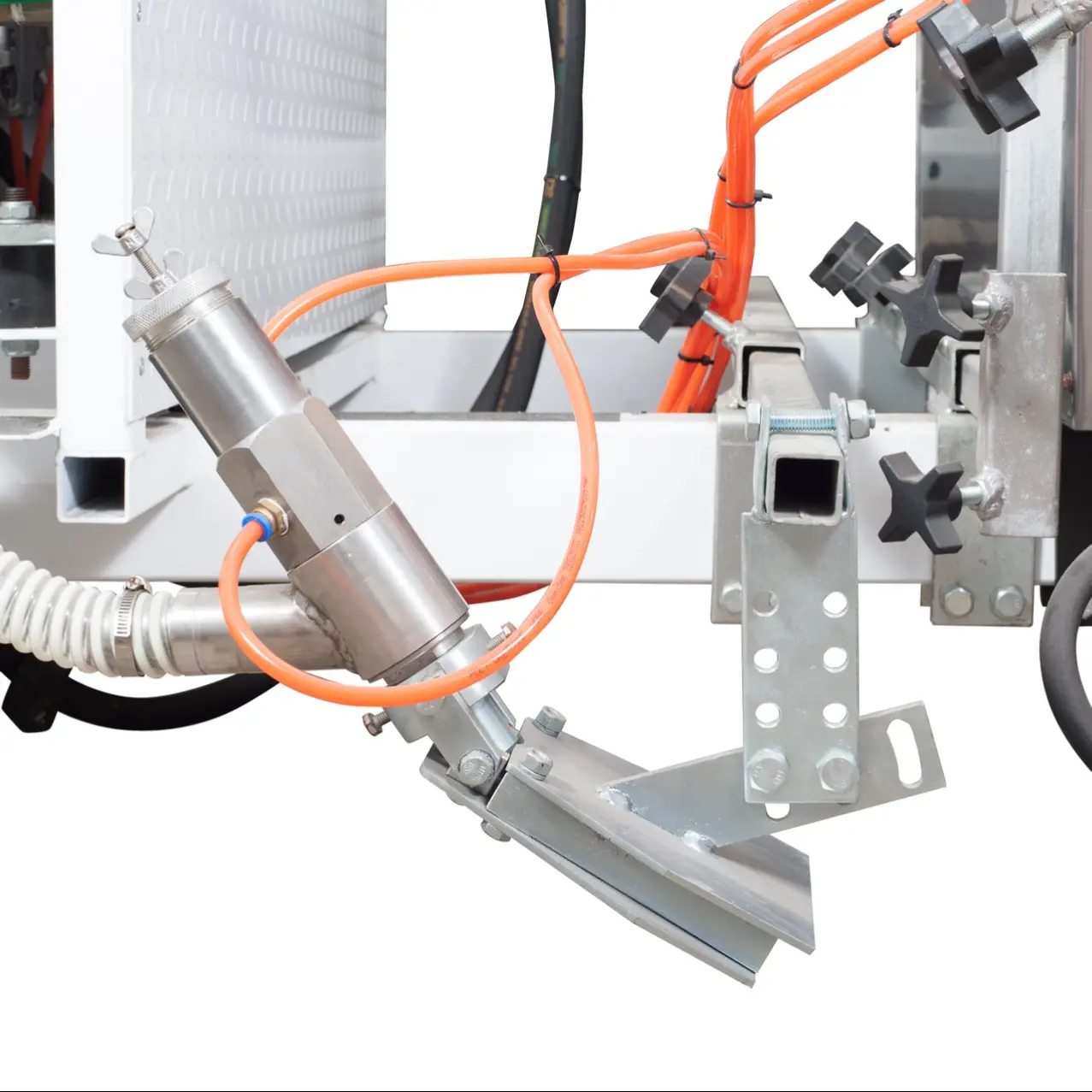

| Glass Bead Equipment | Spray seeding, with adjustable pressure settings |
| Glass Bead Tank Capacity | 0.07m³ |
| Total Weight (Empty) | Approximately 1.8T |
| Dimensions | Approx. 4m (L) × 1.4m (W) × 2.2m (H) |
In summary, the HW-618 Riding-type Thermoplastic Scratch Marking Machine is an all-encompassing and highly efficient marking solution. Its harmonious blend of advanced features, high-performance components, and multifunctional capabilities makes it the go-to choice for professionals in the traffic marking industry. This machine continues to set the industry benchmark, revolutionizing the standards for Thermoplastic Scratch Marking Machines.
