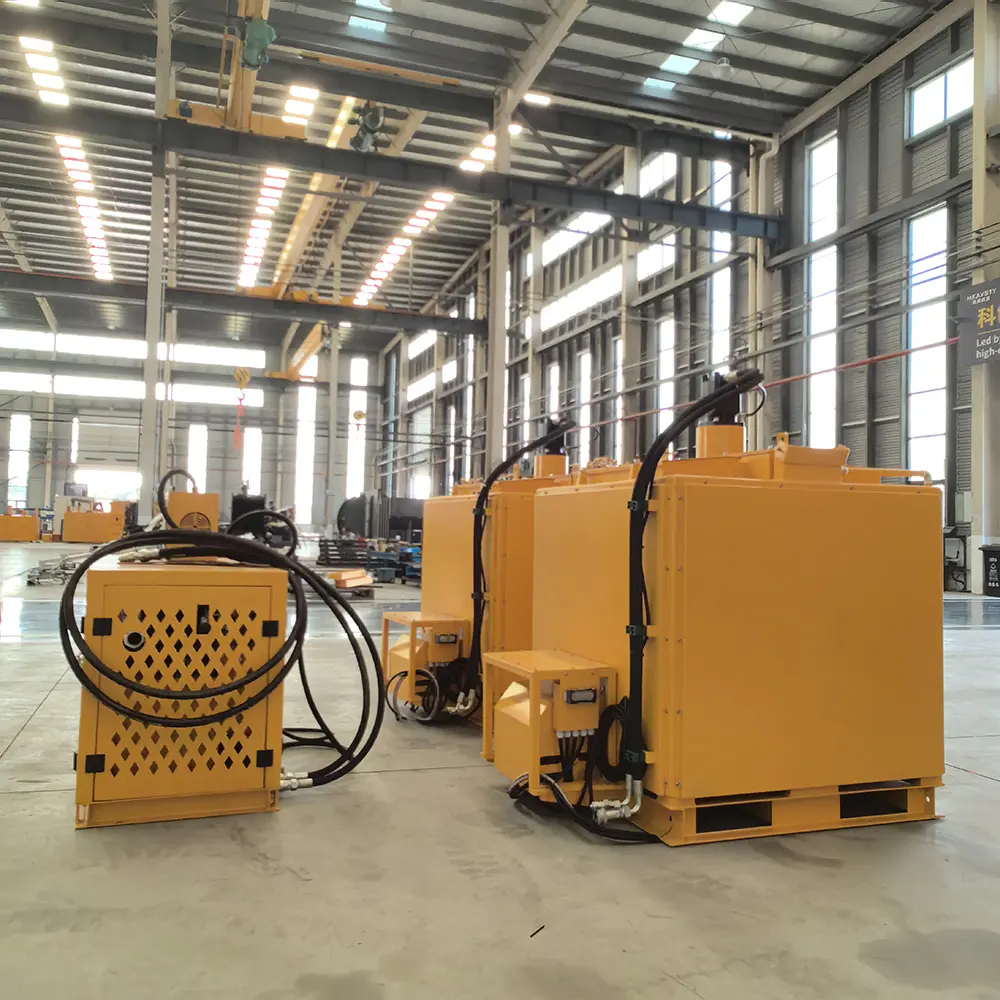

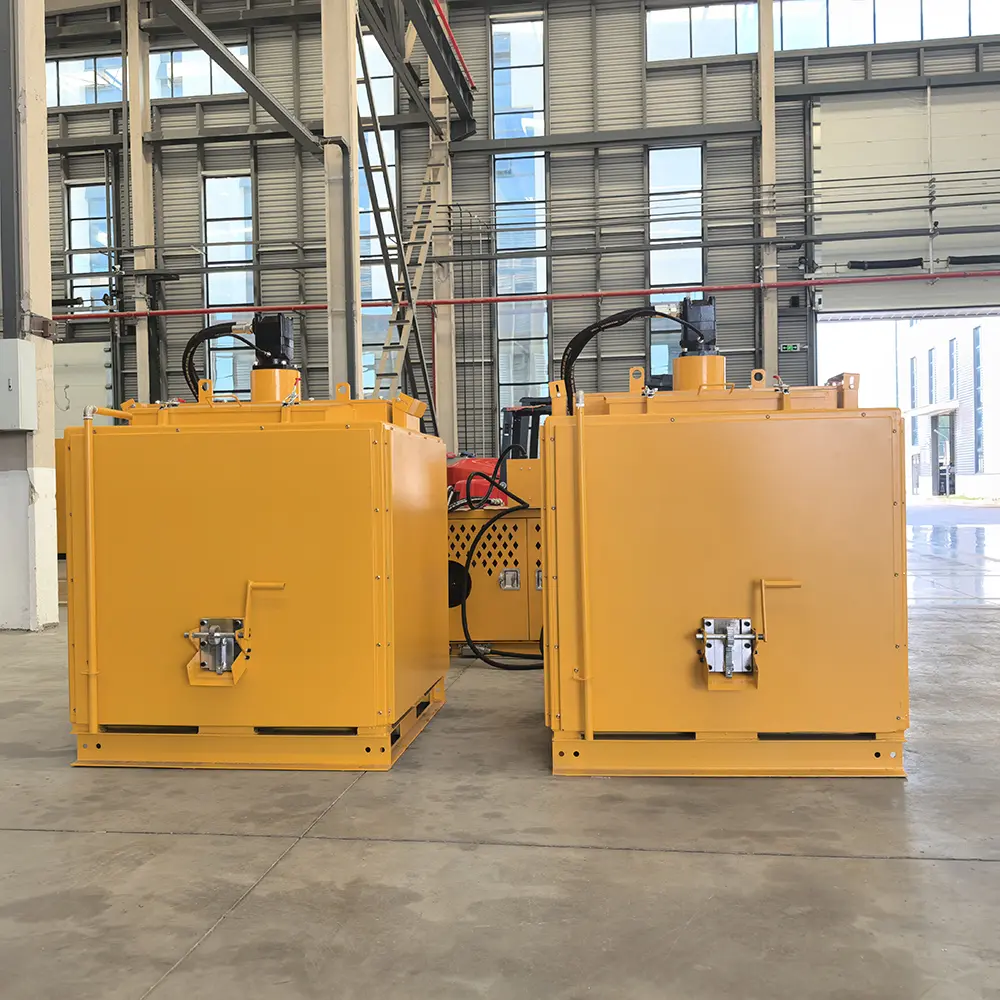

Adopt double cylinder structure (2000kg), single cylinder capacity can reach 1000kg, double cylinder synchronous melting, support continuous operation, significantly improve construction efficiency, especially suitable for large area marking engineering.
Using high efficiency temperature control burner, combined with combustion chamber system, to achieve full fuel atomization and high oxygen combustion, the melting speed is more than 30% higher than traditional equipment, shorten the construction cycle, the first computer controlled hot melt kettle in China.
| Technical Specifications | |
|---|---|
| Engine | 1505 Kubota Engine |

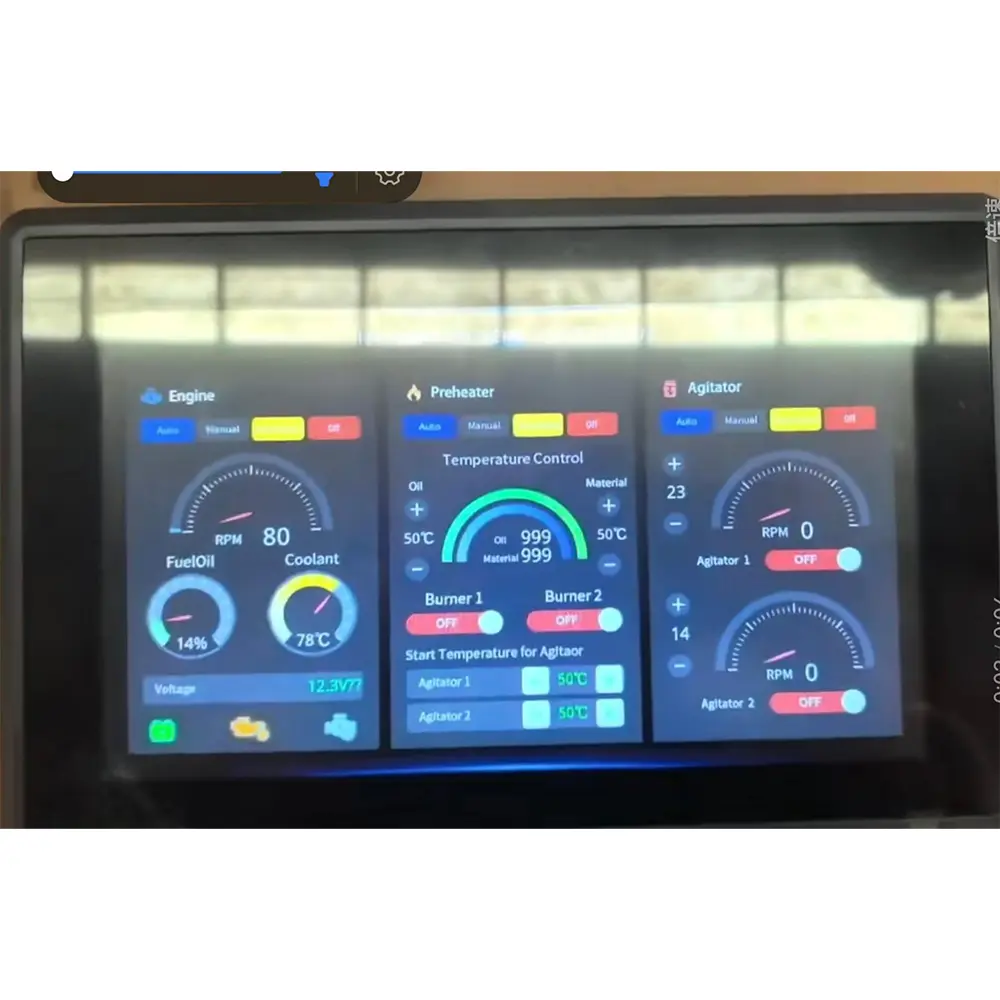

| Navar | Fully computer controlled |
| Internal structure of the cauldron | The double-layered pot wall is used to control the fire channel and automatically rotates after reaching the temperature Wind observation hole, air heat transfer, pot bottom durability and deformation |
| External structure of the cauldron | Stainless steel shell, thickened plate 12mm, vertical paddle type stirring, heat transfer oil structure |
| Cooling systems | 1000L/min 3.5M/Pa |
| Heating system | Imported burner, 50,000 kcal, two kettles can be controlled separately, computer control self-regulate temperature |
| Dynamical system | High torque mixing system, multi-way integrated hydraulic control valve, forward and reverse mixing, stepless speed change |
| Capacity of the cauldron | 1000kg * 2 |

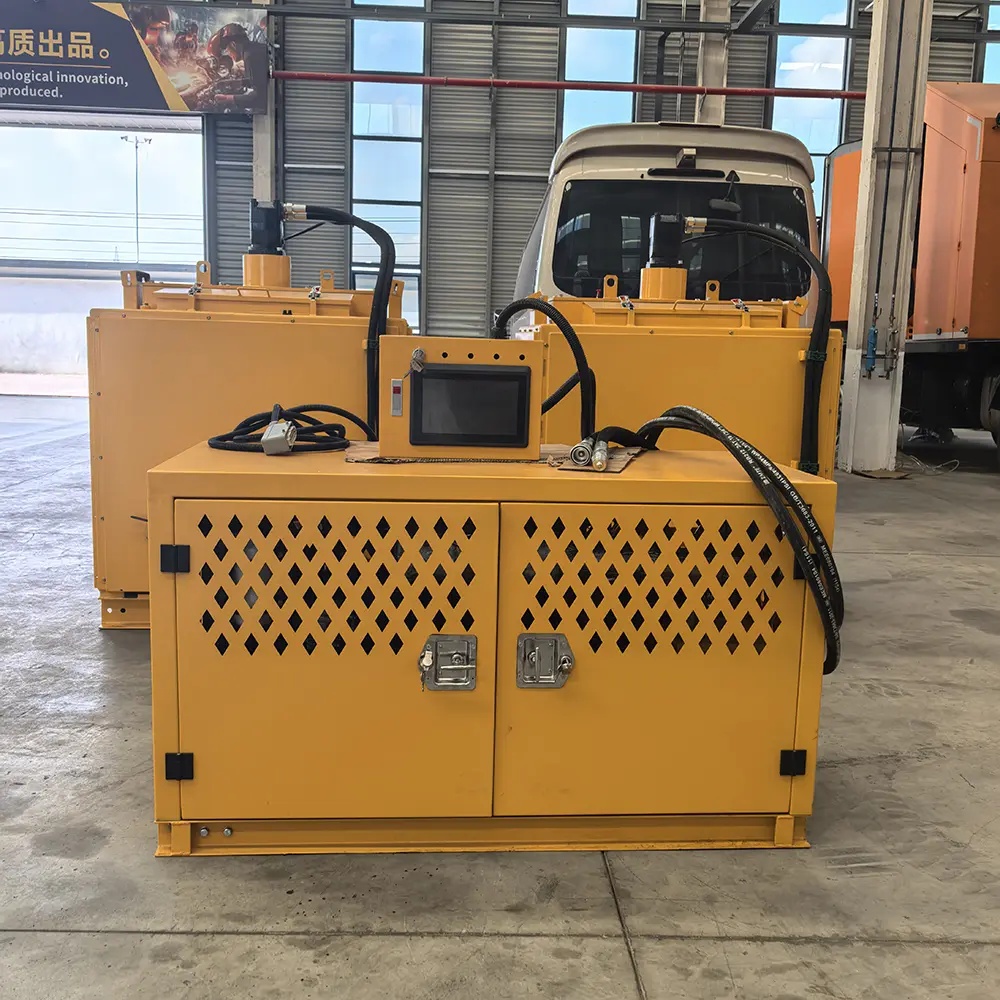

| Size | Hot melt kettle: 1690*1180*1180mm; Power box: 1450*650*830mm |
| Weight | Hot melt kettle 1290kg*2 + power box 330kg |
| Speed | Maximum 3000r/min, Minimum 800r/min |
| Voltage | 12V |
