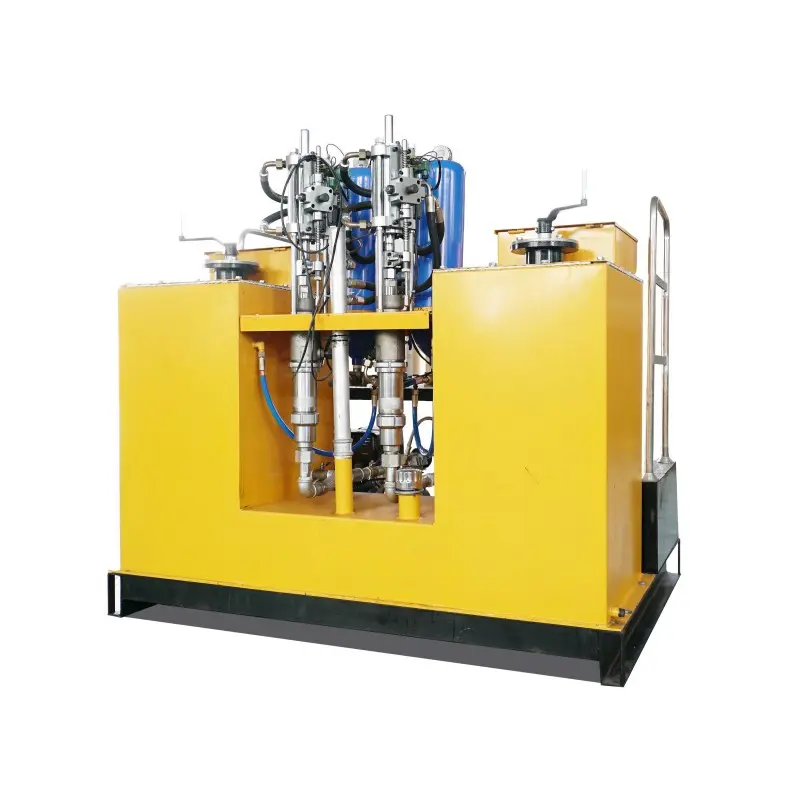

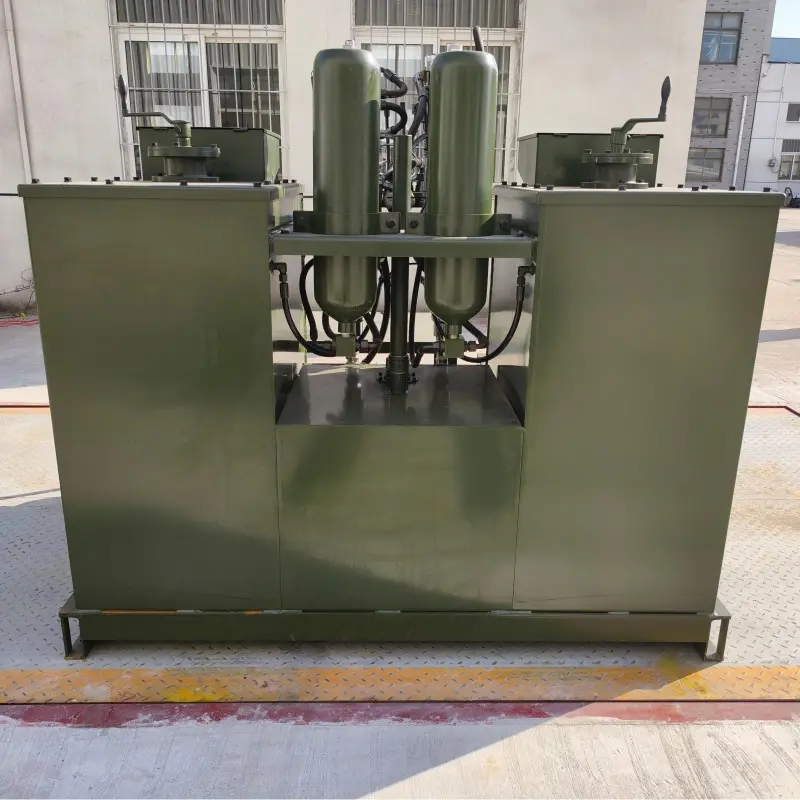

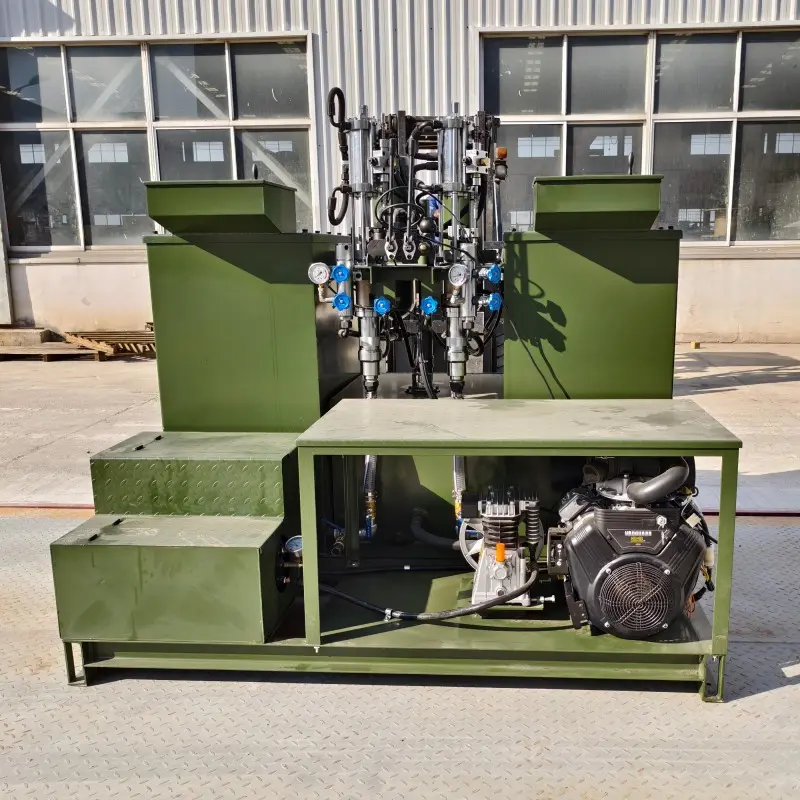

This vehicle-mounted cold spray marking machine is a highly specialized piece of equipment, tailored for large-scale highway projects. It is equally well-suited for airports, guaranteeing accurate and long-lasting marking applications. For any contractor or maintenance team engaged in road and airport infrastructure development, this machine is an essential asset.
| Product Parameters | |||
| Specialized device designed for large-scale highway and airport projects. Suitable for solid lines, dashed lines, and double-yellow lines. Features two guns plus an optional manual gun and two paint buckets. | |||
| Engine | 16.91 kw, Briggs & Stratton | Main Configurations | Automatic Wire-breaking Controller |
| Flow Rate | 20 lpm x 2 | Fuel Tank | Included |
| Pressure | 30 mpa | Spray Guns | 2 Automatic Spray Guns |
| Spray Width | 50 - 900 mm (up to 6 guns) | Hoses | 2x 3.5m High-pressure Hoses |
| Spray Thickness | 0.2 - 0.6 mm | Manual Gun | 1 Manual Spray Gun with 10m Hose |
| Paint Bucket | Single 430 L (0.43 m³) | System | Rotating Sensing System |
| Dimensions | 1820 x 1420 x 1772 mm | Weight | 920 kg |
| Remarks: This equipment can be used to create 1:1 two-component markings. | |||
In highway construction and maintenance, the 1:1 Two-Component Marking Machine is a highly reliable option. It rapidly applies markings that meet stringent safety standards. The high-pressure cold spray system ensures paint adheres firmly for long-term visibility and durability.
In demanding airport environments, this machine handles complex marking requirements for runways, taxiways, and aprons. The cold-paint application is efficient and environmentally friendly, fully compliant with strict airport regulations.
The Vehicle-mounted Cold Spray Marking Machine, with its dual-gun operation, dual-paint-bucket capacity, and adjustable parameters, is the optimal solution for large-scale marking projects. Whether deployed on a highway or at an airport, this machine provides a reliable, efficient, and long-lasting marking solution.
