The HW-660 is renowned for its remarkable High-speed Construction capabilities. With a marking speed spanning from 3 - 8 km/h, it significantly amplifies construction efficiency. This acceleration in project execution not only enables swifter project completion but also curtails the duration for which roads are occupied during marking operations, thereby minimizing disruptions to the normal traffic flow.
Thanks to the integration of top-tier components, the HW-660 enjoys an impressively Long Maintenance-Free Period. It necessitates minimal upkeep, and the maintenance procedures are straightforward and convenient. This Low-Maintenance characteristic not only conserves precious time and resources but also guarantees the uninterrupted operation of the equipment.
Boasting a user-friendly design, the HW-660 is incredibly intuitive to operate. Equipped with a full-touch screen panel for computer-controlled construction, it empowers operators to achieve pinpoint-accurate operation. The inclusion of features like cruise control further simplifies the marking process, making it accessible even to those with limited prior experience.
Recognizing that each traffic marking project is distinct, the HW-660 serves as a prime exemplar of Customizable Marking Equipment. It can be meticulously tailored to meet the specific requirements of individual customers, including adding optional accessories such as a sunshade canopy, quick-side-change device, or a pressure-type double-glass-bead spreading system.

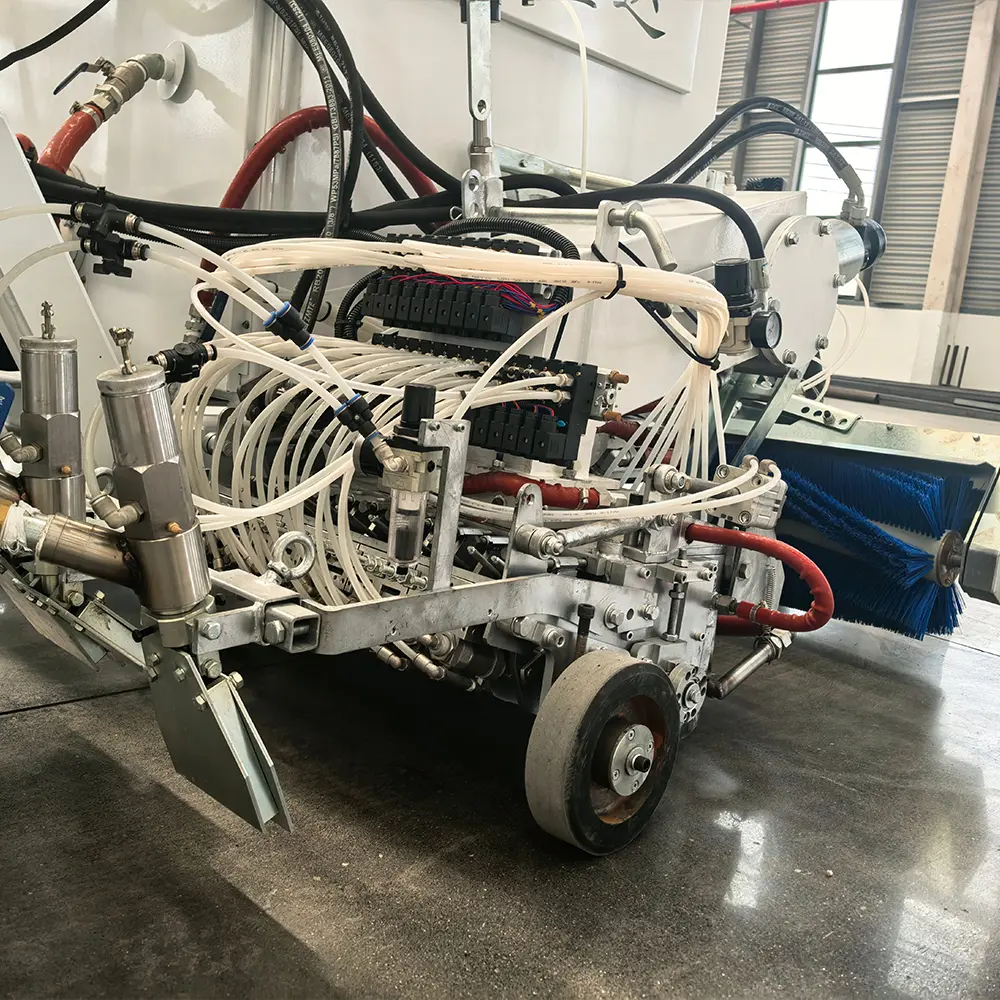

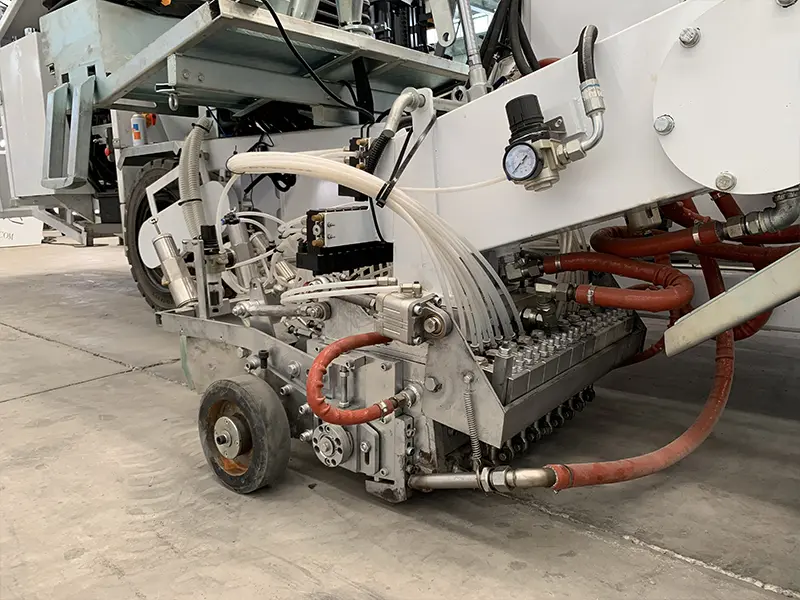

The Extrusion Construction Process enables precise regulation of the paint application, effectively eliminating waste. Additionally, it significantly reduces mechanical wear, thereby substantially extending the lifespan of the equipment. The extrusion method's versatility makes it suitable for a wide range of road surfaces, including rough-textured ones like slurry-sealed roads.
| Engine | Kubota from Japan, 67.6kw, delivering robust and reliable power |
| Steering | Steering via steering gear and oil cylinder for precise maneuverability |
| Drive & Braking | Danfoss hydrostatic transmission (service brake) & hydraulic multi-disc (parking) |
| Marking Speed | 3 - 8 km/h |
| Marking Thickness | 1.5 - 5.0mm, suitable for rough-textured surfaces |
| Control System | Full-touch screen panel for precise computer-controlled construction |
| Cruise Mode | Built-in cruise-control for consistent marking quality |
| Glass Bead Tank | Pressure-type tank for double-bead spreading |
| Air Compressor | Rotorcomp from Germany, 3m³/10mpa |
| Melting Kettle | 1.5-ton capacity with heat-transfer oil circulation |
| Paint Tank | 1 - 1.5 T capacity |
| Dimensions | 6.7 × 2.4 × 2.5m |
| Total Weight | 5 T |

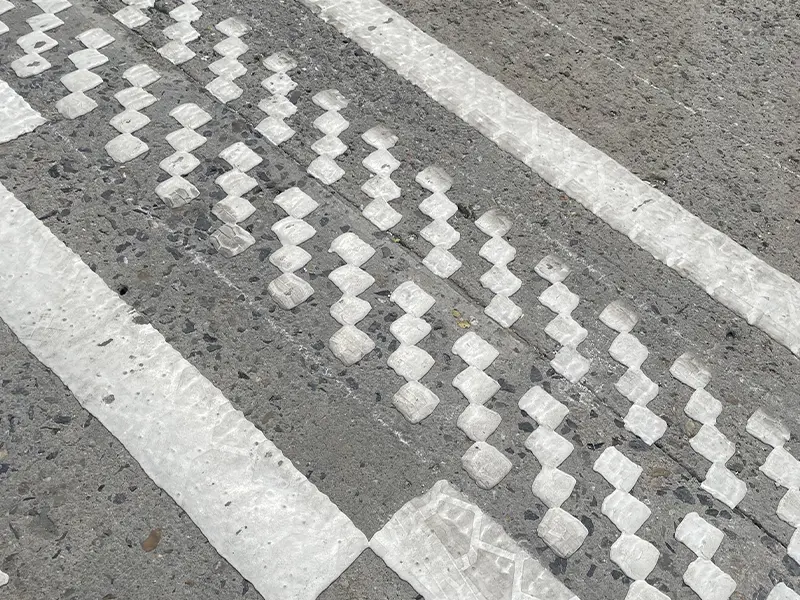

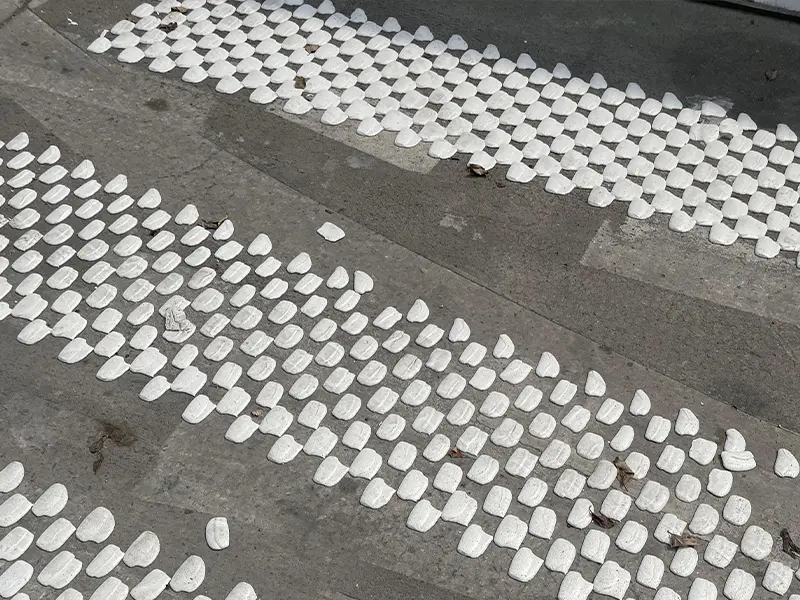

The HW-660 offers an extensive repertoire of over 80 marking line types. In addition to standard solid and dotted lines, it includes fish-bone lines, rib-like lines, checkerboard lines, ladder lines, and various combinations of dots and lines. This vast range of options renders it highly adaptable to different traffic marking requirements, from basic road delineations to intricate drainage-structured patterns.

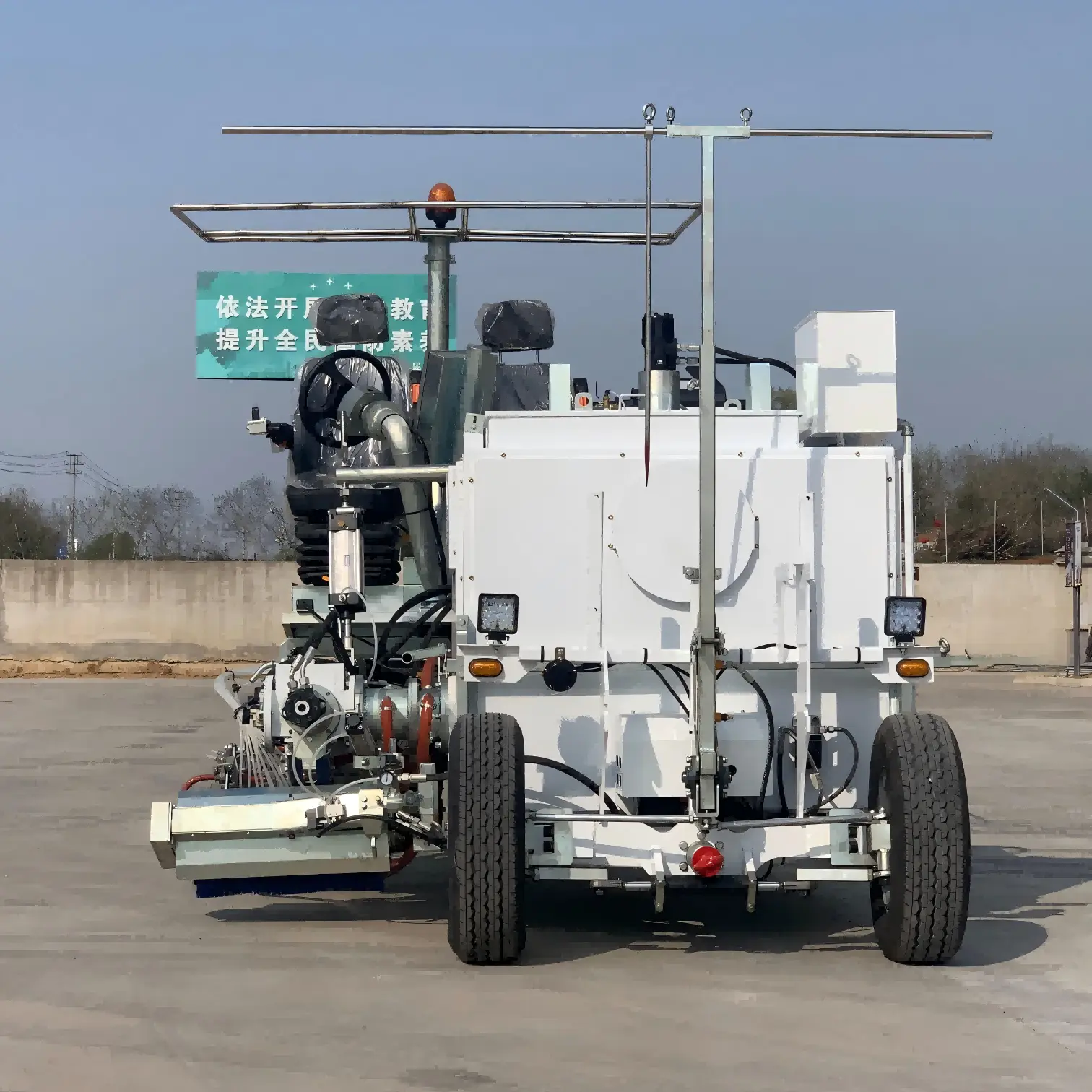

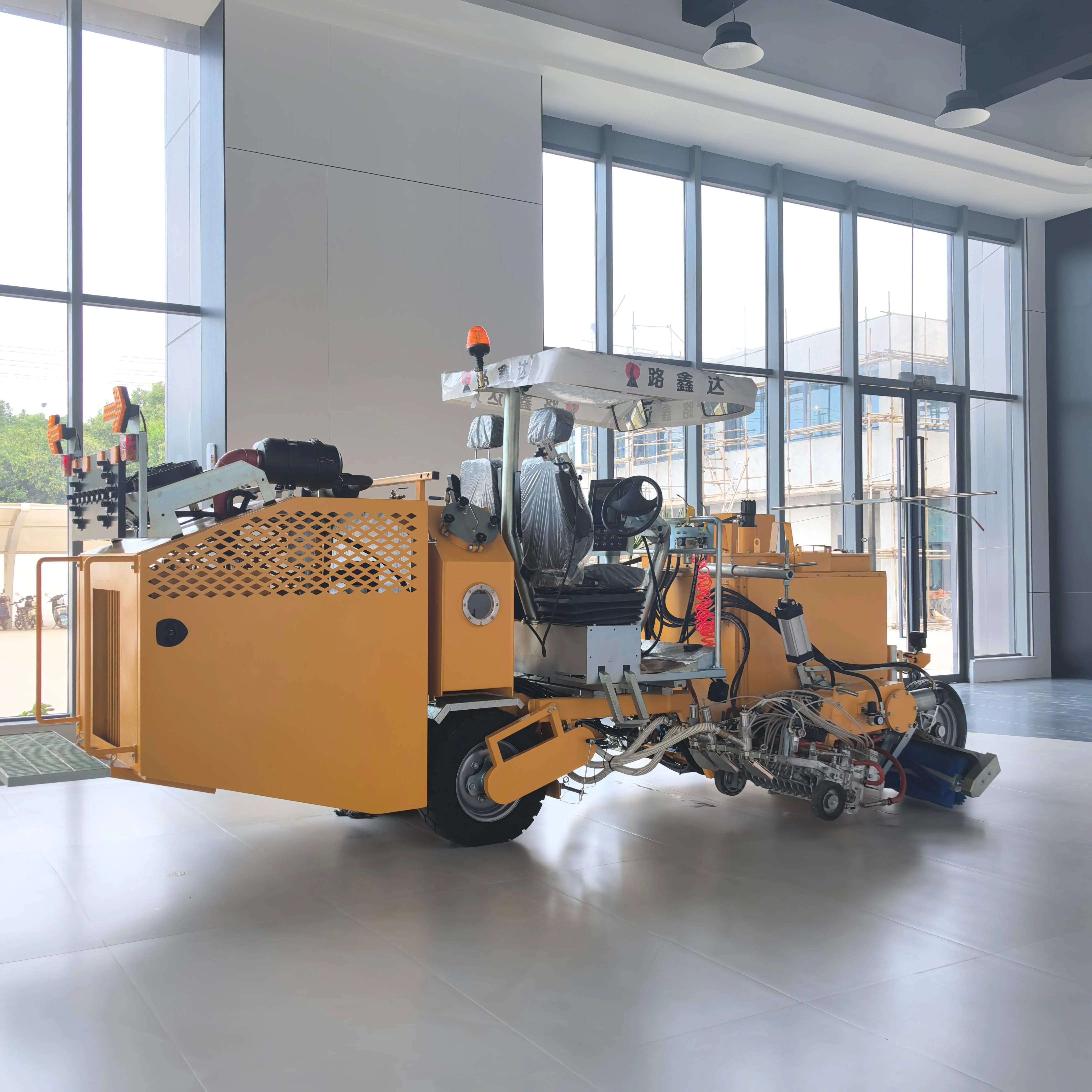

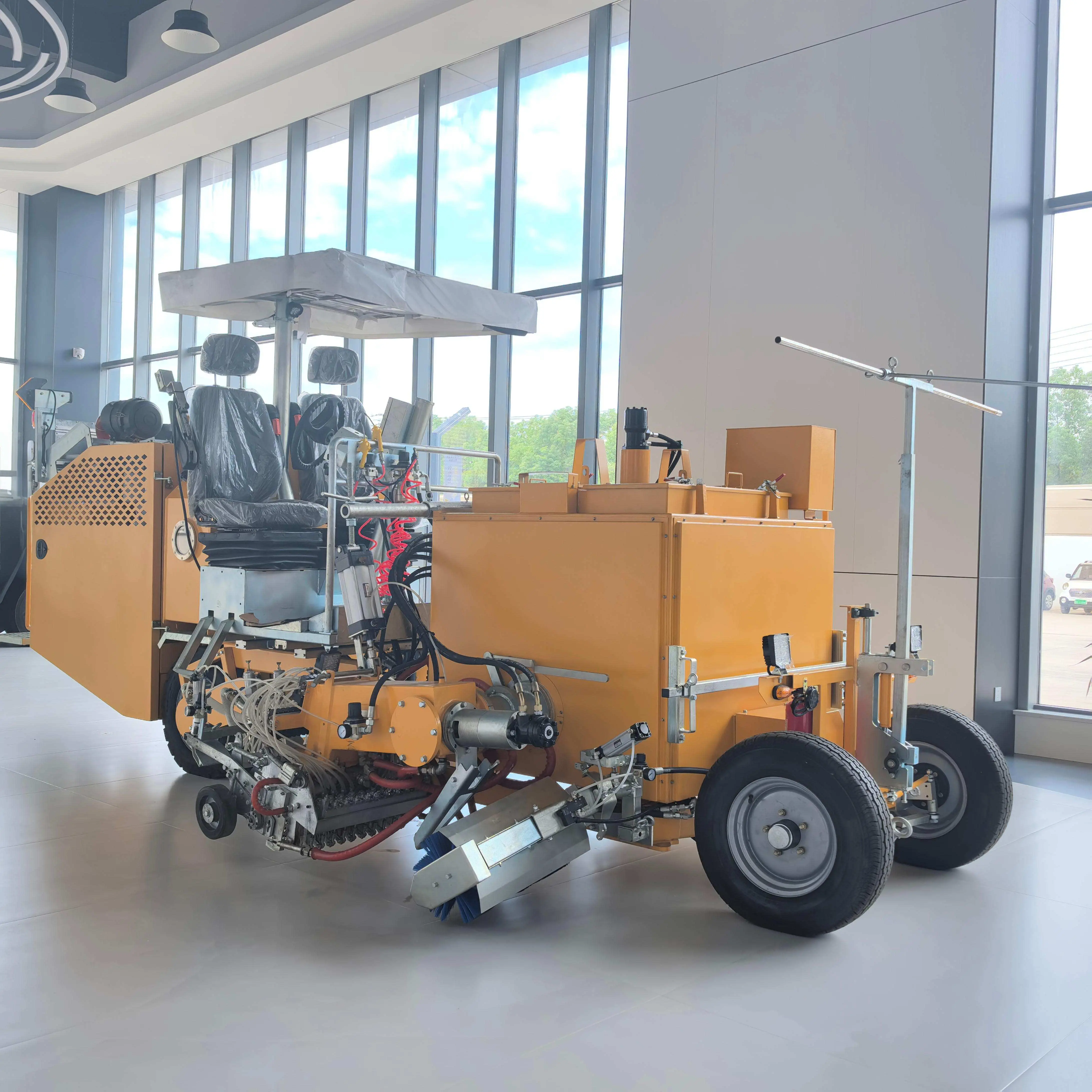

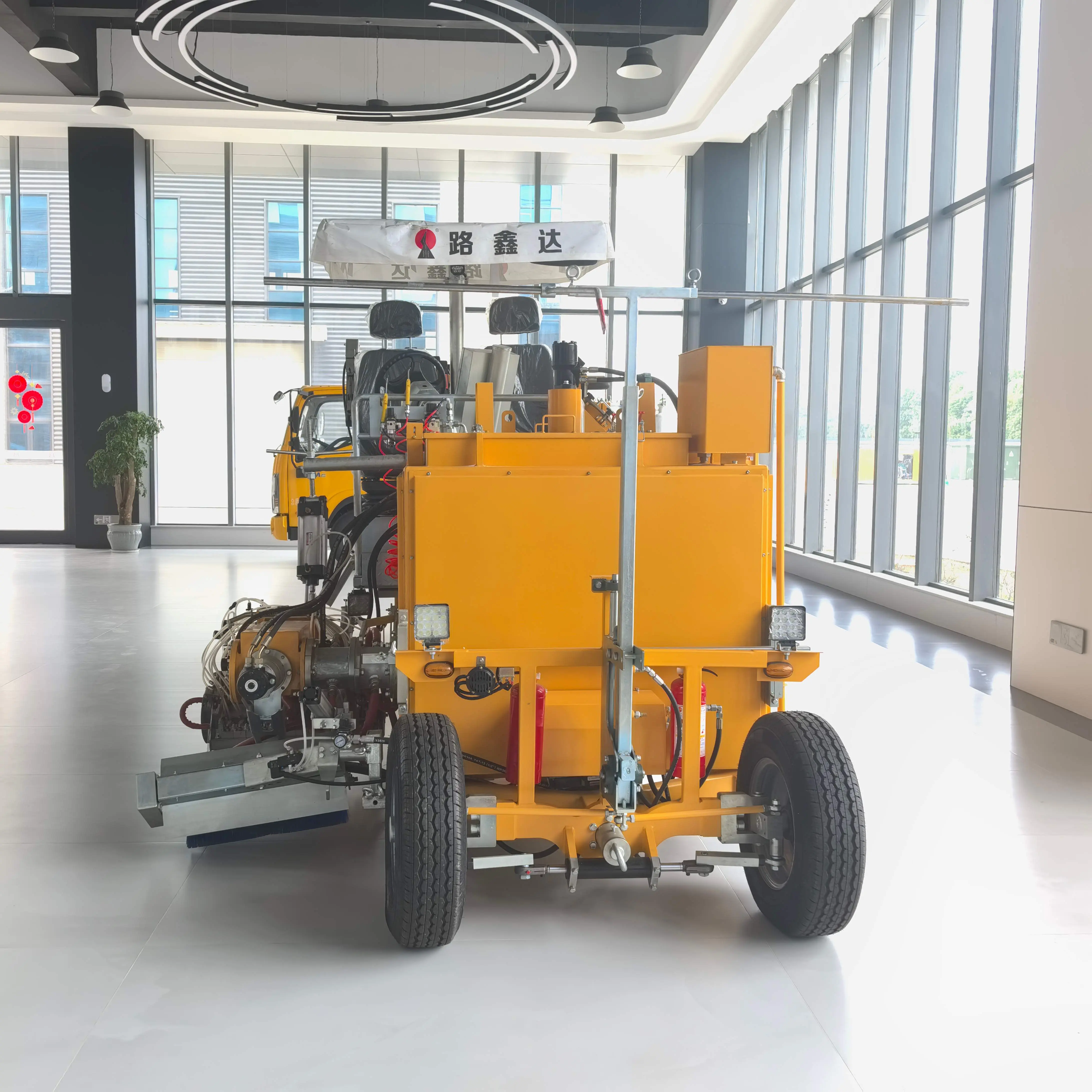

In conclusion, the HW-660 Multi-functional Riding-type Thermoplastic Extrusion Marking Vehicle is a comprehensive solution for traffic marking, blending advanced features, dependable performance, and customizable options to set new benchmarks in the market.
The vehicle offers a marking speed ranging from 3 to 8 km/h, which significantly enhances construction efficiency and reduces road occupancy time.
Yes, the extrusion construction process is highly adaptable and suitable for various road surfaces, including rough-textured ones like slurry-sealed roads.
The HW-660 supports over 80 types of marking lines, including solid, dotted, fish-bone, rib-like, and ladder lines.
Not at all. The machine features a user-friendly full-touch screen control panel and cruise control, making it intuitive even for operators with limited experience.
The HW-660 is designed for low maintenance using top-tier components like the Kubota engine and Danfoss transmission, resulting in a long maintenance-free period.
Yes, optional accessories such as sunshade canopies, quick-side-change devices, and automatic water-line systems are available for a tailored setup.
