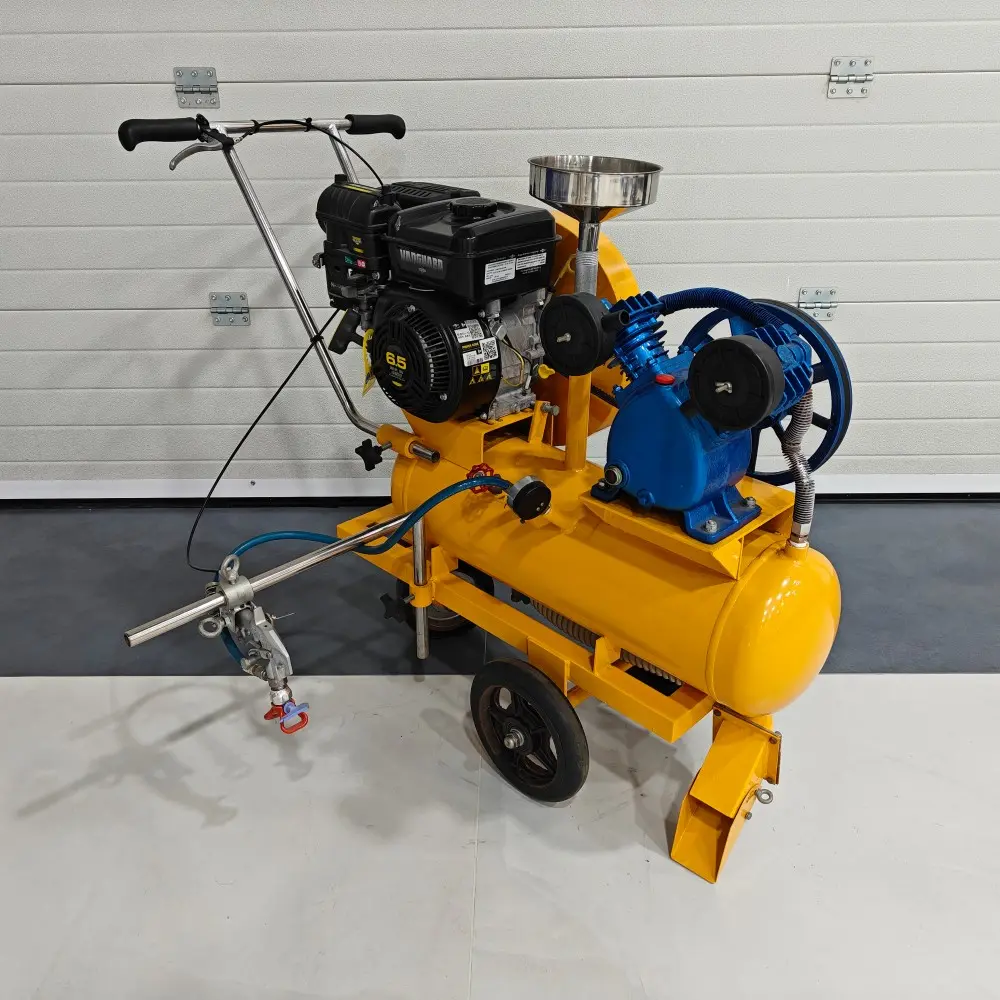

This all-in-one machine works in seamless harmony with an automatic air compressor device for spraying tasks. It is engineered to operate with minimal noise, making it suitable for use in various environments, including urban areas where noise pollution needs to be strictly controlled. Moreover, it is a green-friendly option as it causes no pollution during operation, aligning with the global trend towards sustainable construction practices.

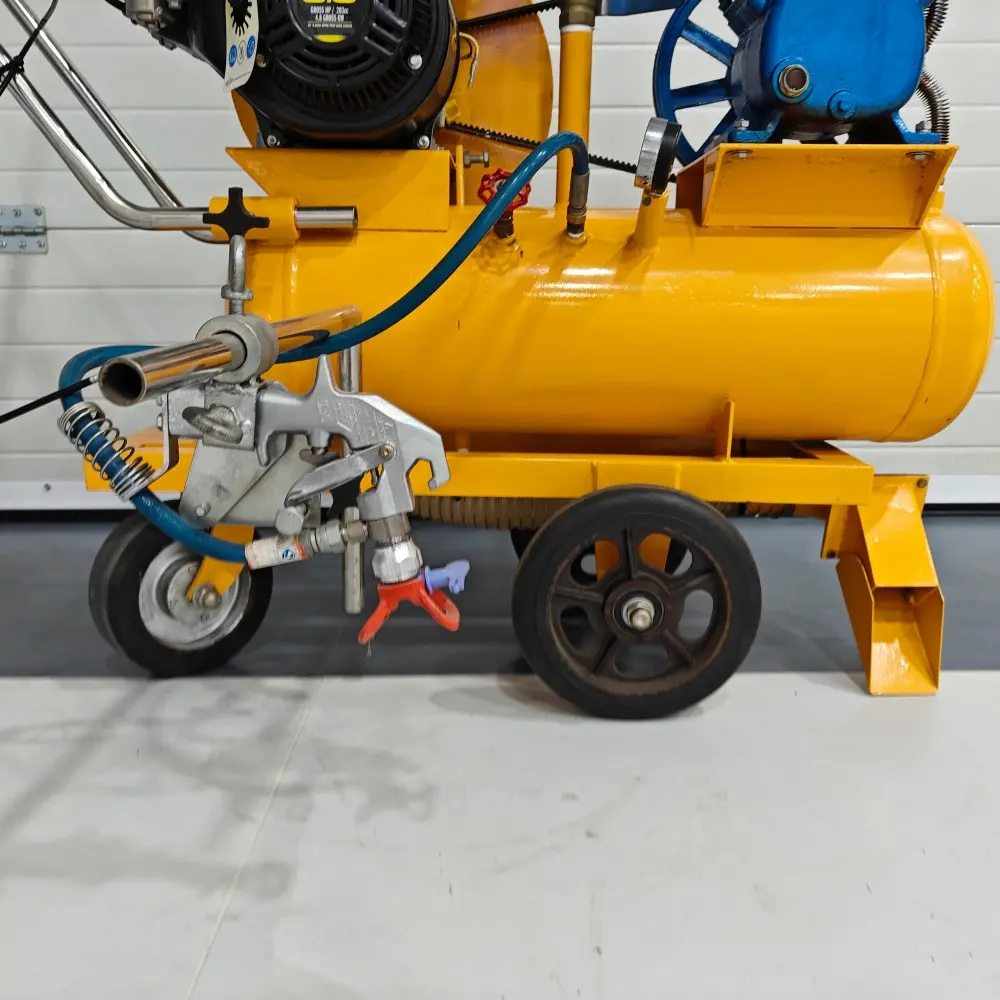

Innovative Design: The lifting design of the guide rod on the spray gun holder enables operators to precisely and conveniently adjust the spraying width according to specific project requirements. This level of control enhances accuracy and reduces waste of base-coat oil.
One of the most significant advantages of this machine is its ability to perform sweeping and base-coat oil application simultaneously. This integrated functionality results in high work efficiency, significantly reducing the time required for road marking projects. Additionally, it alleviates labor intensity as fewer manual operations are needed.
The machine is designed with simplicity in mind, making operation and maintenance straightforward. With high-quality components and excellent craftsmanship, it boasts a long service life, providing long-term value for road marking contractors. It stands as an ideal choice for all road marking construction endeavors.
| Parameter | Details |
|---|---|
| Power | Honda 5.5HP gasoline engine or 6.5HP imported Briggs & Stratton gasoline engine |
| Maximum Spray Pressure | 0.5 mpa |
| Spraying Width | 100 - 450mm |
| Wind Turbine | Turbo-charged wind turbine |
| Wind Force | Adjustable by controlling the throttle |
| Safety Pressure Control | Maintains pressure stability with a one-way ball valve installed |
| Travel Speed | 65 - 70m/min |
| Dimensions | 1.3 × 0.8 × 0.92m |
| Net Weight | 98kg |
