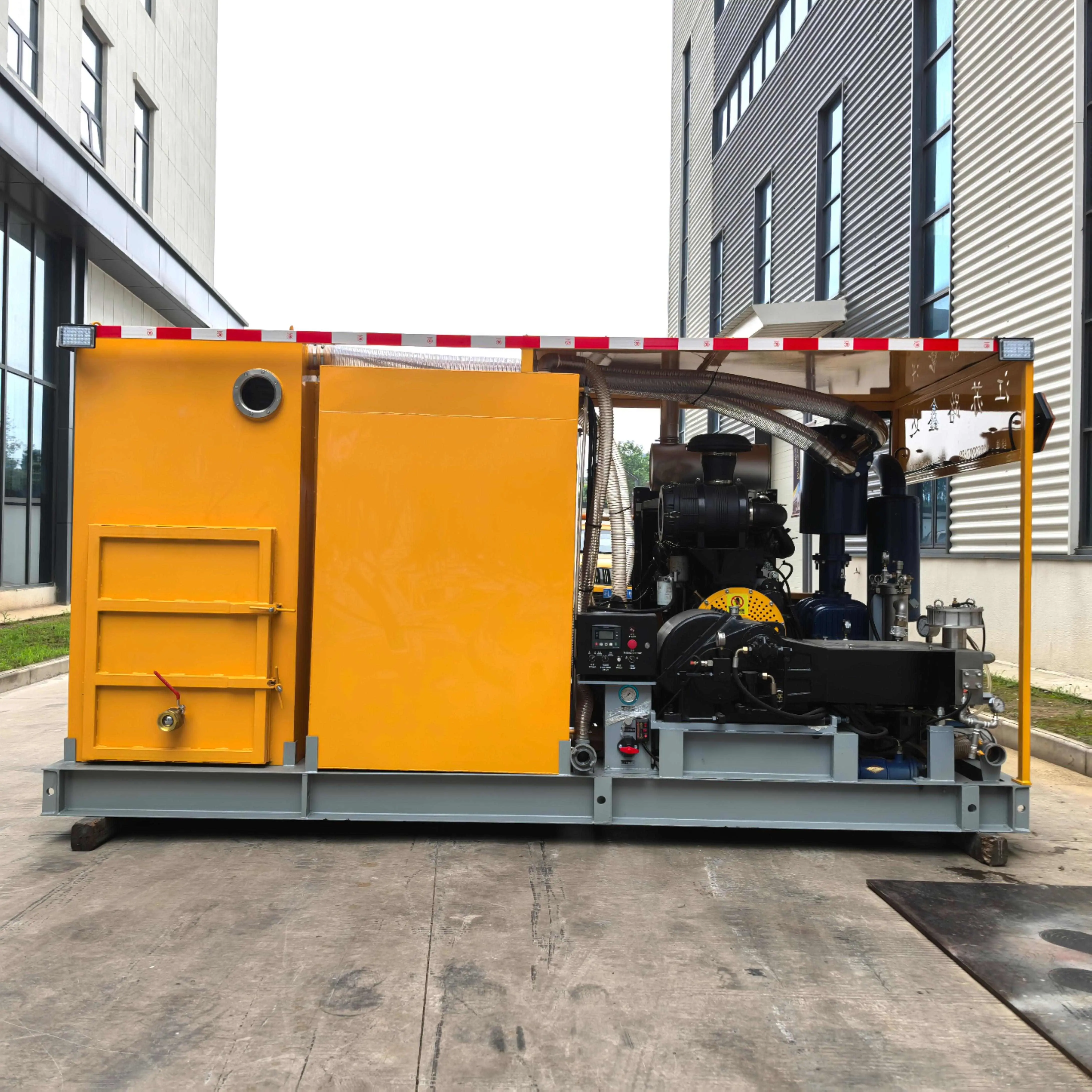

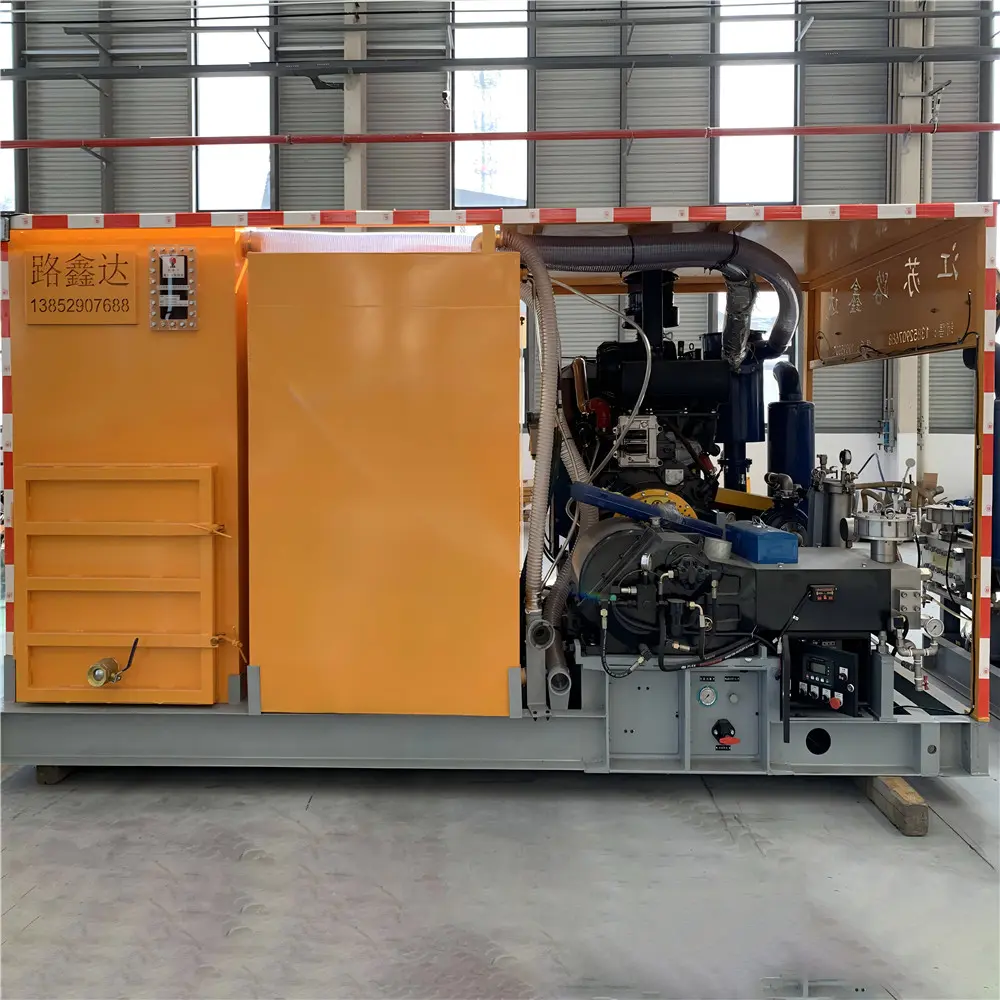

Discount HW-Recycling High Pressure Water Jetting Removal Machine: Efficient and Eco-Friendly Solution for Water-Based Debris Removal Manufacturer, Suppliers

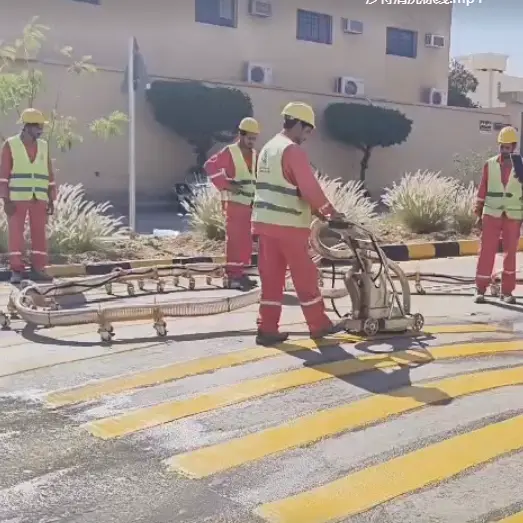

High-pressure water jetting wire removal technology is not only favored for its excellent removal effect, but also has relatively little damage to the road surface. At the same time, the traditional wire removal process is prone to generate a lot of dust during operation, which not only affects the surrounding environment, but also poses a threat to the health of workers. Therefore, when carrying out the traditional wire removal process, a series of dust reduction measures must be taken to reduce the impact on the environment and personnel. However, the emergence of high-pressure water wire removal technology has effectively solved this dust problem. It can recycle wastewater and residues through specific equipment while removing the old wire, thereby achieving environmental protection and resource recycling. In addition, high-pressure water jetting wire removal technology also simplifies the construction process. It reduces tedious processes such as cleaning, dust reduction, and asphalt oil covering, thereby significantly improving construction efficiency. In this way, not only the time of road occupation construction is shortened, but also the impact on traffic is reduced, so that the road can be restored to normal traffic faster.By changing the pressure, the marking can be removed without damage, and the marking area can be cleaned. Adapting to the construction environment in Saudi Arabia, these machines efficiently complete dual tasks and keep the road surface clean.

Product Description

⚙️ Technical Parameters

1600kg 36L Parameter Table

Parameter Details
EngineWeifang Huadong Six-Cylinder National II Engine
Power173kw
RPM1800r/min

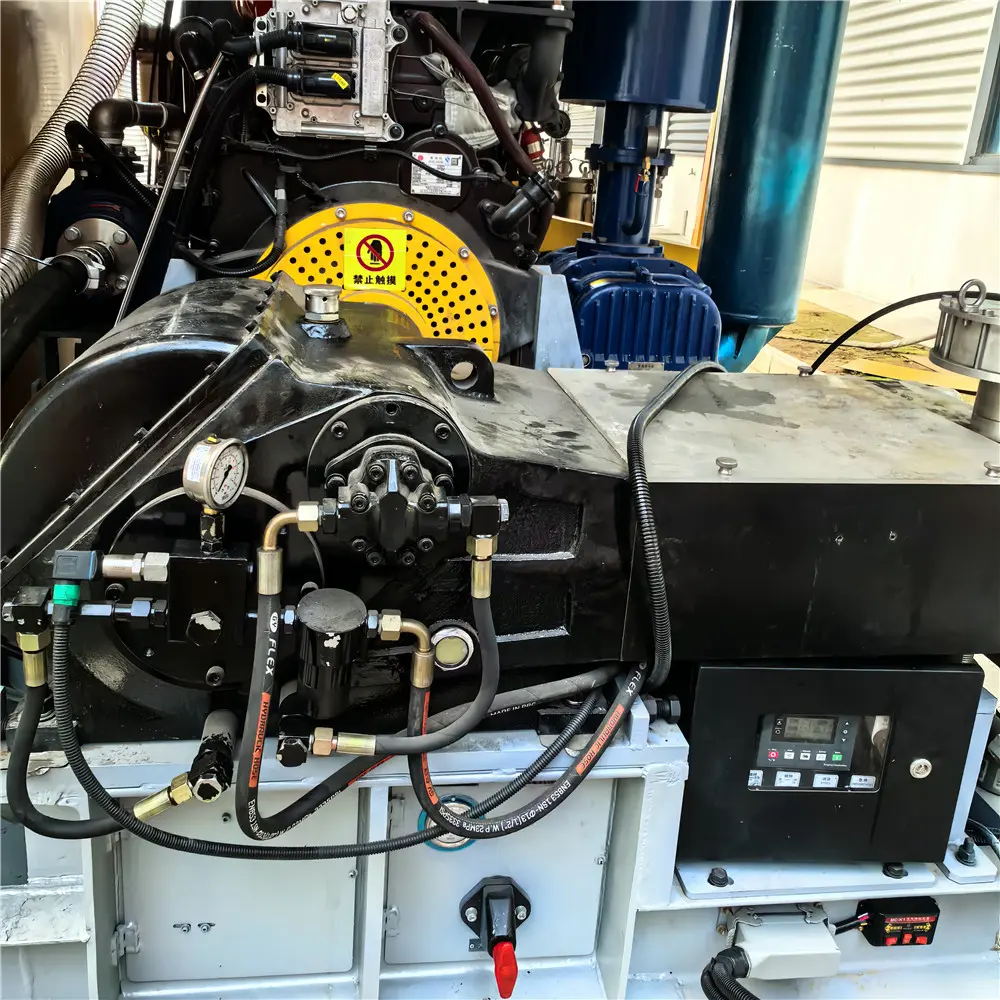

Pump Speed530r/min
Pressure160mp
Flow Rate36L/min
Piston Diameter20mm (Ceramic piston material)
Piston Stroke85mm (Ceramic piston material)
High-Pressure SealImported molded seal
Water Slag SeparationHydraulic self-unloading function, forced lubrication system, and oil cooling system
Burst Disc High-Pressure GaugeImported

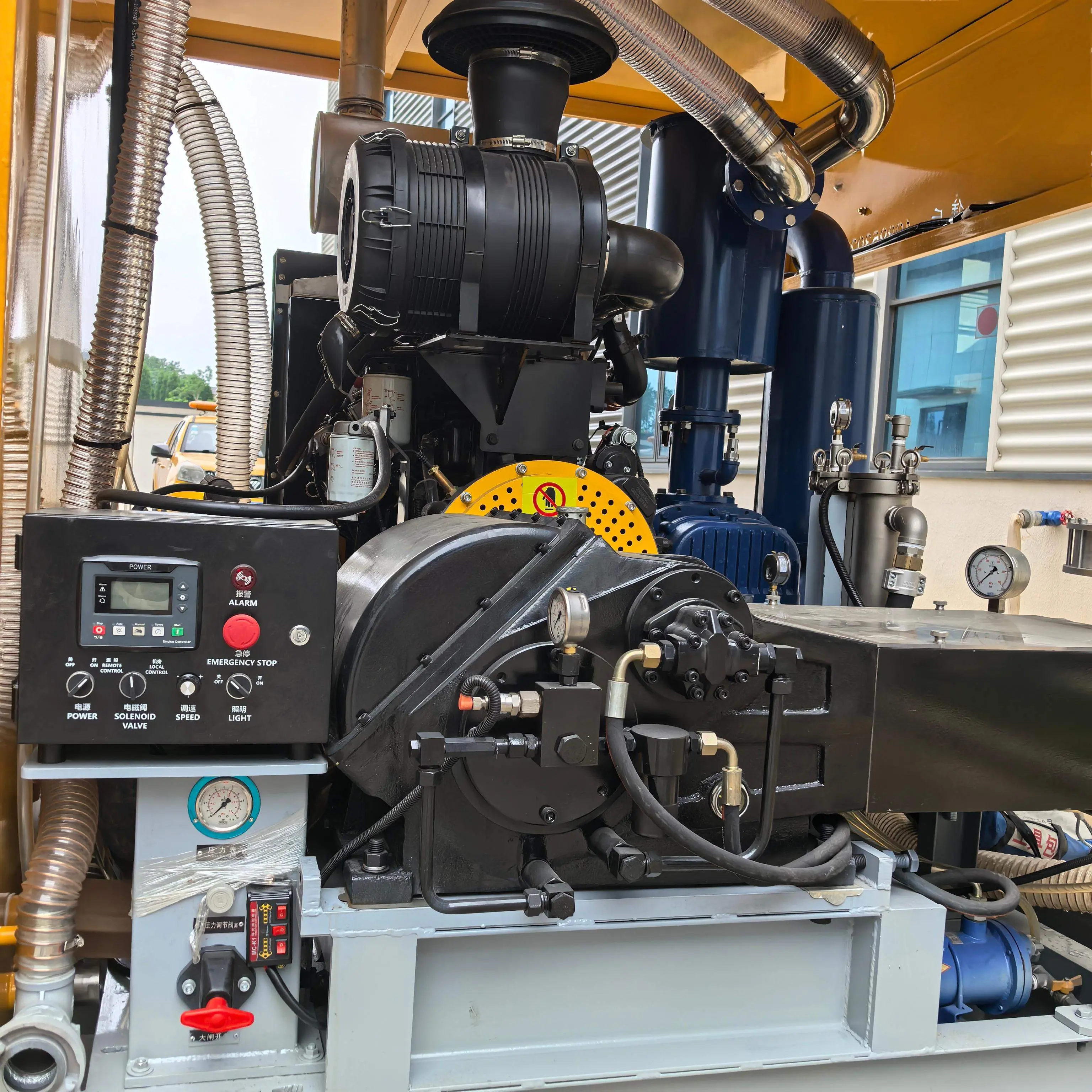

Monitoring Instrument BoxFull computer monitoring instrument box
Pressure PumpFront-mounted pressure pump, maximum 6kg boost
Water Supply Pipeline SystemStainless steel and crimped hoses

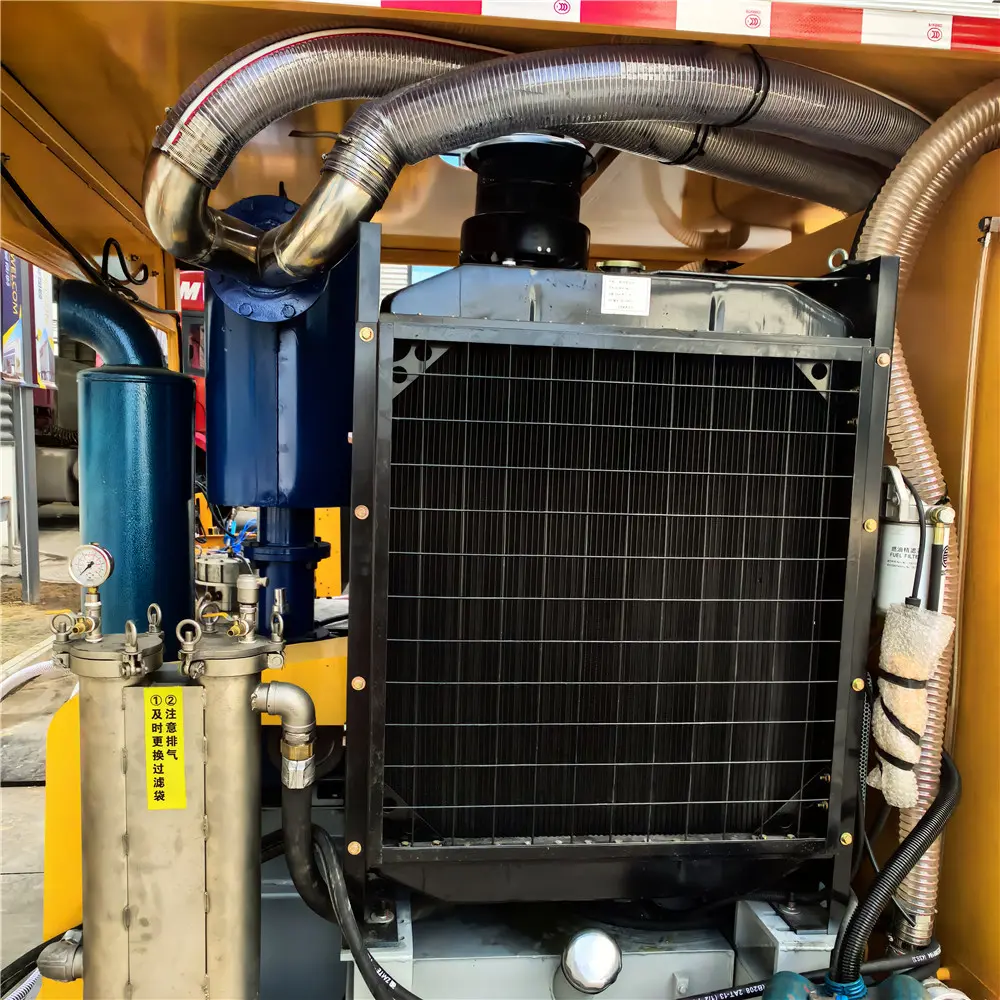

FilterDual-layer stainless steel vertical filter, two-stage filtration
Water Supply Protection SystemIncluding low-pressure water supply protection system
Recovery SystemSSA vacuum pump, pressure -0.4bar
Water TankClean water tank 3.7T, sewage tank 4T (customizable)
Dimensions4.1m*2m*2m (customizable) (standard one-beam frame)
WeightApproximately 5T

2000kg 48L Parameter Table

Parameter Details
EngineWeichai Four-Cylinder Stage III Emission
Power154kw
RPM2200r/min
Pump Speed370r/min
Pressure200mp
Flow Rate48L/min
BearingsJapanese NSK
PistonTungsten Carbide 19.05
High-Pressure SealImported Molded Seal
Water Slag SeparationHydraulic self-unloading function, forced lubrication system, and oil cooling system
Safety FeaturesImported safety burst diaphragm, high-pressure gauge (imported), and full computer monitoring console
Pressure PumpFront-mounted pressure pump, maximum 6kg boost
Water Supply Pipeline SystemStainless steel and crimped hoses
FiltersDual-layer stainless steel vertical filter, two-stage filtration
Water Supply Protection SystemIncluding low-pressure water supply protection system
Recovery SystemSSA vacuum pump, pressure -0.4bar
Water TanksClean water tank 3.7T, sewage tank 4T (customizable)
Dimensions4.1m*2m*2m (customizable) (standard one-beam frame)
WeightApproximately 5T
Key Features

Advanced High-Pressure Water Technology

The HW-Recycling High Pressure Water Removal Machine is equipped with state-of-the-art high-pressure water technology that ensures efficient removal of water-based debris. The machine utilizes powerful water jets to break down and remove stubborn residues, ensuring a thorough and effective clean.

User-Friendly Design

Designed with user-friendliness in mind, it features an intuitive control panel that allows operators to easily adjust settings and monitor the cleaning process. The ergonomic design ensures ease of operation and maintenance, making it accessible for all users.

Durable and Reliable Construction

Built to last, the machine is constructed with high-quality materials and components. Its robust construction ensures long-lasting performance and minimal maintenance requirements, even in rigorous daily industrial use.

Cost-Effective and Eco-Friendly Solution

By using high-pressure water to remove debris, the machine reduces the need for chemical cleaners, minimizing environmental impact. The energy-efficient design further lowers operational costs.

Advanced Safety Features

Safety is a top priority, equipped with safety guards, emergency stop buttons, and other mechanisms to prevent accidents. Low noise levels also protect operators' hearing.

🚀 Application Scenarios

Construction Industry

Efficiently remove water-based debris from construction sites, including concrete residue and mortar, ensuring a clean and safe environment.

Manufacturing Sector

Ideal for cleaning industrial equipment, machinery, and floors, improving overall operational efficiency and safety standards.

Waste Management

Provides an eco-friendly solution for processing water-based waste in containers and recycling bins before disposal.

Recycling Centers

Ensures recycled materials are clean and ready for reuse, improving the quality of products in a circular economy.

Small and Medium Enterprises (SMEs)

A cost-effective solution for smaller operations looking to adopt environmentally friendly cleaning and waste management practices.

📝 Conclusion

The HW-Recycling High Pressure Water Removal Machine is an efficient, durable, and eco-friendly solution for removing water-based debris. With its advanced technology and user-friendly design, it serves as a reliable choice across construction, manufacturing, and recycling industries, contributing to a more sustainable environment.

Frequently Asked Questions
What materials are the pistons made of?
The pistons are made of high-durability materials such as Ceramic or Tungsten Carbide, depending on the specific model chosen.
Can the water tanks and dimensions be customized?
Yes, both the clean water tank/sewage tank capacities and the overall machine dimensions can be customized to meet specific operational requirements.
Does this machine require chemical cleaning agents?
No, the machine utilizes advanced high-pressure water technology to remove debris, which significantly reduces or eliminates the need for chemical cleaners.
What kind of monitoring system does the machine have?
The machine is equipped with a full computer monitoring instrument box and imported high-pressure gauges for real-time tracking of performance.
Is the machine suitable for indoor use?
Yes, its advanced safety features and low noise levels make it suitable for various environments, including indoor manufacturing facilities.
What is the recovery system capability?
The system features an SSA vacuum pump with a pressure of -0.4bar for efficient waste and water recovery.
