1 / 4

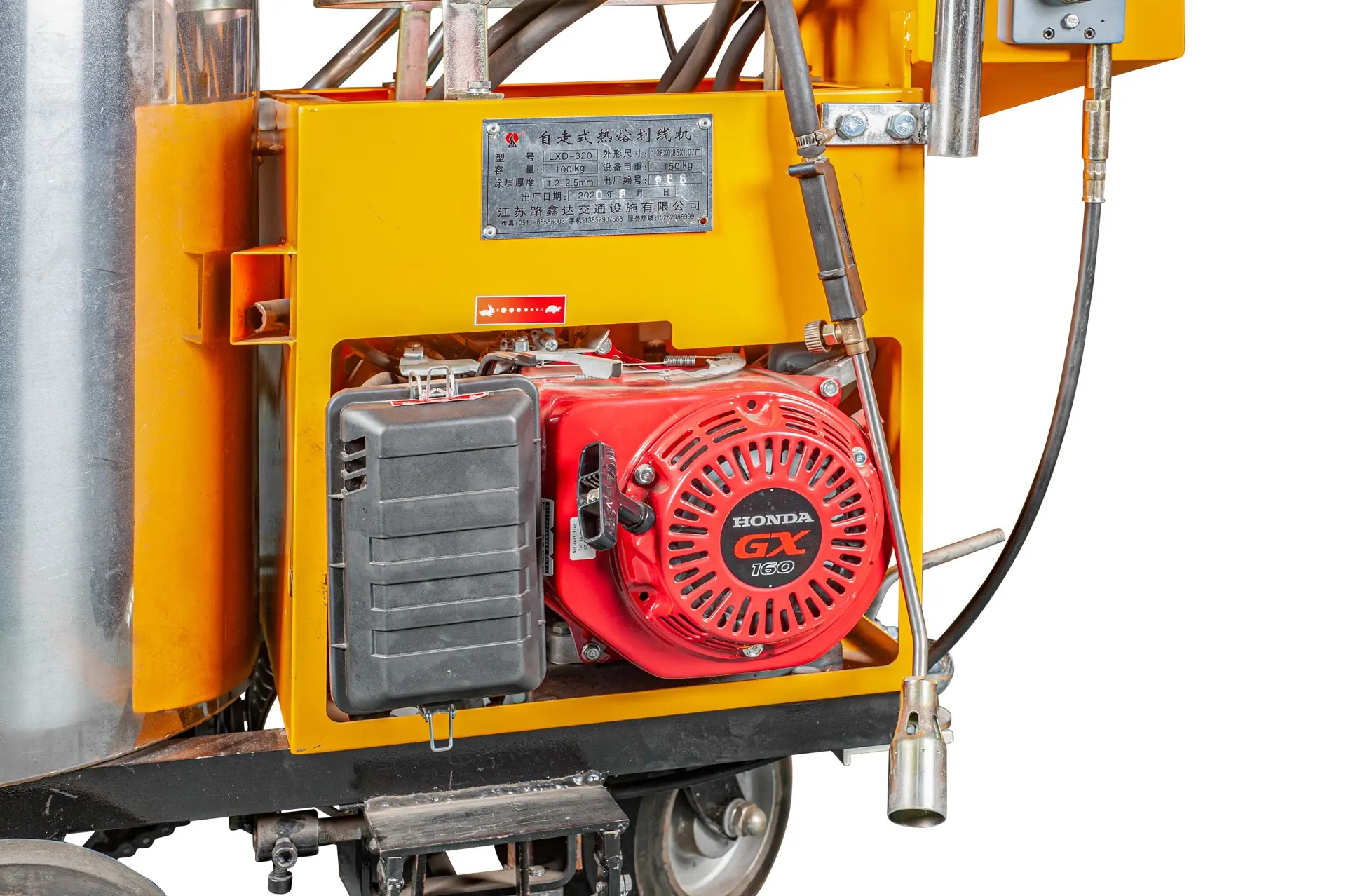

| Engine | Japanese Honda 5.5HP gasoline engine |
| Thermotank | Double layer moisturizing heating bucket, capacity 120kg, plug-in manual stirring device, detachable design |
| Volume of Glass Bead Box | 10kg per box |
| Paint Pot Width | Replaceable (50/100/150/200/300/400/450mm); Thickness range 1.2-2.5mm |
| Working Speed | >1500m/h |
| Line-drawing Bucket | High precision ultra-thin material, wear-resistant bottom knife, anti-deformation scraper structure for even marking |
| Slope of Climb | 15° |
| Tires | Wear-resistant rubber wheels; Rear wheel equipped with locator for straight or curved lines |
| Heating Method | 15kg oil liquefied gas tank supplying heater and nozzles; controlled by ignition gun |
| Size | 1.23 * 0.85 * 1.15m |
| Weight | 170kg |
Features a self-propelled system that ensures smooth and consistent movement. This design eliminates manual pushing, reducing operator fatigue and increasing overall efficiency with a high-quality engine.
Includes a 120kg double-layer stainless steel thermal insulation heating bucket. Allows for extended marking periods without frequent refills, featuring a quick-remove plug-in mixing device.

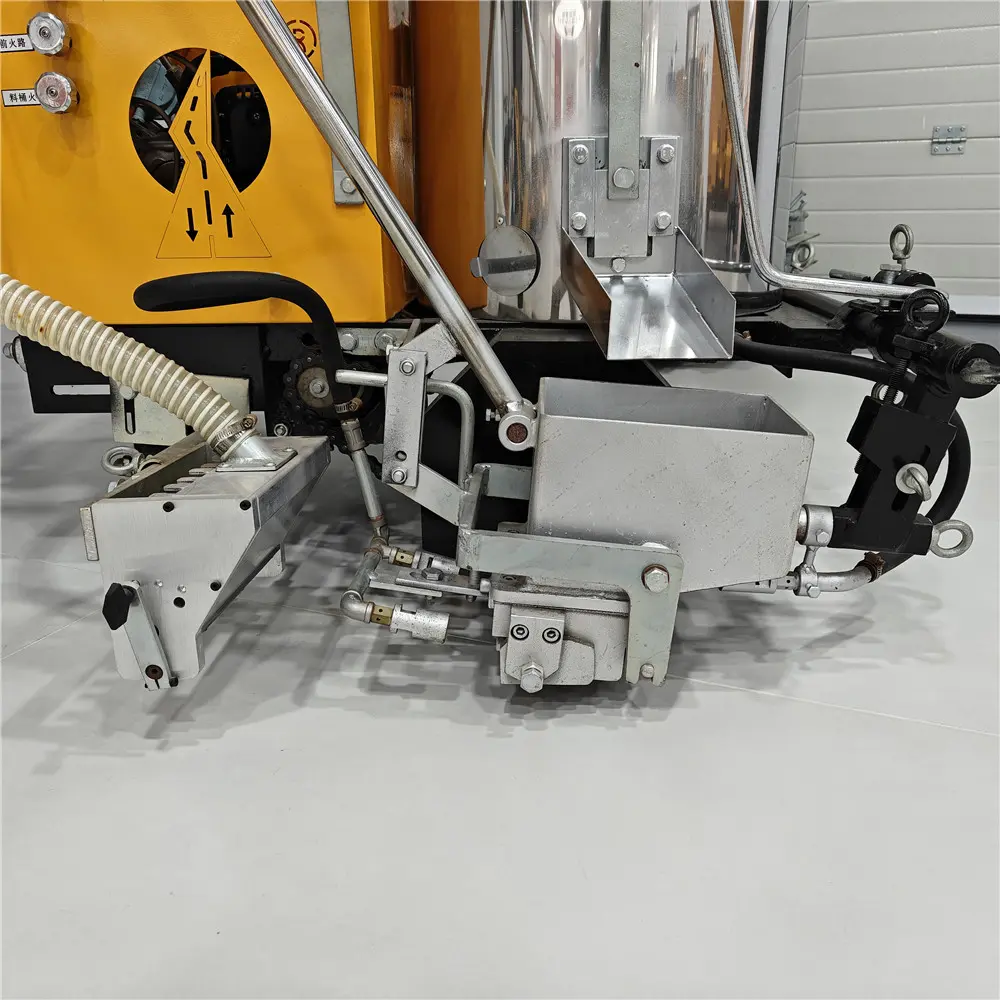

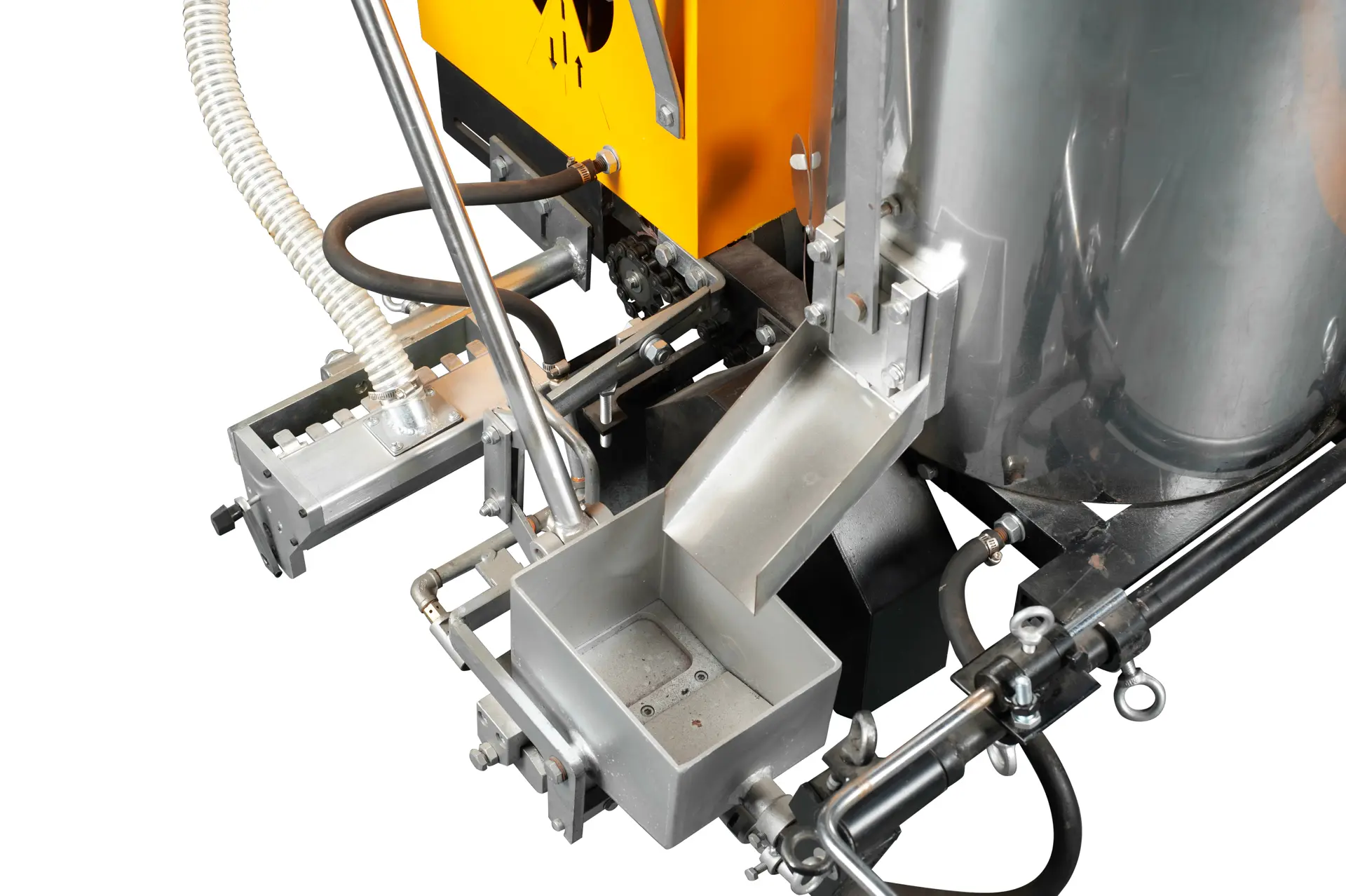

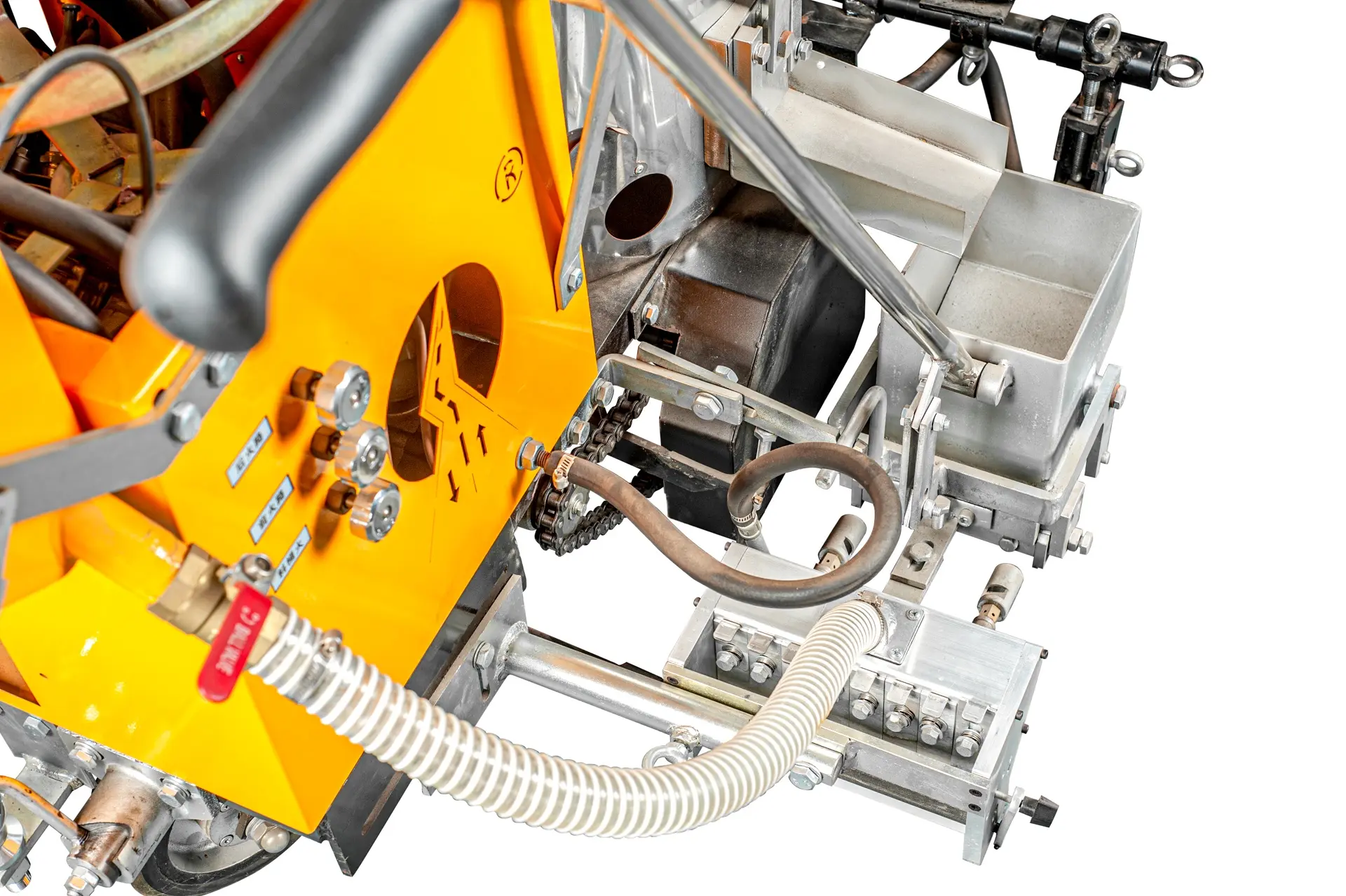

Equipped with a high-precision head for uniform application. Adjustable widths (50mm to 450mm) and thicknesses (1.2mm to 2.5mm) to meet diverse project requirements on any road type.
Designed with an intuitive control panel for easy setting adjustments. The ergonomic and compact design makes it ideal for working in tight spaces and navigating curved roads easily.
Perfect for providing clear lane lines and stop lines. High-capacity and precision ensure long-lasting visibility under heavy traffic conditions.
Creates professional markings like directional arrows and pedestrian paths. Compact size allows for easy maneuverability in tight parking spaces.
Used for temporary lanes and work zones. Its durability makes it suitable for harsh construction environments and challenging conditions.
Ideal for narrow streets and curved roads where high-visibility markings are essential for traffic safety.
Conclusion
The HW-Self-propelled Thermoplastic Marking Machine is a powerful and versatile tool for modern road projects. With its advanced self-propelled design and precision marking head, it is the perfect choice for professionals demanding reliability and efficiency.
