| Essential Parameter | |
|---|---|
| Internal Structure of the Fuselage | The frame structure is insulated with thermal insulation material between the inner shell and the outer cover plate |
| Heating System (Internal) | Double helix full pot inner tank heating system |
| Hydraulic Transmission System | Bidirectional hydraulic stirring, motor BM500 |
| Hydraulic Oil Tank | 0.18m³ (size 900 x 500 x 400) |
| Diesel Tank | 0.18m³ (size 900 x 500 x 400) |
| Diesel Consumption | 4kg per hour * 2 |
| Heating System | The Italian riello diesel version of the stove is equipped with a smart temperature control system that can automatically ignite and extinguish. Maximum calorific value 120kw |

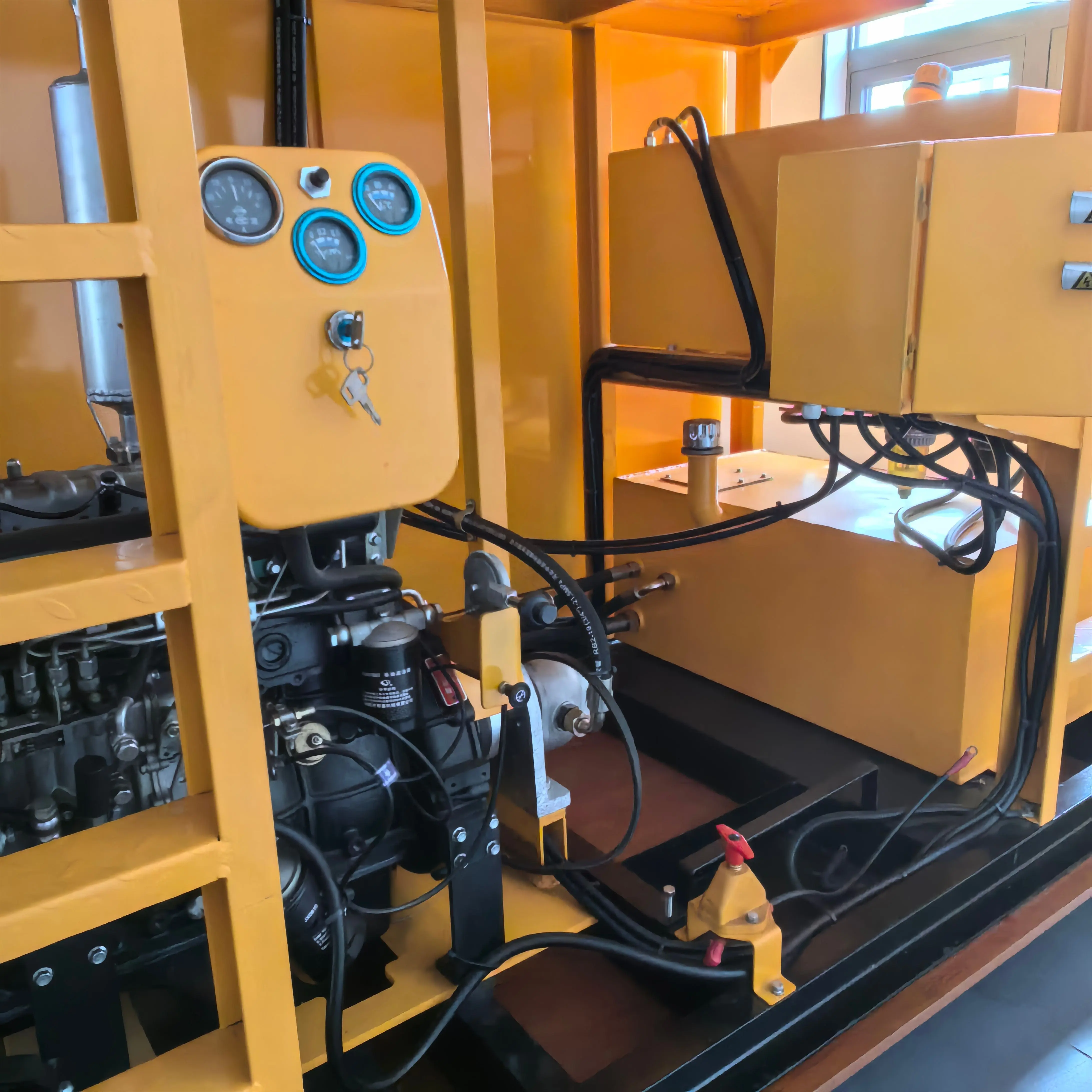

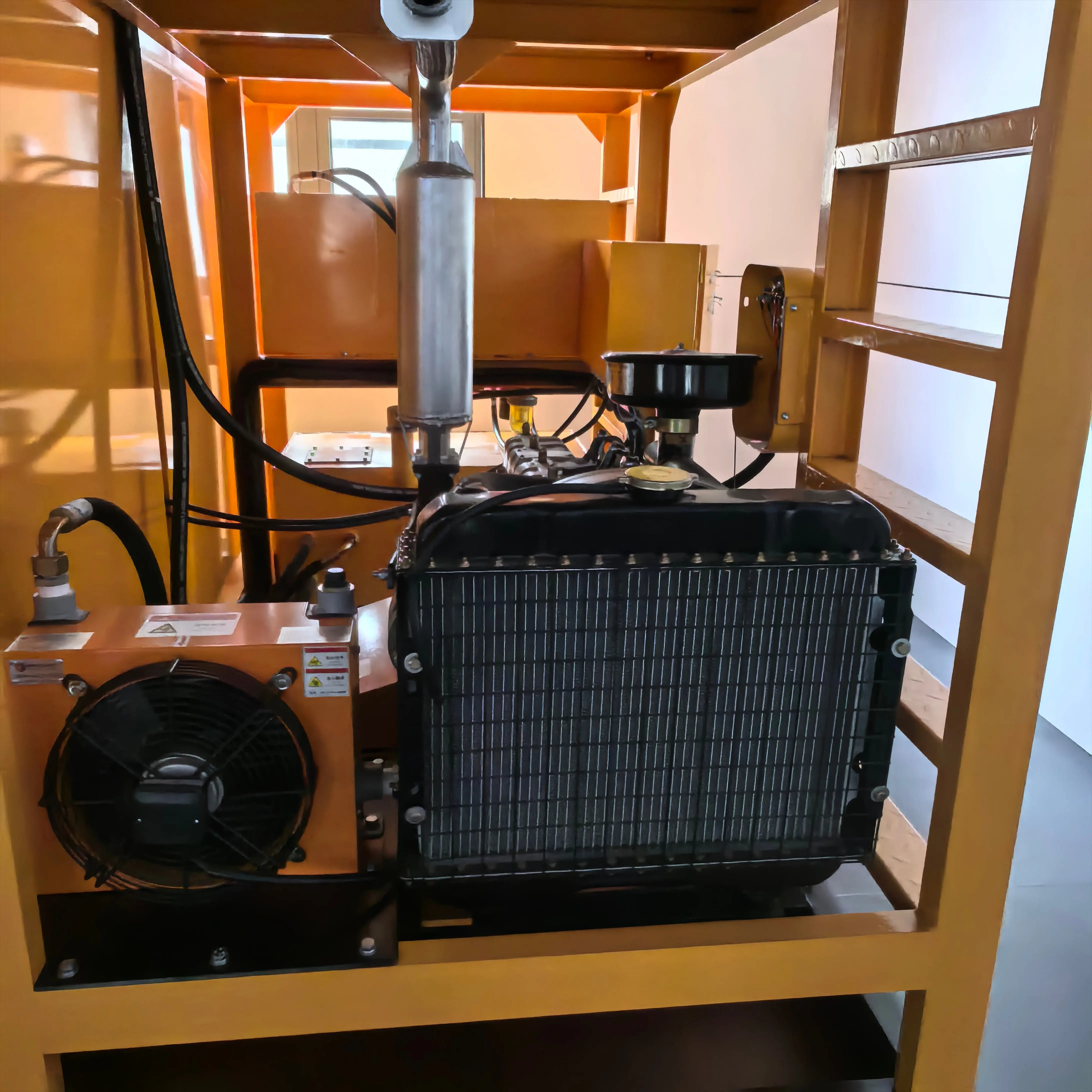

| Diesel Power Plant | 38kw 2400r/min diesel engine. Speed 2400 l/min, equipped with an enhanced AC generator, starter and battery 24 V, 80 AH equipped with air-cooled aluminum cooler |
| Supply Heating | Heat is transferred indirectly by heat |
| Treater | Special wear-resistant steel horizontal shaft |
| Thermoplastic Capacity | 2*1.2m³ (2*2 tons)/(2*3 tons) |
| Total Empty Weight | 2980kg / 3150kg |
| Size | 2.7*2.3*2.65m / 2.7*2.36*3.05m |

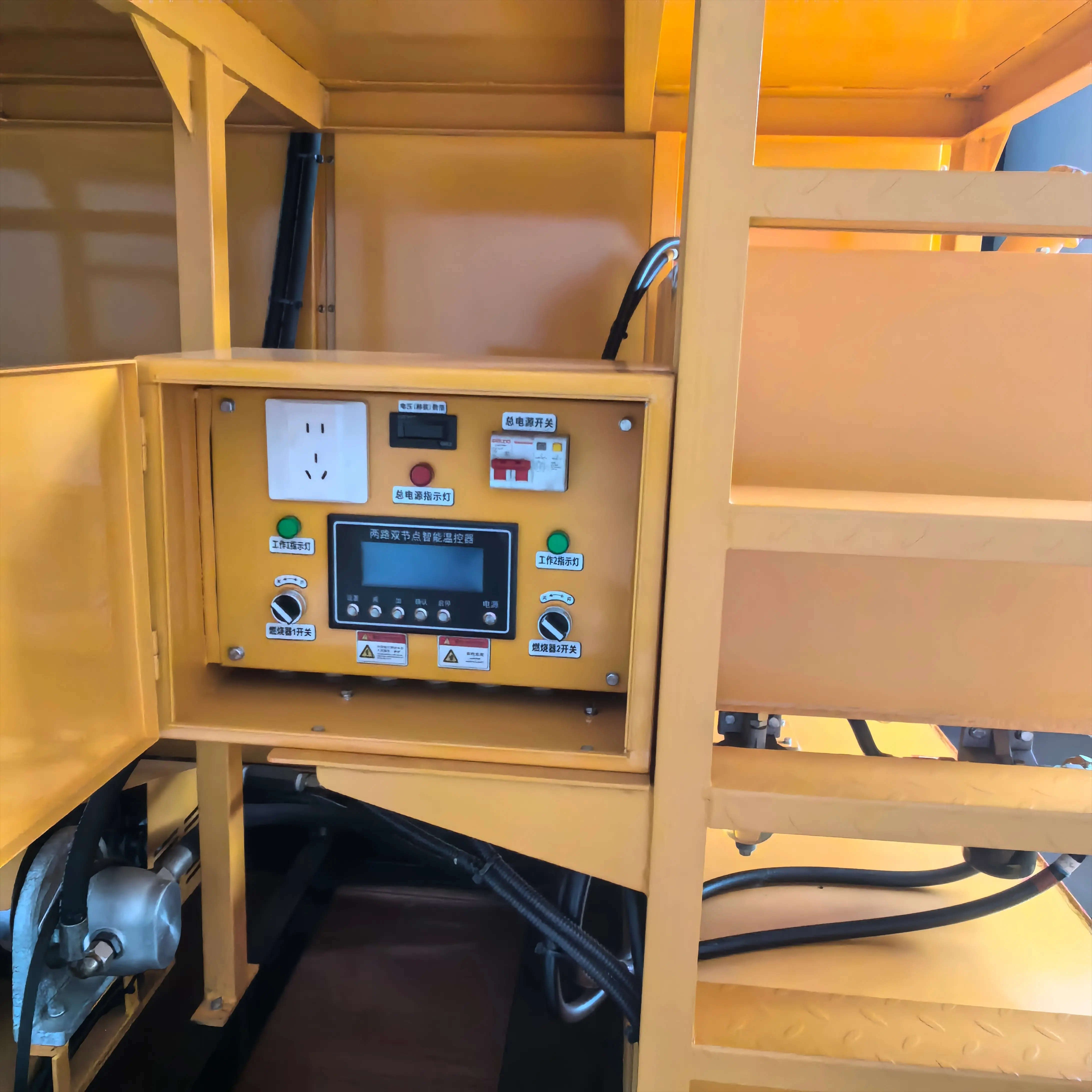

The HW-4T&6T models feature a highly sensitive thermostat that can precisely regulate the temperature of thermoplastic materials within a range from +50°C to +230°C. An integrated display provides real-time and accurate readings.
● Double Helix Full Tank Heating System: Ensures uniform heating and improves combustion efficiency.
● Hydraulic Transmission System: Features bidirectional stepless agitation for precise control.
● Wear-Resistant Stirring Arm: Made from special steel for long-term durability.
● Stainless Steel Construction: Excellent corrosion resistance and durable appearance.
● Safety Features: Includes emergency stop buttons and protective guards to minimize risk.
Widely used in road construction projects. High capacity and precise temperature control make them ideal for melting and mixing marking materials on-site, reducing project delays.
Provides precise and efficient solutions for high-visibility areas. Large capacity ensures clear and durable markings that meet the highest standards.
Versatile tools capable of handling various tasks in different environments, from busy city streets to remote rural roads.
In summary, the HW-4T&6T Energy Efficient Temperature Control Hot Melt Kettle is a powerful and reliable tool for the traffic safety industry. Its advanced temperature control, user-friendly design, and durable construction make it a reliable choice for a wide range of applications.
