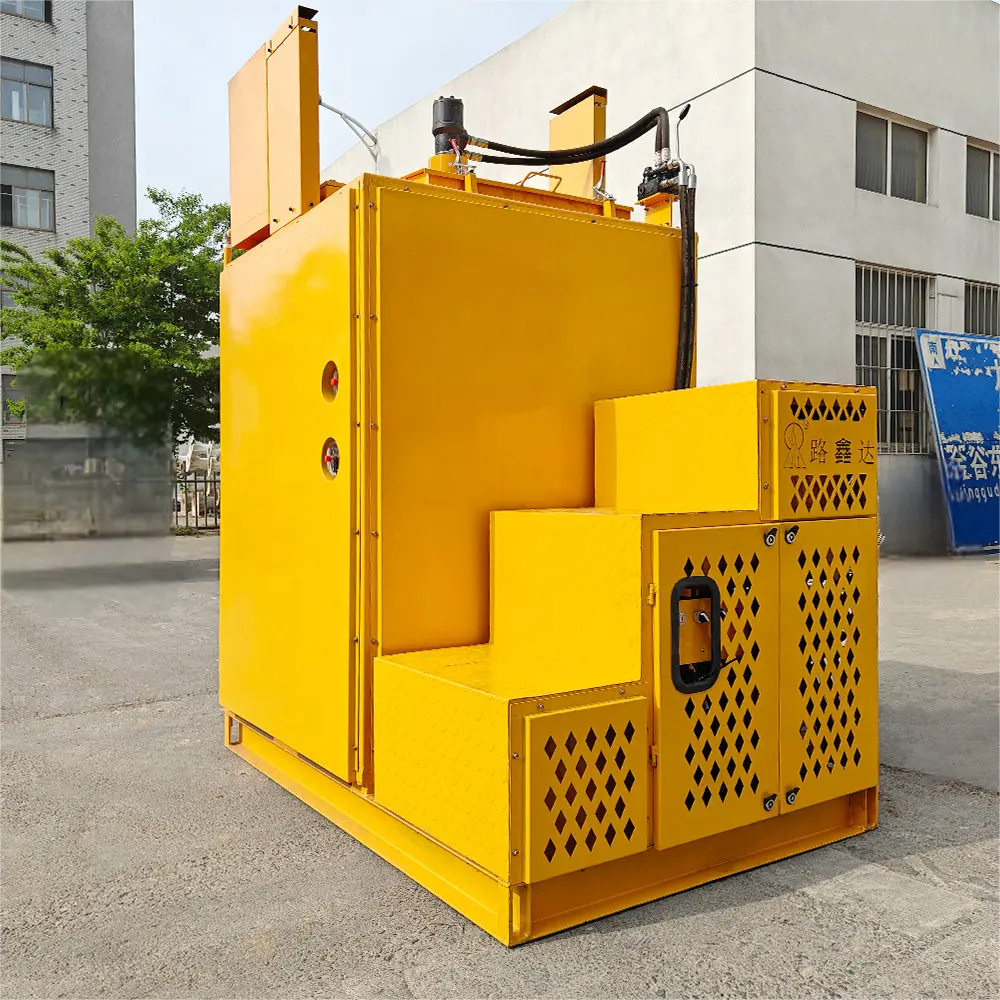

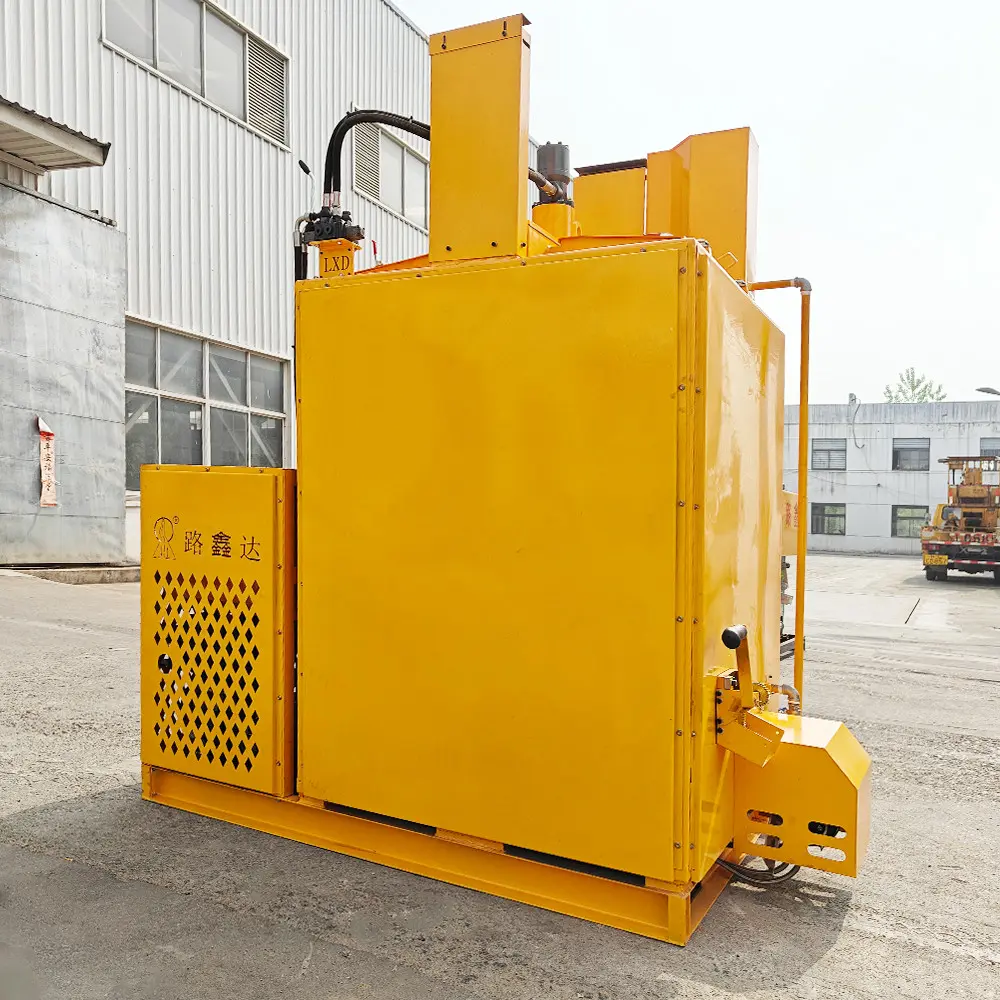

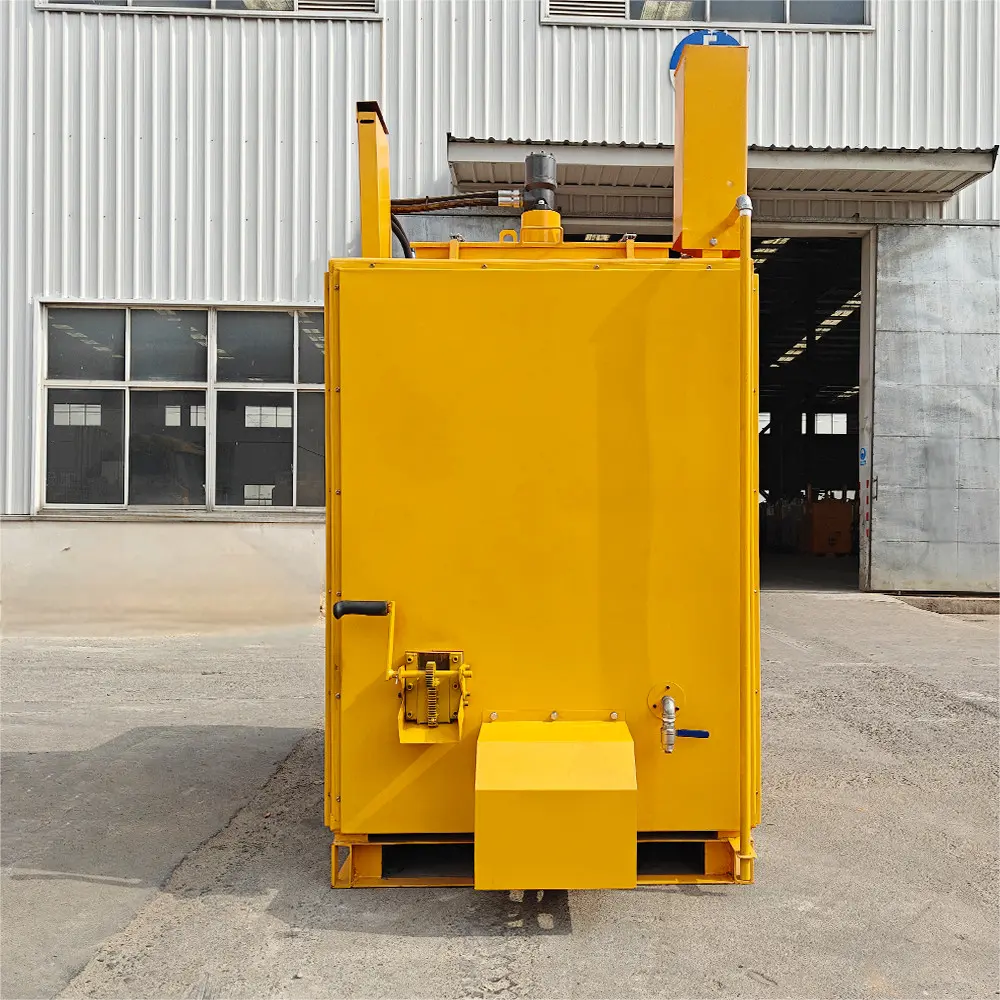

Wholesale HW-1.5T Thermal Oil Temperature Control Kettle Manufacturers, Exporter

1 / 3

Wholesale HW-1.5T Thermal Oil Temperature Control Kettle Manufacturers, Exporter

Equipment characteristics:

1, automatic ignition: the equipment is equipped with an ignition device, the key can open the stove fire, no need to match the ignition source.

2, long life of the pot bottom: the new combustion chamber heating, the pot bottom and around the evenly heated, the heat absorption area is 3.5 times larger than the ordinary hot melt kettle, to solve the problems of the previous pot bottom single side of the heat, the pot bottom is not deformed or damaged, the material in the pot will not burn.

Send Inquiry

Product Description

Equipment Characteristics

Automatic Ignition: Equipped with an ignition device; key-start stove fire eliminates need for external sources.

Long Life Pot Bottom: New combustion chamber provides 3.5x larger heat absorption area, preventing deformation and material burning.

Intelligent Temp Control: Automatic ignition/flame out based on set temperature to save diesel and maintain insulation.

Fuel Saving: Efficient atomization in the imported stove ensures full combustion without black smoke.

Large Paint Capacity: Single cylinder holds up to 1.5 tons with fast discharge capability.

Double Feed Port: 70*31cm ports designed for convenient ton bag usage.

Compact Size: Occupies 25% less space than traditional 1.2-ton double cylinder tanks; more room for paint stacking.

Easy Color Swap: Dual ports allow quick cleaning with a long handle shovel when switching from yellow to white paint.

High Melting Speed: First cylinder heats in 1.5 hours; produces 100 kg of material every 4 minutes thereafter.

Latest Product Parameters

Basic Parameter
Engine	10P air-cooled electric start diesel engine
Kettle Body Structure	Frame structure, thermal insulation board between inner liner and outer cover; Double helix full tank heating system
Transmission System	Hydraulic bidirectional stepless agitation, motor BM315
Hydraulic Tank	0.063 m³
Diesel Tank	0.095 m³
Diesel Consumption	4 kg per hour
Heating System	American diesel version stove with intelligent temperature control
Tank Capacity	Approx. 0.815m³, holds 1.5T hot melt paint
Dimension	1.85 * 1.2 * 2.15m (single cylinder)
Weight	1150kg (single cylinder)

Key Features

Advanced High Efficiency and Energy-Saving Technology

The HW-1.5T incorporates cutting-edge technology that ensures both high efficiency and energy savings. Optimized energy usage maintains top performance for large-scale road marking tasks while reducing operational costs and environmental impact.

User-Friendly Design for Enhanced Productivity

Designed with ergonomics in mind, the HW-1.5T ensures operators work comfortably during long hours. Intuitive controls and easy maneuverability make it suitable for all operator levels, ensuring tasks are completed accurately.

Durable and Reliable Construction

Built with high-quality materials to withstand rigorous daily use in traffic safety industries. Robust construction ensures minimal downtime and maintenance even in demanding environments.

Application Scenarios

Road Construction and Maintenance

Ideal for marking new roads, repainting existing lanes, and creating traffic symbols across different weather conditions.

Parking Lot and Airport Marking

Provides precise solutions for high visibility markings including aisles, arrows, and runway markings with adjustable line width.

Urban and Rural Road Marking

A versatile tool that adjusts to local regulations for both busy city streets and remote rural roads.

Conclusion

In summary, the HW-1.5T High Efficiency Energy-Saving King is the ultimate solution for flexible and efficient road marking. Its advanced technology, user-friendly design, and durable construction make it a reliable choice for achieving unparalleled efficiency and precision while saving energy and reducing costs.

Frequently Asked Questions

How long does it take to melt the paint?

The first cylinder takes approximately 1.5 hours to heat. Once fully burning, it can produce 100 kg of material every 4 minutes.

What type of fuel does this equipment use?

The equipment uses diesel fuel and features an American diesel version stove for efficient atomization and combustion.

Is it difficult to switch between different colored paints?

No. The unit features double feeding ports that act as cleaning windows, allowing workers to quickly clean out old material when switching colors.

What is the total capacity of the tank?

The tank has a capacity of approximately 0.815m³, which is capable of holding up to 1.5 tons of hot melt paint.

How does the intelligent temperature control work?

The system automatically ignites the furnace when the temperature drops below the set value and extinguishes it when the limit is exceeded to save fuel.

Does the equipment require a separate ignition source?

No, it is equipped with an automatic ignition device where a simple key turn starts the stove fire.
