| Parameter | Details |
|---|---|
| Gasoline Engine | A powerful 5.5HP Honda engine, known for its reliability and high-performance output. |
| Pump Operation Mode | Equipped with a built-in reversing hydraulic pump, available as either a Graco or Wagner pump. |
| Maximum Flow Rate | 9L, enabling rapid and efficient material application. |
| Spray Width | Single-gun: up to 300mm; Double-gun: 50-600mm versatility. |
| Spraying Pressure | Robust 23mpa for long-lasting and clear finish. |
| Marking Speed | Remarkable 13km/h for reduced project time. |
| Nozzles | Imported from Graco (0.048 for single-gun, 0.033 for double-gun). |
| Dimensions | Compact 1.7 x 0.9 x 1.0m for easy maneuverability. |
| Weight | 140kg (Graco pump) / 142kg (German pump). |
Utilizes advanced technology that eliminates the need for compressed air, ensuring a consistent spray pattern and even application for durable road markings.
Flexibility to handle tasks from narrow lane dividers to wide crosswalks, with thickness ranging from 0.2 to 0.4 mm.
Engineered for precise alignment and effortless movement even on uneven terrain, reducing physical strain on operators.
Features an aluminum hydraulic oil tank and imported components for excellent heat dissipation and long-term reliability.
Road Construction and Maintenance: Suitable for marking new roads, repainting lanes, and creating traffic symbols in various weather conditions.
Parking Lot Marking: Provides precise solutions for parking spaces, aisles, and directional arrows with high maneuverability.
Airport and Highway Marking: Powerful hydraulic system ensures high visibility and durability for critical transportation infrastructure.
Urban and Rural Road Marking: Customizable settings meet local regulations and standards across different environments.

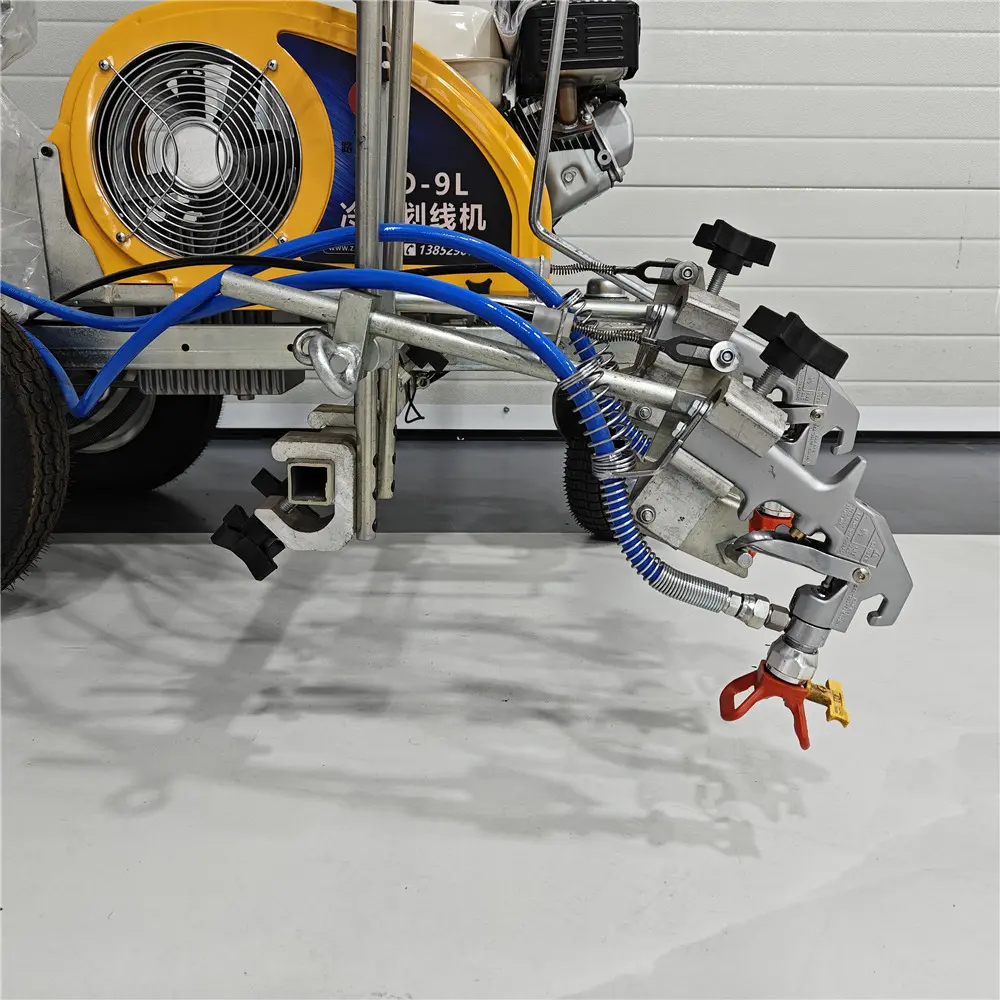

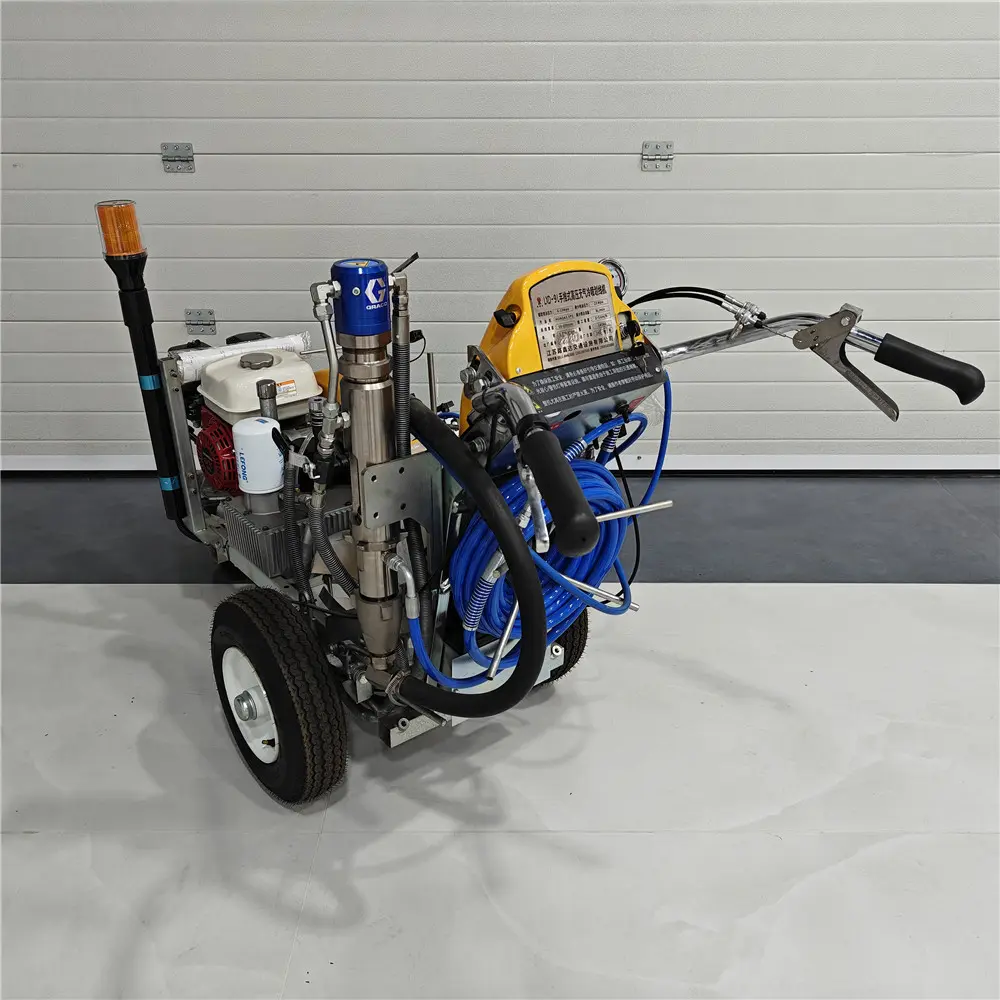

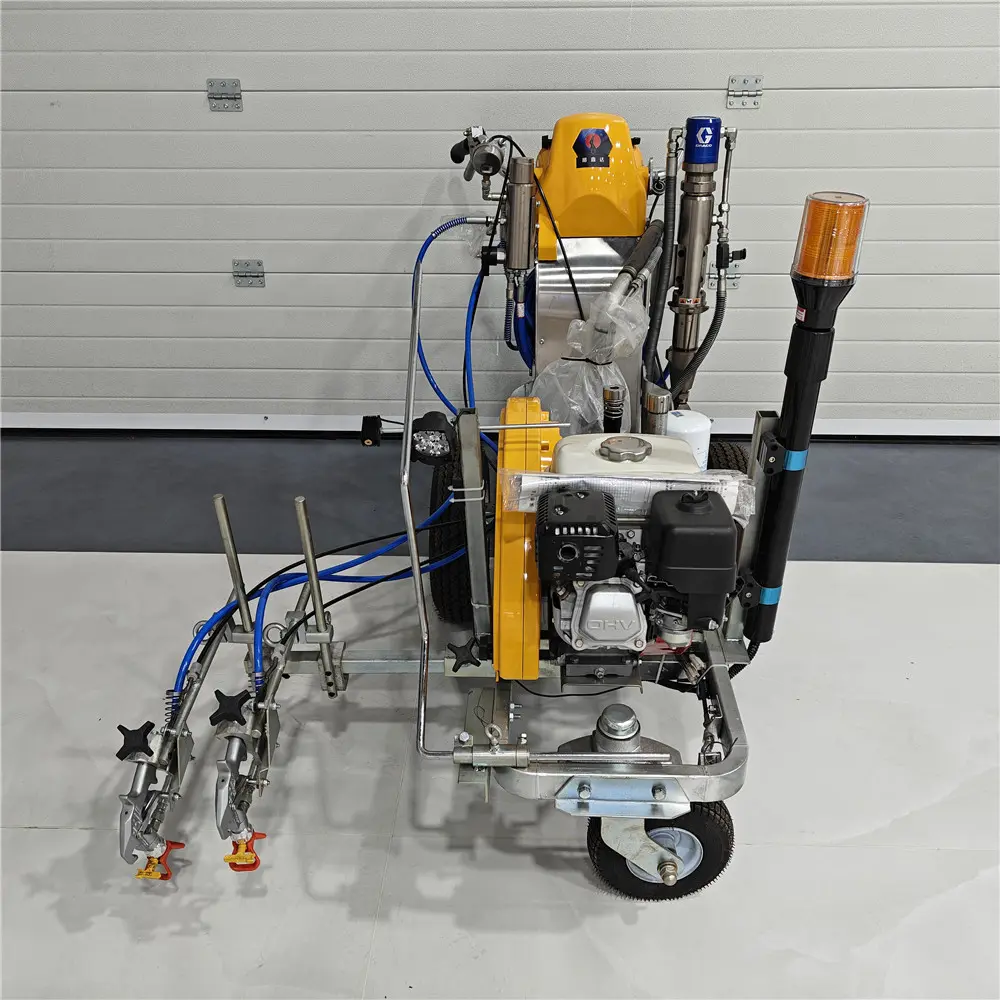

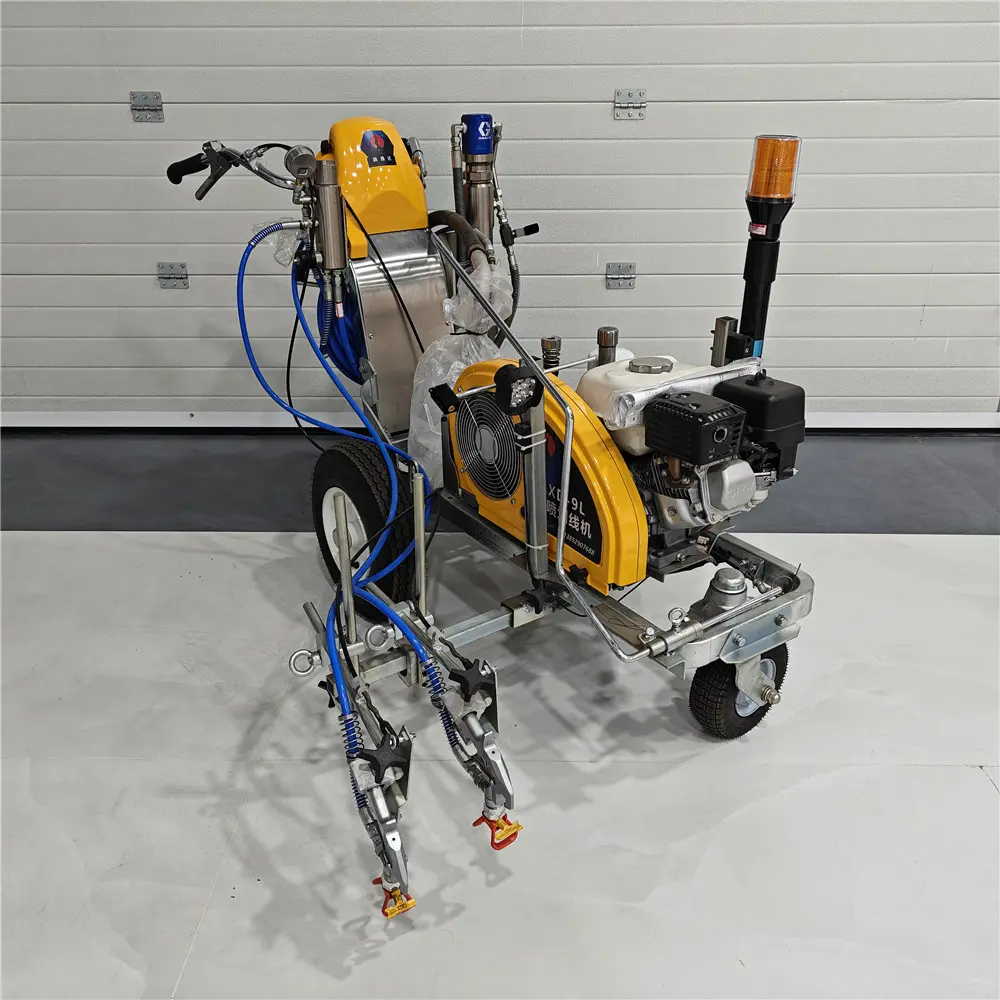

The HW-9L Hand-Push High-Pressure Airless Cold-Spray Road Marking Machine is a premier tool for efficient and precise road marking. Its advanced technology, user-friendly design, and durable construction make it a reliable choice for a wide range of applications in the traffic safety industry.
