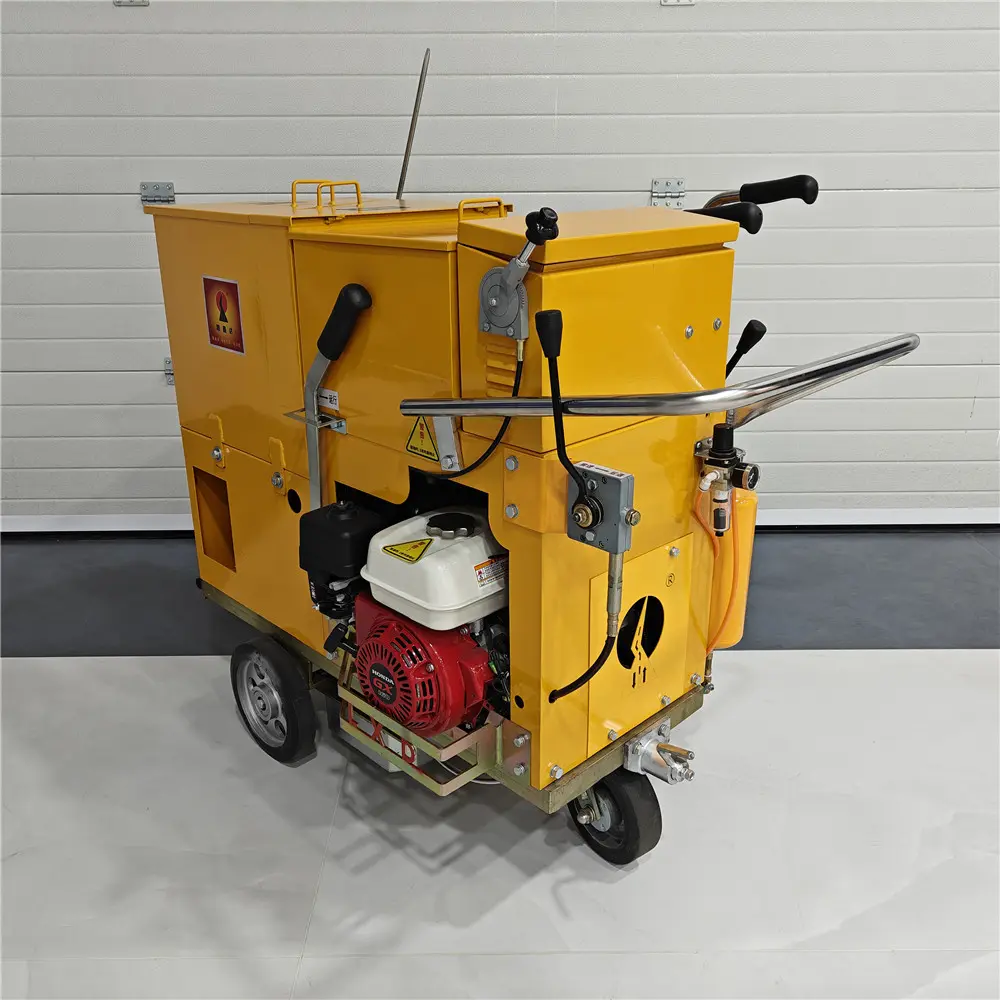

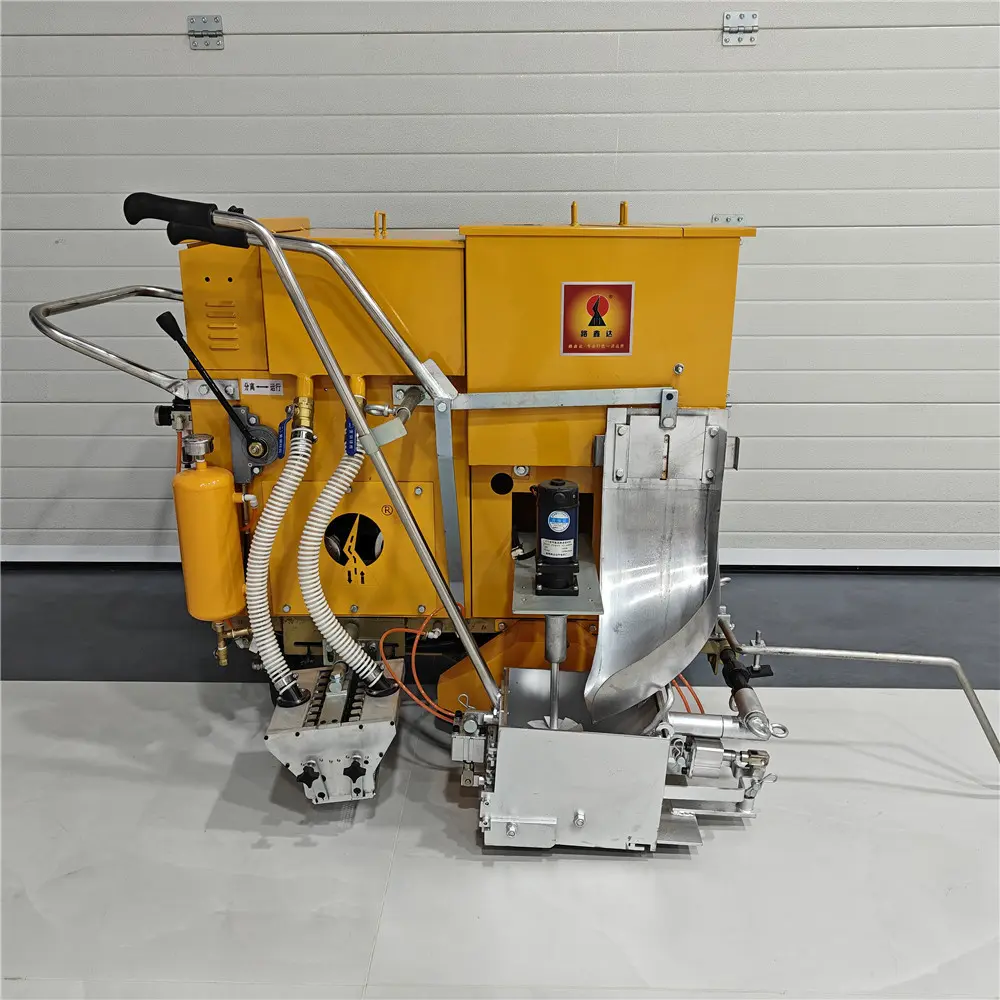

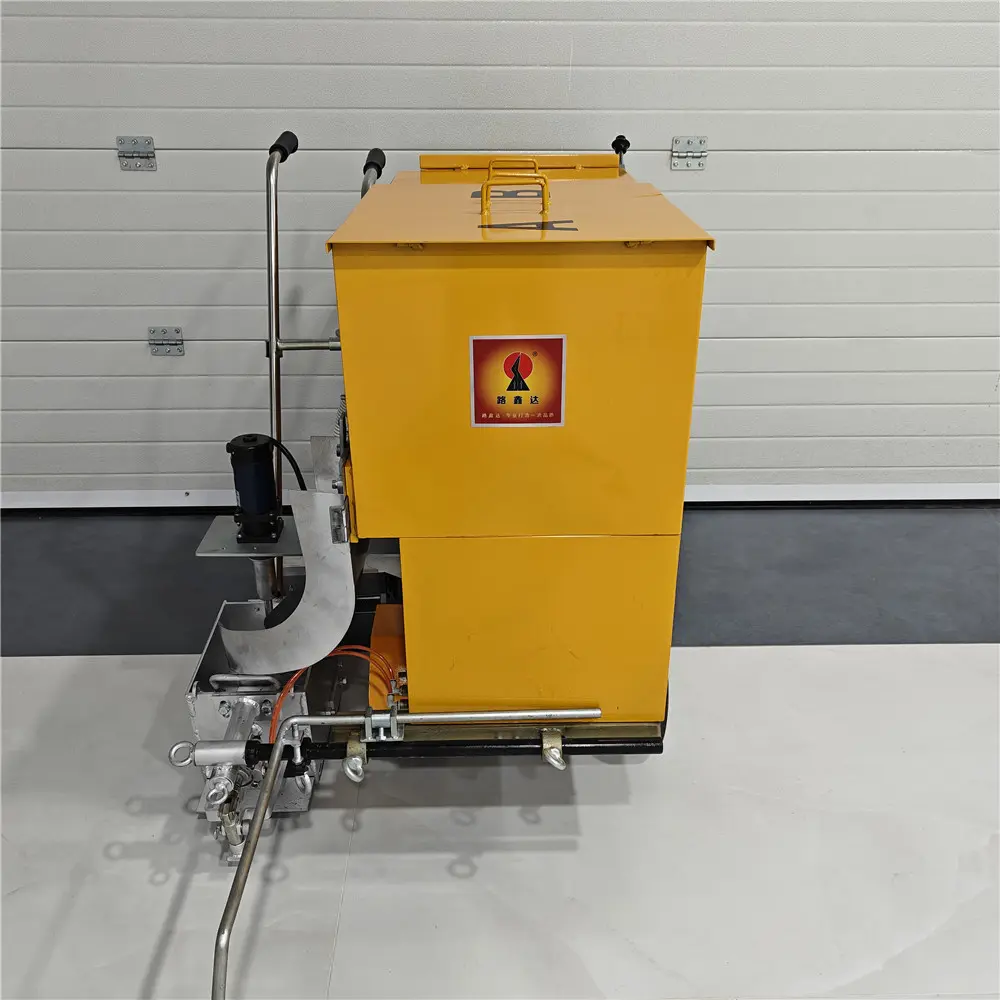

The two-component oscillating, throwing and scraping multifunctional integrated marking machine is a special machine for two-component marking construction. This self-propelled equipment can not only meet the two-component oscillation, throwing and scraping multifunctional one-machine three-purpose marking functions, but also can construct various forms of two-component markings such as rib type, throwing and scraping type, ordinary type, etc.

The equipment adopts an efficient and energy-saving power system, which greatly reduces the labor of construction, has a reasonable design, simple operation, and stable performance. The marking lines are beautiful, of excellent quality, and widely favored by customers.

Product Description

Technical Parameters

Laying Parameters

EngineHonda gasoline engine, OHV4 stroke air cooled, power 5.5HP
Walking Drive ModeAutomatic hydraulic continuously variable transmission
Working Speed5m/min
Maximum Gradability15°
Line Thickness1.5-2.5mm
Paint Usage2-3kg/m²
BunkerPneumatic opening and closing, pneumatic forming
Paint Bucketcapacity 60kg*2
Double Glass Bead SpreaderAutomatic synchronous clutch sowing capacity 25kg*2
Amount of Glass Beads Used500-600g/m
Plastic Core-rubber-tiresThe iron hub is specially made of heat-resistant rubber, and the rear wheel is equipped with a locator to make the body move forward along the straight line
Width of the Line150/200/300/400/450mm (customizable) can be selected
SizeLength 1.3 * width 1 * height 1.17m (excluding pointer)
Net Weight245kg
Major DispositionsWalking drive-Eaton, USA; Electrovalve-Kangmosheng, Italy; Air compressor-Taiwan Jaguar; Cylinder-Yulik, Japan

Sweep Parameters

EngineHonda gasoline engine, OHV4 stroke air cooled, power 5.5HP
Walking Drive ModeAutomatic hydraulic continuously variable transmission
Working Speed10-15m/min
Maximum Gradability15°
Line ThicknessThe horizon: 0-3.5mm
BunkerPneumatic opening and closing, pneumatic forming
Paint Bucketcapacity 60kg*2
Double Glass Bead SpreaderAutomatic synchronous clutch sowing capacity 25kg*2
SizeLength 1.3 * width 1 * height 1.17m (not including pointer)
Net Weight245kg

Oscillation Parameters

EngineHonda gasoline engine, OHV4 stroke air cooled power 5.5HP
Working Speed10-15m/min
Line ThicknessFlat line: 0-3.5mm Block: 6.5mm high (adjustable 0-10mm)
Height of ProtrusionControlled by CPU intelligent program for any length
Width of the Line150/200/300/400/450mm (customizable) can be selected

Key Features

Innovative Design for Multi-Functional Marking

Our marking machine integrates four key marking methods—hand push, shaking, scraping, and vibration—into a single unit. This unique combination allows you to tackle different marking tasks with ease, whether you need to create deep, durable marks or fine, detailed engravings. The hand push feature provides manual control for precise marking on irregular surfaces, while the shaking and scraping functions enable efficient removal of excess material to achieve clean and sharp marks. The vibration mechanism ensures consistent marking pressure, resulting in uniform and high-quality marks every time.

High-Quality Components for Durability and Performance

We understand the importance of reliability in a production environment, which is why our marking machine is built with top-quality components. The sturdy frame and robust construction ensure long-lasting durability, even under heavy usage. The precision-engineered marking head is designed to withstand the rigors of continuous operation, maintaining its accuracy and performance over time. Additionally, the machine is equipped with advanced control systems that offer easy operation and precise adjustment of marking parameters, allowing you to customize the marking process to suit your specific needs.

User-Friendly Operation and Maintenance

Our marking machine is designed with the user in mind. The intuitive control panel makes it easy to set up and operate, even for those with limited technical experience. The machine also features a compact design that saves space in your workshop without compromising on functionality. When it comes to maintenance, our marking machine is designed for ease of service. Regular maintenance is quick and straightforward, ensuring minimal downtime and maximum productivity.

Application Scenarios

Manufacturing Industry

In the manufacturing sector, our marking machine is a game-changer. It is ideal for marking serial numbers, logos, and other identification marks on metal parts, plastic components, and various other materials. Whether you are producing automotive parts, electronic components, or mechanical devices, our machine ensures that each item is accurately marked for traceability and quality control.

Construction and Building Materials

For the construction industry, our marking machine is perfect for marking building materials such as pipes, steel beams, and concrete blocks. The hand push feature allows for easy marking on large and irregular surfaces, ensuring that each piece is clearly identified. This is crucial for inventory management, quality assurance, and compliance with industry standards.

Logistics and Packaging

In logistics and packaging, accurate marking is essential for efficient inventory management and product tracking. Our marking machine can be used to mark shipping containers, pallets, and packaging materials with barcodes, QR codes, and other identification marks. The vibration and scraping functions ensure that the marks are clear and legible.

Customized Marking Solutions

Beyond these specific industries, this machine offers customized marking solutions for a wide range of applications. Whether you need to mark tools, equipment, or other items in your workshop, our machine can be tailored to meet your unique marking needs.

Conclusion

The HW-Hand Push Shaking Scraping Vibration Integrated Marking Machine is a versatile and efficient solution for all your marking needs. With its advanced technology, user-friendly design, and wide range of applications, it is the perfect addition to any manufacturing or production environment. Invest in this innovative marking solution today and experience the difference it can make in your operations, enhancing productivity and ensuring quality.

Frequently Asked Questions

Q1: What marking methods are integrated into this machine?

The machine integrates four main marking methods: hand push, shaking, scraping, and vibration, making it a versatile tool for various surface types and marking requirements.

Q2: What type of engine powers the machine?

It is powered by a high-performance Honda gasoline engine, OHV 4-stroke air-cooled, with an output of 5.5HP.

Q3: Is the marking width adjustable?

Yes, the line width can be selected from 150, 200, 300, 400, or 450mm, and further customization is available upon request.

Q4: Can this machine handle uneven surfaces?

Yes, the hand push feature provides manual control for precise marking on irregular surfaces, while the vibration mechanism ensures consistent pressure for high-quality marks.

Q5: What are the primary applications for this marking machine?

It is widely used in the manufacturing industry (serial numbers/logos), construction (pipes/beams/concrete), and logistics (containers/pallets) for clear and durable identification.

Q6: What is the maximum gradability of the machine?

The machine is designed to handle a maximum gradability of 15°, allowing it to operate effectively on inclined terrains.
