| Parameter | Details |
|---|---|
| Paint Bucket | Double stainless steel insulated heating tank, capacity 100kg, plug-in stirring device, can be quickly disassembled and replaced paint bucket |
| Glass Microbead Storage Box | 10kg/bag |
| Glass Bead Spreader | Synchronous clutch automatic sowing (adjustable) |
| The Line-drawing Bucket | High precision integrated line drawing bucket, scraper structure, standard configuration 150mm |
| The Ground Strike | Inlaid hard alloy material (pure alloy floor knife can be selected) |
| Plastic Core-rubber-tires | The cast iron hub is made of heat-resistant rubber, and the rear wheel is equipped with a locator to make the body move forward along the straight line |
| Heating Method | Liquefied petroleum gas |
| Plastic Core-rubber-tires | The rubber wheel is specially made for wear resistance and heat, and the rear wheel is equipped with a locator to ensure that the vehicle body is directed along the straight line or turns on the curve |
| Width of Markings | 50/100/150/200/250/300/400/450 line buckets can be selected |
| Size | 1.22*0.85*1.04m |
| Weight | 105kg (this weight does not include the bucket and box) |

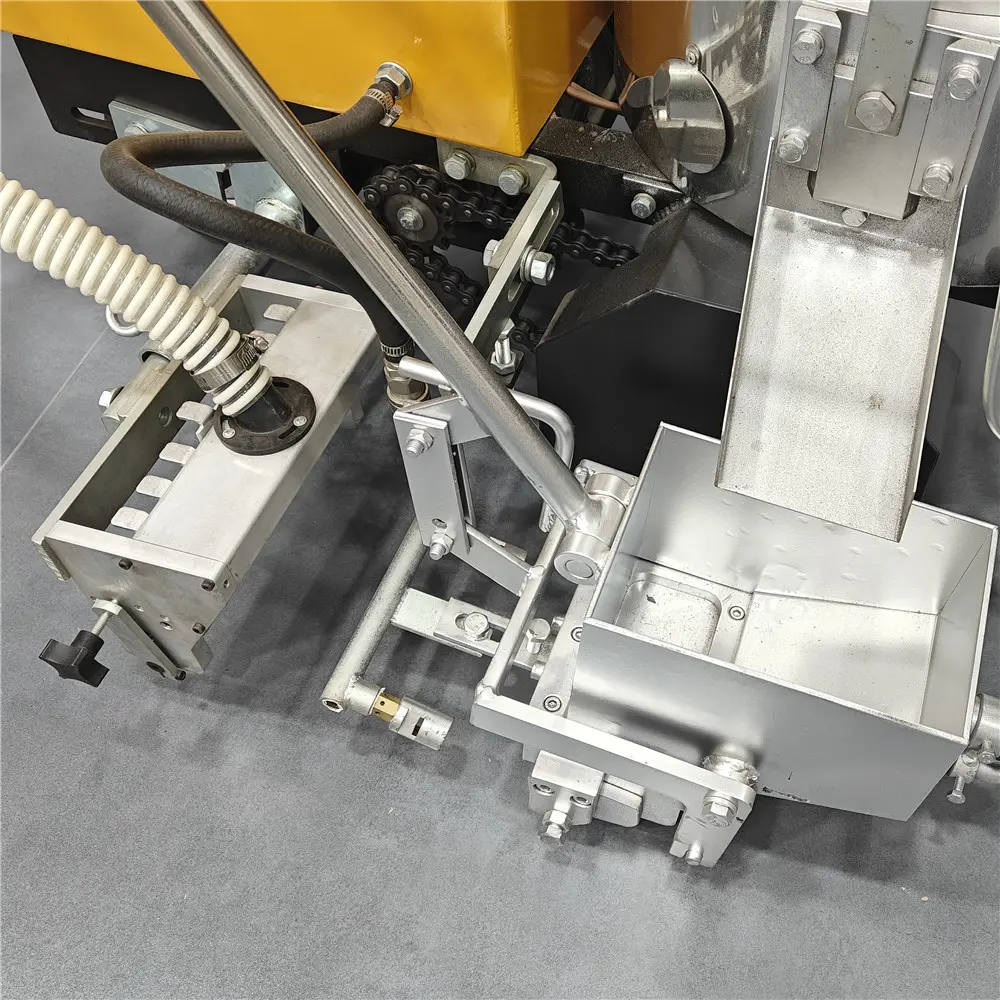

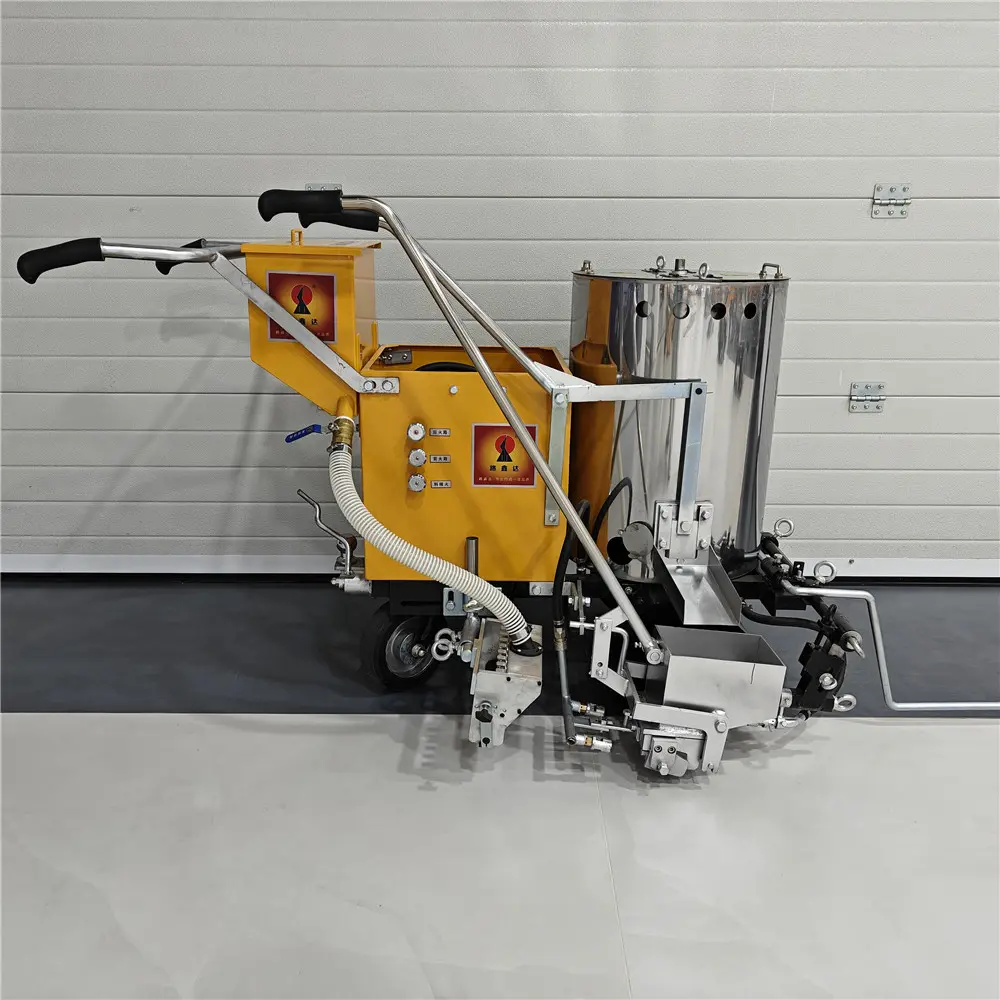

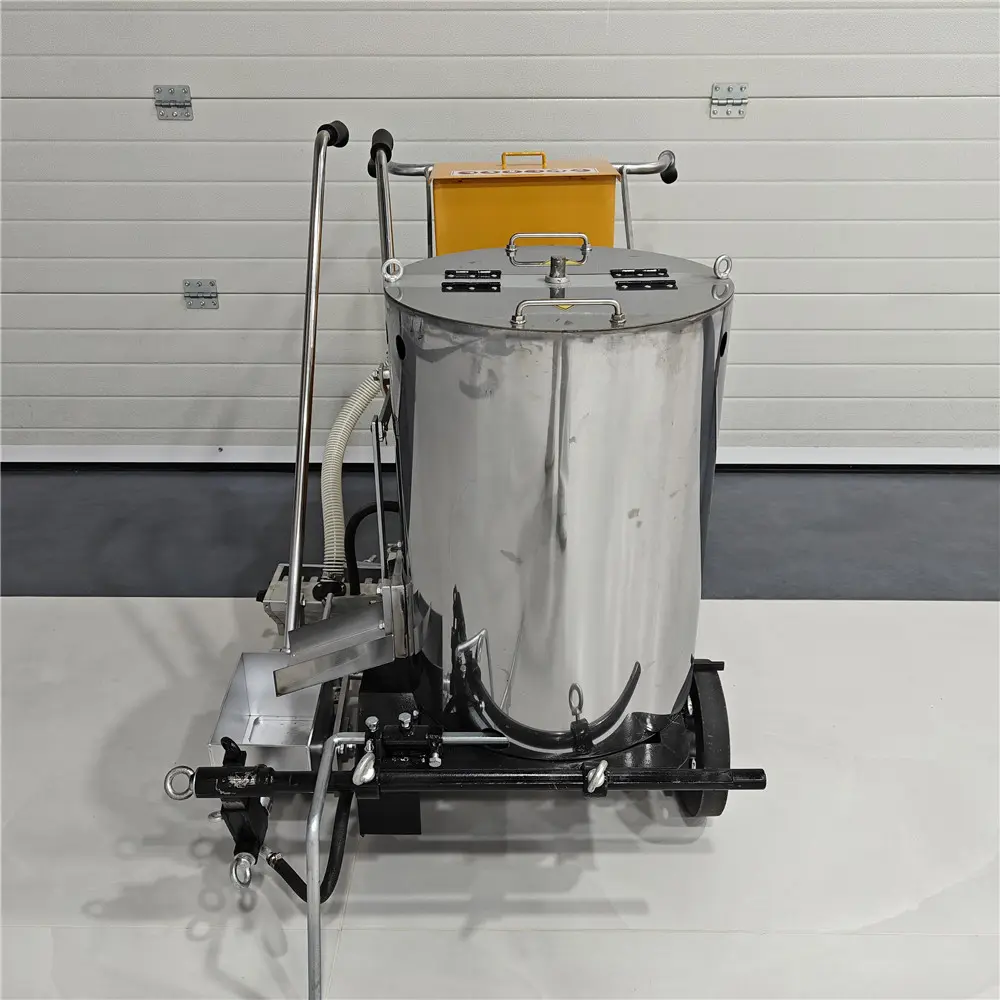

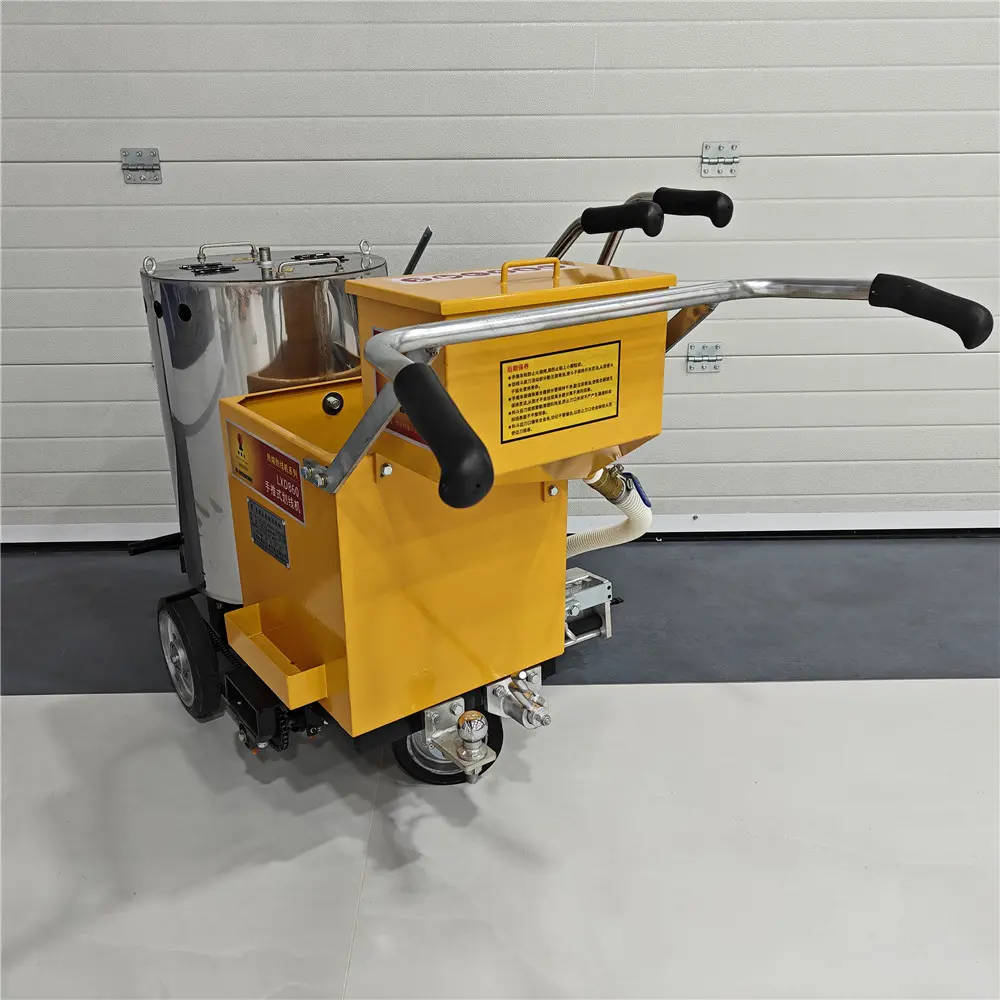

The HW-860 features a double-layer stainless steel insulated heating bucket with a capacity of 100kg, equipped with a plug-in mixing device that can be quickly disassembled and replaced. This design ensures efficient heating and mixing of thermoplastic materials. Additionally, the machine includes a high-precision integrated marking shoe, available in various widths (50/100/150/200/250/300/400/450mm), allowing for customizable marking widths to suit different project requirements.
The HW-860 is designed for ease of use, with a hand-push operation that ensures smooth and precise application of markings. The machine's synchronous clutch automatic glass bead spreader is adjustable, allowing for optimal distribution of glass beads to enhance the visibility and durability of the markings. Its cast iron wheels, made with heat-resistant rubber, ensure stable movement and straight-line marking, even in challenging conditions.
Perfectly suited for providing clear and durable lane lines, stop lines, and other traffic markings on highways. High-precision marking ensures visibility under heavy traffic.
Create professional parking spaces, directional arrows, and pedestrian paths. Its compact size and maneuverability make it ideal for tight spaces.
Used to mark temporary lanes, work zones, and warning signs. Its durability and reliability make it suitable for harsh construction environments.
Ideal for schools, factories, and residential areas. A top choice for small projects and new entrants to the road marking industry.
In summary, the HW-860 Hand Push Thermoplastic Marking Machine is a powerful and versatile tool that meets the needs of modern road marking projects. With its advanced design, user-friendly features, and high efficiency, the HW-860 is the perfect choice for professionals who demand precision and reliability. Experience the difference in quality and performance with this industrial-grade marking solution.
