| Parameter | Details |
|---|---|
| Working Speed | Rubber Removal ≥ 800 - 1000 m²/h |
| Engine | Six-cylinder engine compliant with National II emission standards. Power: 255 kW, Speed: 1500 r/min |
| Pump Speed | 500 r/min |
| Pressure | 2000 bar |
| Flow Rate | 85 L/min |
| Plunger | Cemented carbide 26 |
| High-pressure Seal | Imported high-quality pre-formed seal |
| Lubrication System | Forced Lubrication System and Oil Cooling System, High-quality Safety Burst Diaphragm |
| Monitoring Box | Includes oil/water temperature alarms, engine speed monitoring, water pressure display, and fault detection |
| Booster Pump | Front-mounted, delivering a maximum boost of 6 kg |
| Filter | Double-layer stainless-steel vertical filter with two-stage filtration |
| Water Tanks | Clean water tank: 6 T; Sewage tank: Customized to fit vehicle models |
| Fuel Tank | 250 L |
| Recovery System | Vacuum pump generating a pressure of -0.4 bar |
| Main Machine Dimensions | 3 m × 2.2 m × 2.25 m (Customizable) |
| Net Weight | 7 T (excluding carrier vehicle) |
| Category | Component | Description |
|---|---|---|

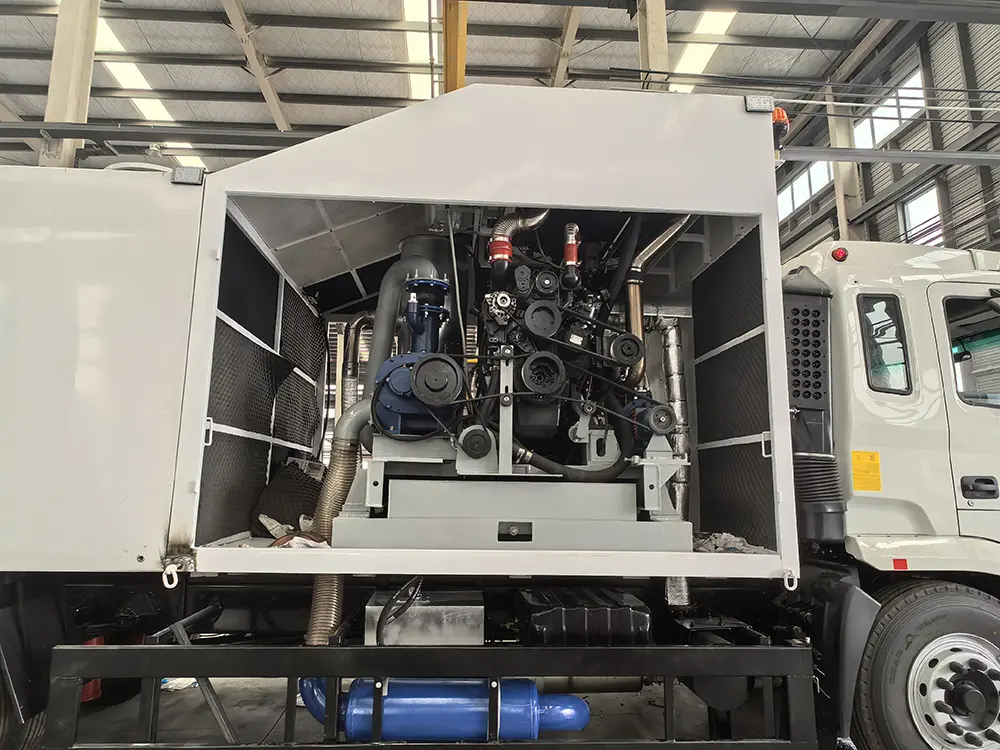

| Power System | Diesel Engine | 255KW electronically-injected engine with advanced ECU control system. |
| Pressure Components | Three-plunger Pump | 2000 bar pressure, 85 L/min flow rate, manufactured with imported materials. |
| Transmission | Elastic Coupling | Original imported elastic coupling for stable and reliable performance. |

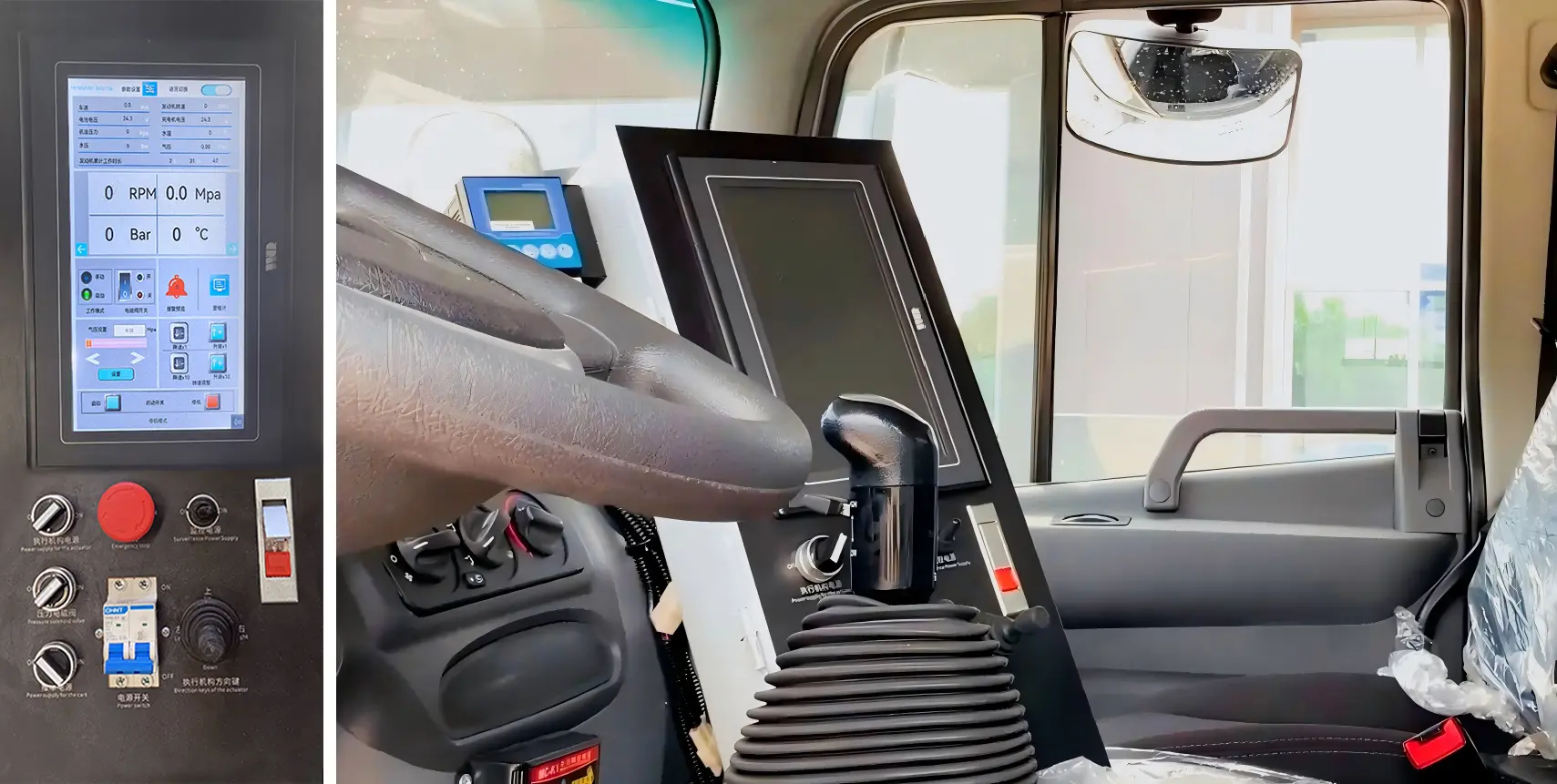

| Control System | Control Cabinet | Custom-fabricated with IP65 protection rating and user-friendly operation. |

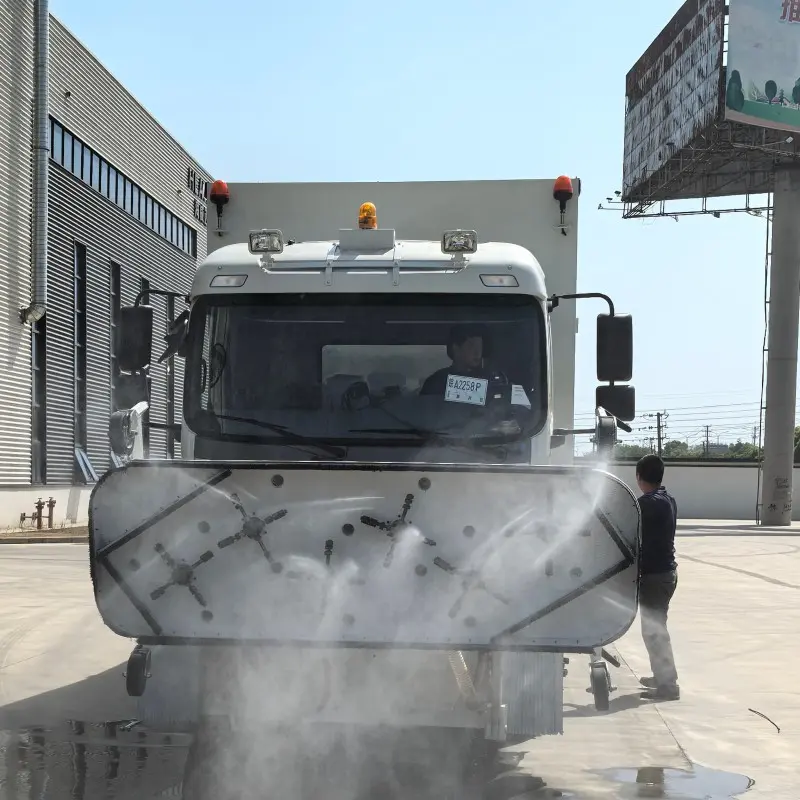

| Actuator | Rubber Removal Head | 1m working width, 48 nozzles, stainless steel body, 1500-2000 RPM. |
| Recovery | Vacuum Pump | SSR technology capable of generating -0.4 bar recovery pressure. |
| Gear Mode | Engine Speed | Travel Speed |
|---|---|---|
| High-speed Gear (First) | Idle 770 r/min | 75 m/min |
| Low-speed Gear (First) | Idle 770 r/min | 3 ± 0.1 m/min |
| Low-speed Gear (First) | 1000 r/min | 4 ± 0.1 m/min |
| Low-speed Gear (First) | 1500 r/min | 5.8 ± 0.1 m/min |
