Buy HW-900 Road Marking Removal Machine: Powerful and Efficient Solution for Road Maintenance Manufacturers, Supplier

The design concept and manufacturing process of the 900 hot melt cold paint dual-purpose old line removal machine are first-class. Its working principle is based on the percussion and grinding technology of the plane centripetal force. The cutter head moves flexibly on the cutter shaft. When the machine rotates at high speed, the cutter head will generate a strong centripetal force, and then vigorously hammer the surface of the marking to be removed, thereby achieving the purpose of removing the old line. The significant advantage of this removal machine is that its cutter head does not have a hard contact with the surface to be processed, so the damage to the processed surface is minimal, which is very suitable for the removal of old lines of hot melt cold paint markings. It not only has high working efficiency, but also has low damage to the surface. At the same time, due to its simple design, it is relatively easy to maintain.

Product Description

Technical Parameters

Engine9HP Japanese Honda gasoline engine
Excluding Line Width220mm
Remove Line Depth0-4mm
Speed3600r/min
Number of Mill Head Shafts4 axes (axes treated with special materials)
Speed of Removal500m²-700m²/day
Knife Blade LifeAbout 3000m²
Size0.97*0.6*1m
Weight115kg

Key Features

High-Power Removal Technology

The HW-900 Road Marking Removal Machine is equipped with high-power removal technology that ensures quick and efficient removal of road markings. Using a combination of mechanical and thermal processes, it removes paint without damaging the road surface.

User-Friendly Design

Features an ergonomic design for easy operation and maneuverability. The control panel is intuitive, and its compact size/lightweight build makes it easy to transport and set up in tight spaces.

Durable and Reliable

Constructed with high-quality materials to withstand daily use in various weather conditions. Its robust build ensures long-lasting performance and minimal maintenance requirements.

Cost-Effective Solution

High efficiency reduces labor costs by completing jobs faster. Minimal maintenance needs lower operational costs, making it an economical choice for all maintenance projects.

Advanced Safety Features

Includes safety guards, emergency stop buttons, and low noise levels to protect operators and ensure a safe, comfortable working environment.

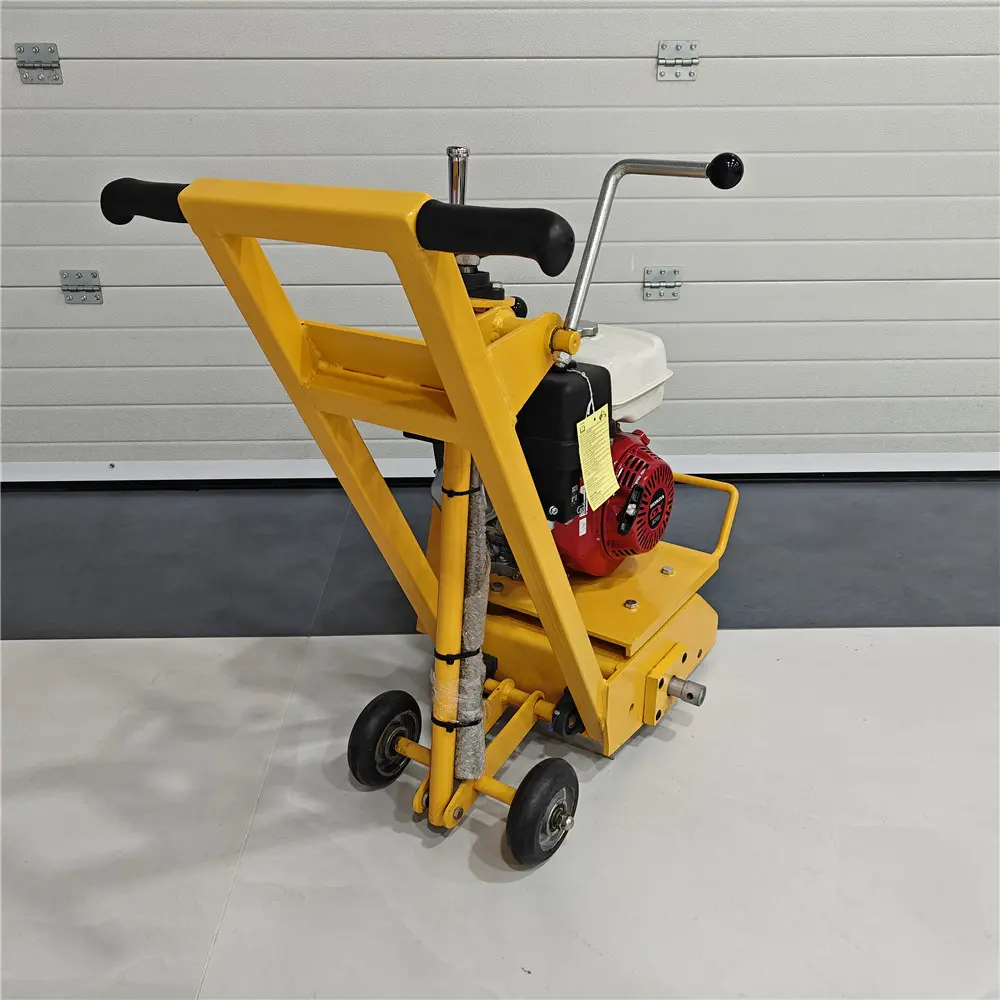

HW-900 Machine

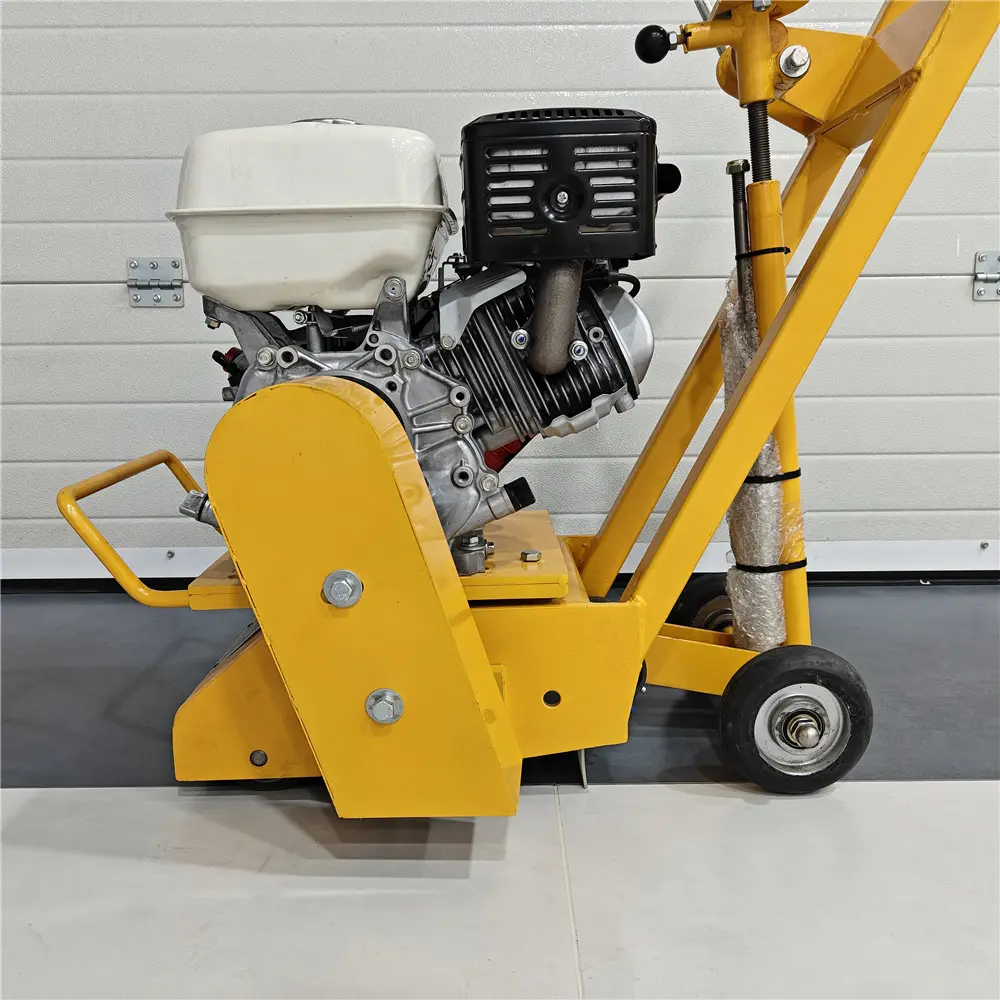

Road Removal Detail

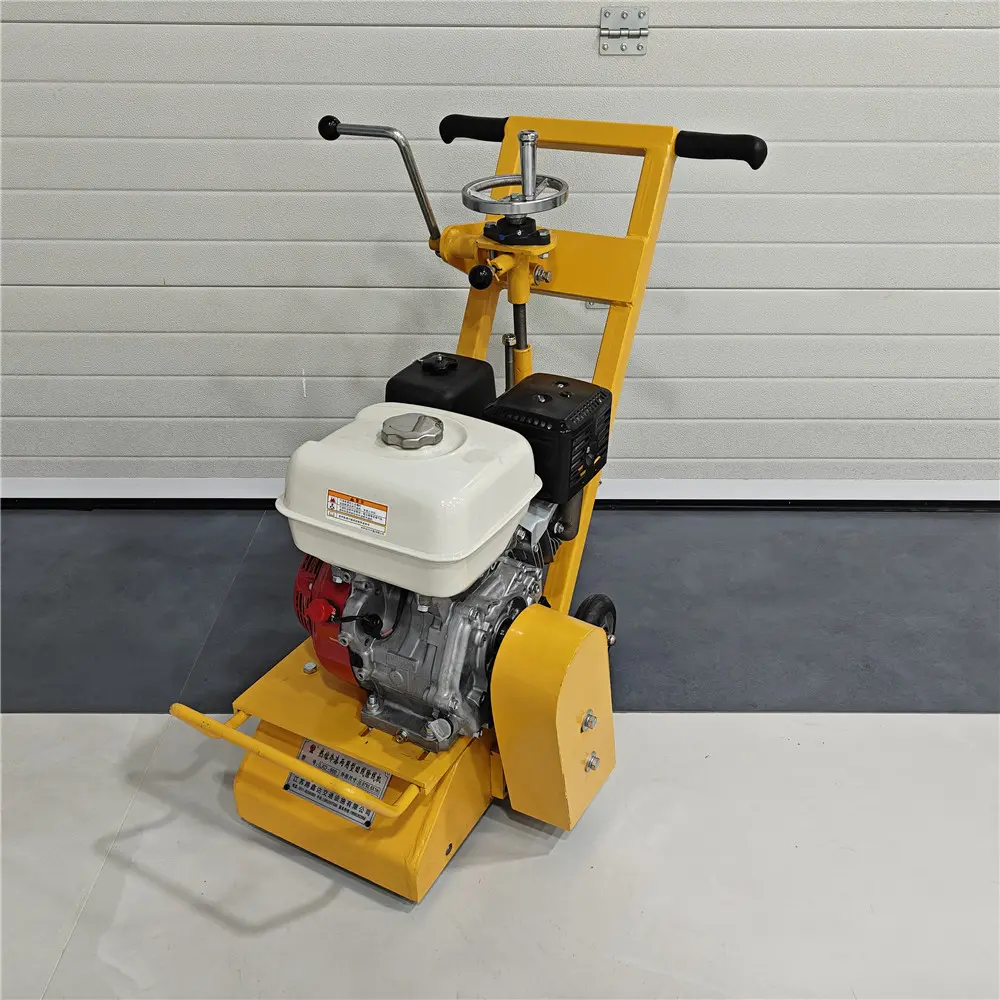

HW-900 Equipment

Application Scenarios

Road Maintenance

Efficiently removes old markings for lane repainting and traffic sign updates, reducing the time and effort for municipal projects.

Construction Sites

Clears existing markings to accommodate new infrastructure without damaging road surfaces. Ideal for tight construction zones.

Airport Runways

Designed for the precise requirements of airports, minimizing disruptions to operations by updating markings quickly.

Parking Lots

Perfect for property managers looking to improve safety and organization by removing faded parking lines.

Conclusion

The HW-900 Road Marking Removal Machine is a powerful and efficient solution for road maintenance. With its Honda engine, user-friendly design, and durable construction, it ensures road markings are removed quickly and safely across airports, parking lots, and urban roadways, contributing to a safer transportation environment.

Frequently Asked Questions

What engine powers the HW-900?
The HW-900 is equipped with a high-performance 9HP Japanese Honda gasoline engine.
How much area can it clear in a single day?
The machine features a removal speed of approximately 500m² to 700m² per day.
What is the lifespan of the removal blades?
The high-quality knife blades typically last for about 3000m² of removal work.
Can the removal depth be adjusted?
Yes, the HW-900 allows for precision removal with a depth range of 0-4mm.
Is it suitable for use on airport runways?
Absolutely. Its high precision and efficient technology make it ideal for the demanding standards of airport runways and taxiways.
Does the machine damage the road surface?
No, the combination of mechanical and thermal processes is designed to remove marking materials efficiently without compromising the integrity of the road.
