| Parameter | Details |
| Motive Power | Longxin 30hp gasoline engine |
| Oil Wear | 2-3L/H (with 95# gasoline) |
| Speed | 3600r/min |
| Excluding Line Width | 26cm |
| Remove Line Depth | Adjust according to the need and ground condition, generally no more than 1mm (0-3mm) per adjustment |
| Speed of Removal | About 1000-2000m²/day |
| Knife Blade Life | 200,000 m²/100,000 m²/10,000 m² |
| Size | 1.5*0.725*1.15m |
| Weight | The bare machine weighs 210kg |
| Grinding Head Options |
Polymerized: 33kg (3 blades/piece) set of 13 pieces Welding alloy: 35kg (9 edges/piece) set of 13 pieces All alloy: 33kg (12 edges/piece), 42 pieces |
Features an advanced dust recycling system that captures and recycles dust generated during the removal process. This reduces environmental impact and ensures a cleaner, safer worksite for operators.
Equipped with state-of-the-art technology using mechanical and thermal processes to remove paint without damaging road surfaces. Handles large areas quickly, reducing downtime.
Ergonomic design for easy maneuverability. Features an intuitive control panel, compact size, and lightweight build for easy transport and setup in tight spaces.
Constructed with high-quality materials to withstand daily use in various weather conditions. Ensures long-lasting performance with minimal maintenance requirements.

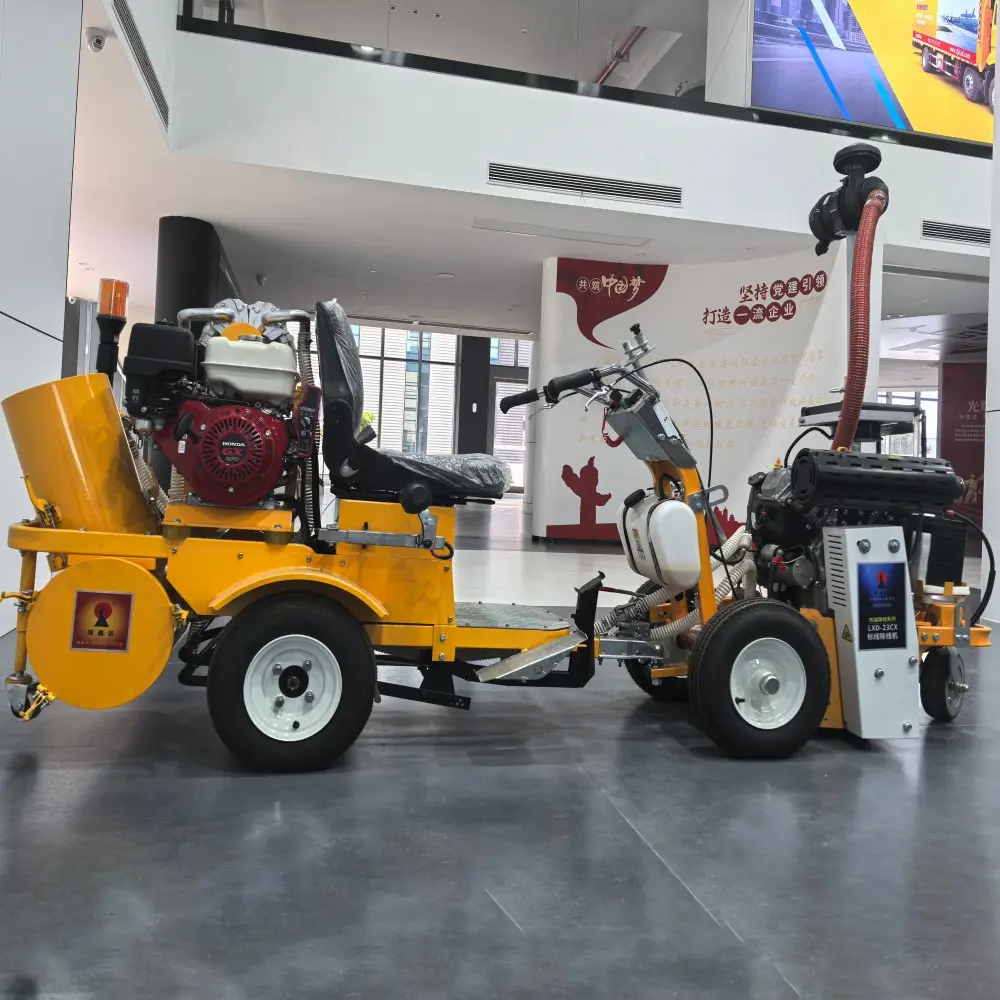

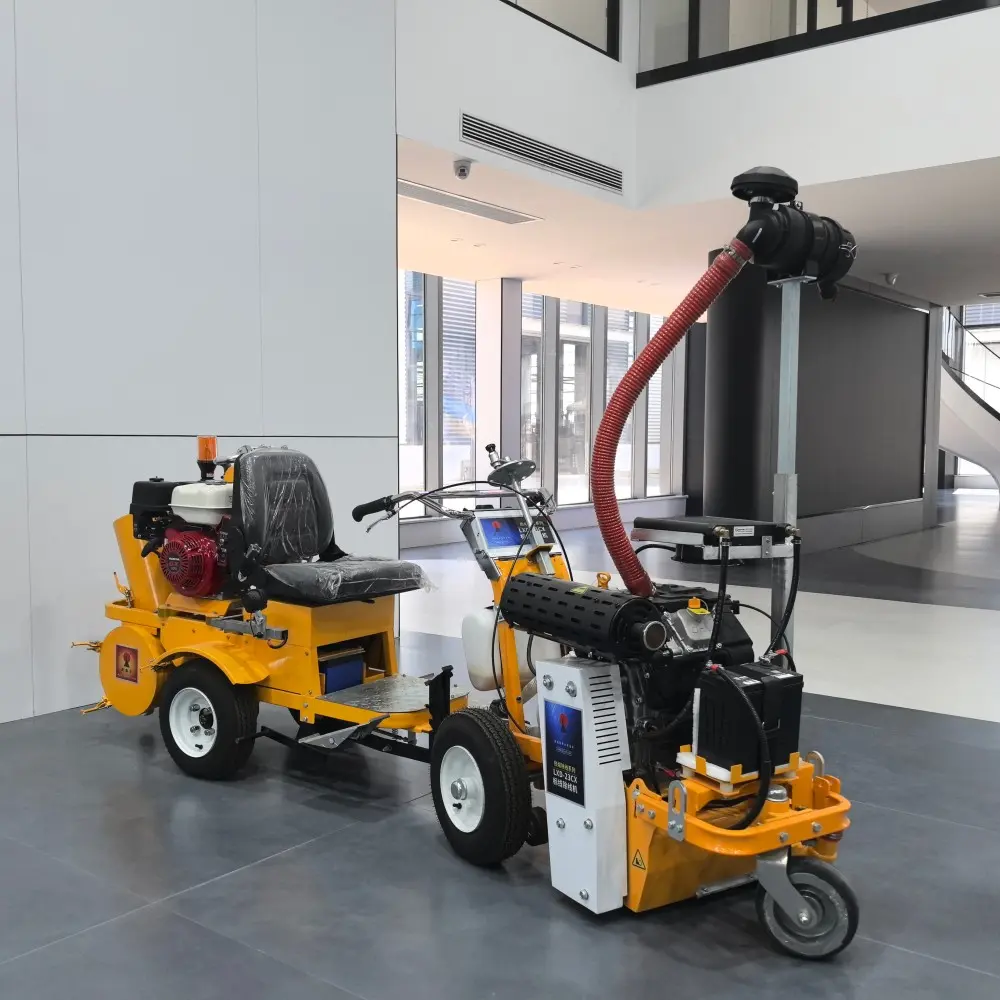

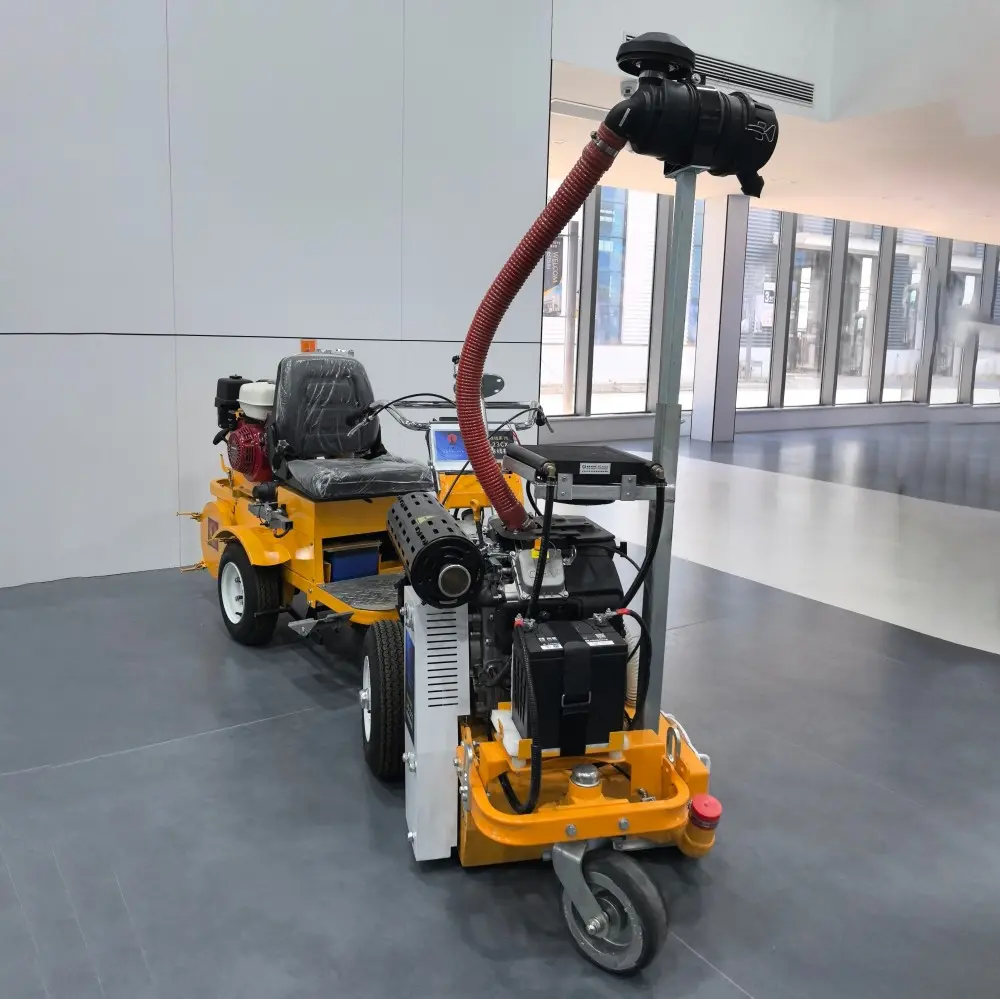

The HW-23CX Road Marking Removal Machine is an efficient, eco-friendly, and cost-effective solution for modern road maintenance. With its advanced recycling system and high-efficiency technology, it ensures markings are removed safely across airports, construction sites, and urban roadways, contributing to a safer transportation environment.
